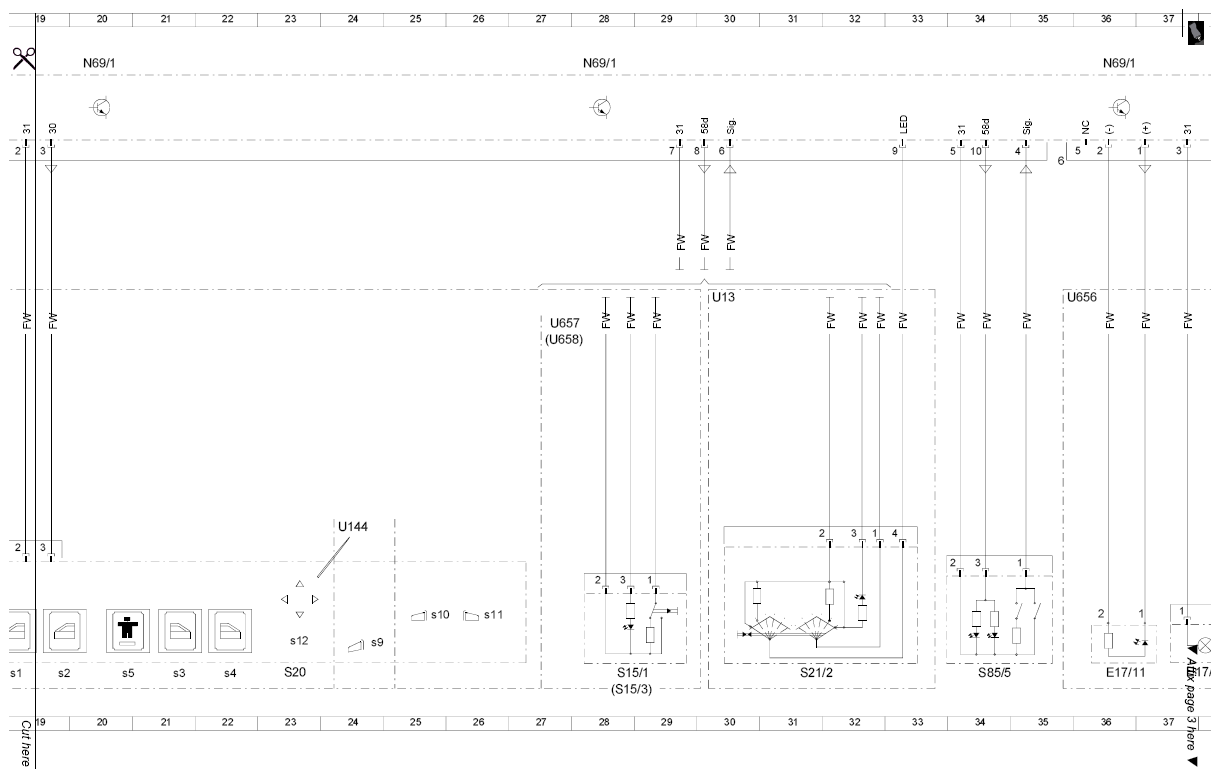

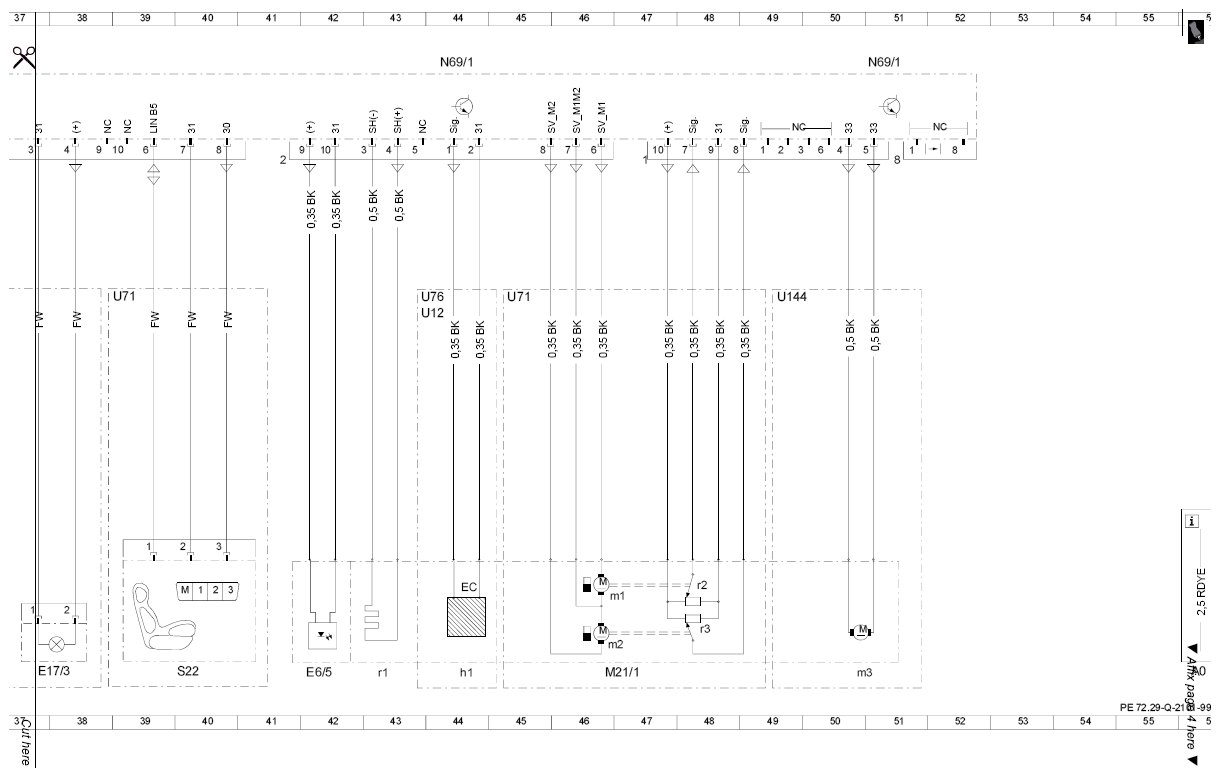

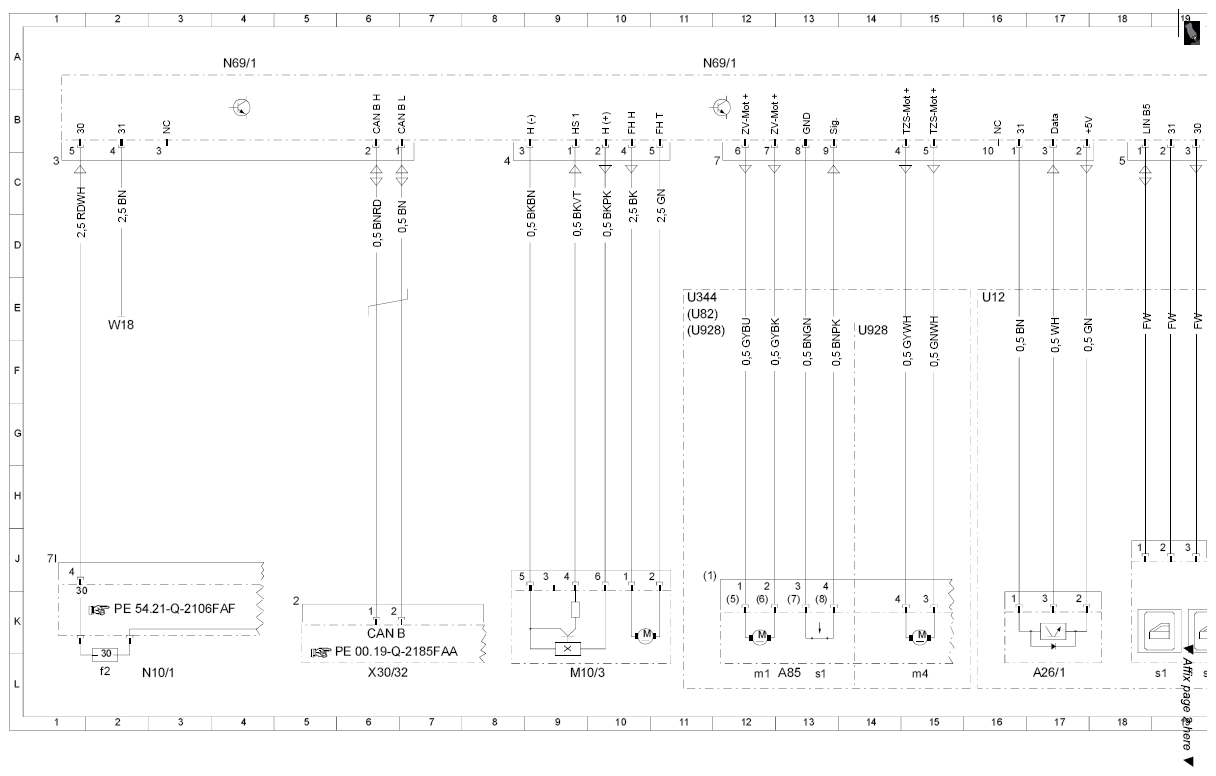

Wiring diagram for left front door control unit (DCU) - PE72.29-P-2101-99FAA
MODEL 204.0 /2 /3 /9 control unit N69/1
| Code: | Designation: | Position: |
|---|---|---|

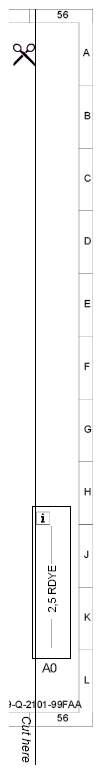

| A0 | Explanation of color codes | 56L |
| A26/1 | Driver-side front door infrared remote control receiver | 17L |
| A85 | Left front door lock | 13L |
| CANB | Interior CAN | 6K |
| E17/11 | Left front door handle illumination | 36L |
| E17/3 | Left front door exit and warning lamp | 37L |
| E6/5 | Left exterior mirror turn signal lamp | 41L |
| LINB5 | Left door LIN | 18B |
| LINB5 | Left door LIN | 39B |
| M10/3 | Left front door power window motor | 9L |
| M21/1 | Left outside mirror | 46L |
| M21/1M | Automatic dimming mirror | 44L |
| M21/1m1 | Vertical inclination adjustment actuator motor | 46K |
| M21/1m2 | Horizontal inclination adjustment actuator motor | 46L |
| M21/1m3 | Outside mirror fold-in/fold-out electric motor | 50L |
| M21/1M | Mirror heater | 42L |
| M21/1r2 | Vertical inclination adjustment potentiometer | 47K |
| M21/1r3 | Horizontal inclination adjustment potentiometer | 47K |
| N10/1 | Front SAM control module with fuse and relay module | 2L |
| N10/1f2 | Fuse 2 | 1L |
| N69/1 | Left front door control unit | 4A |
| N69/1 | Left front door control unit | 11A |
| N69/1 | Left front door control unit | 20A |
| N69/1 | Left front door control unit | 28A |
| N69/1 | Left front door control unit | 36A |
| N69/1 | Left front door control unit | 44A |
| N69/1 | Left front door control unit | 50A |
| S15/1 | Trunk lid release button | 30L |
| S15/3 | Driver tailgate control button | 30L |
| S20 | Driver-side power window and outside mirror adjustment switch group | 23L |
| S20s1 | Left front power window switch | 18L |
| S20s10 | Left outside mirror adjustment switch | 25K |
| S20s11 | Right outside mirror adjustment switch | 26K |
| S20s12 | Outside mirror adjustment switch | 23K |
| S20s2 | Right front power window switch | 19L |
| S20s3 | Left rear power window switch | 21L |
| S20s4 | Right rear power window switch | 22L |
| S20s5 | Rear side window child safety lock switch | 20L |
| S20s9 | Outside mirror fold-in/fold-out switch | 24L |
| S21/2 | Passenger-side power window switch | 33L |
| S22 | Left front seat adjustment switch group | 39L |
| S85/5 | Left front door central locking interior switch | 27L |
| U12 | Valid for left-hand steering | 16E |
| U12 | Valid for left-hand steering | 43E |
| U13 | Valid for right-hand steering | 32E |
| U144 | Valid for outside mirror fold-in/out function. | 24J |
| U144 | Valid for outside mirror fold-in/out function. | 49E |
| U344 | Valid for all except KEYLESS GO | 11E |
| U656 | Valid for interior lights package | 35E |
| U657 | Valid for trunk lid release | 29E |
| U658 | Valid for tailgate control | 29F |
| U71 | Valid for fully electric seat adjustment with memory function | 38E |
| U71 | Valid for fully electric seat adjustment with memory function | 45E |
| U76 | Valid for entrance/exit lamps | 43E |
| U82 | Valid for KEYLESS GO | 11E |
| U928 | Valid for England | 11F |
| U928 | Valid for England | 14F |
| W18 | Left front seat crossmember ground point | 2E |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 6L |
