Remove/install front door control unit - AR72.29-P-1000CW

MODEL 204, 207, 212

MODIFICATION NOTES

2.3.10

This document has been replaced by a document with an increased number of illustrations

			AH54.00-P-0001-01A
			OV00.01-P-1901-07A
1	Buffer basic data for left front door control unit (N69/1) or right front door control unit (N69/2) in STAR DIAGNOSIS	When replacing left front door control unit (N69/1) or right front door control unit (N69/2). Installation  : Transfer buffered basic data to new left front door control unit (N69/1) or right front door control unit (N69/2).
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A

Shown on model 204

Fig 1: Identifying Front Door Control Unit Remove/Install Components (1 Of 7)

Courtesy of MERCEDES-BENZ USA

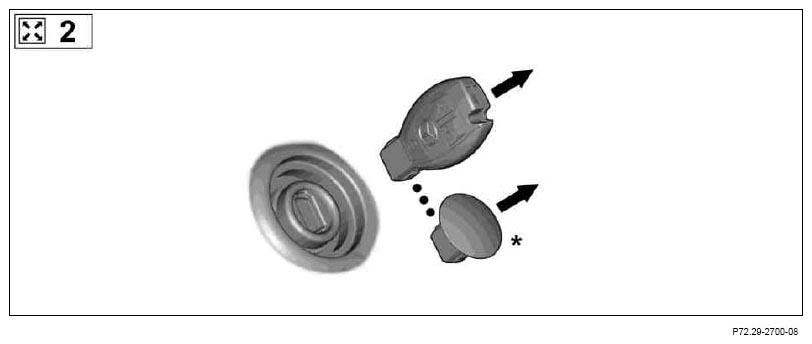

Fig 2: Identifying Front Door Control Unit Remove/Install Components (2 Of 7)

Courtesy of MERCEDES-BENZ USA

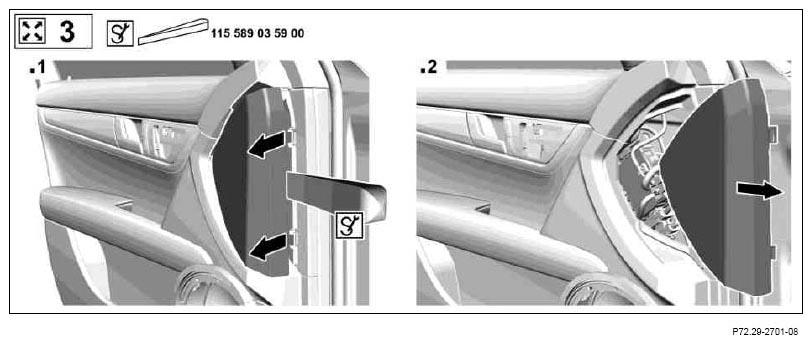

Fig 3: Identifying Front Door Control Unit Remove/Install Components (3 Of 7)

Courtesy of MERCEDES-BENZ USA

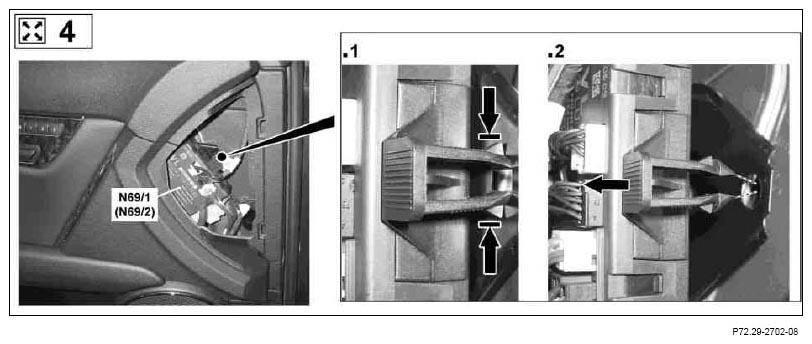

Fig 4: Identifying Front Door Control Unit Remove/Install Components (4 Of 7)

Courtesy of MERCEDES-BENZ USA

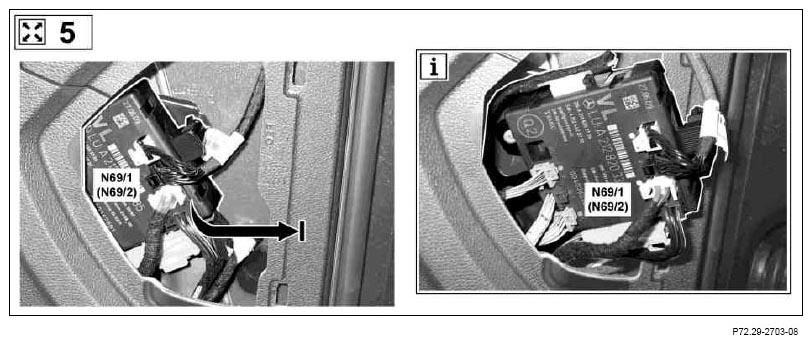

Fig 5: Identifying Front Door Control Unit Remove/Install Components (5 Of 7)

Courtesy of MERCEDES-BENZ USA

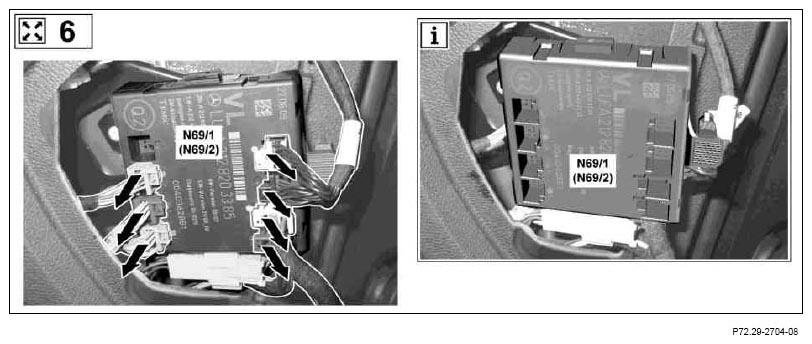

Fig 6: Identifying Front Door Control Unit Remove/Install Components (6 Of 7)

Courtesy of MERCEDES-BENZ USA

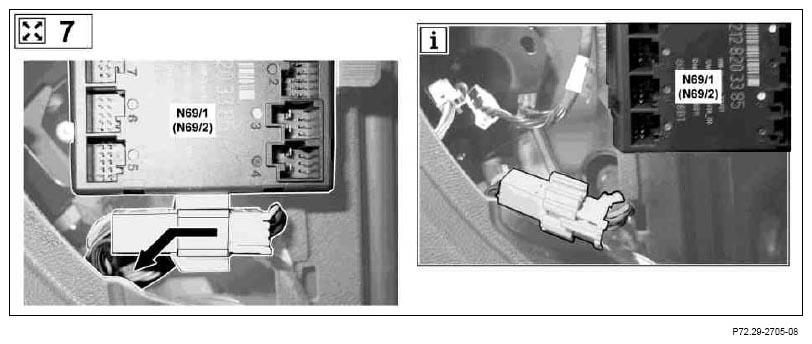

Fig 7: Identifying Front Door Control Unit Remove/Install Components (7 Of 7)

Courtesy of MERCEDES-BENZ USA

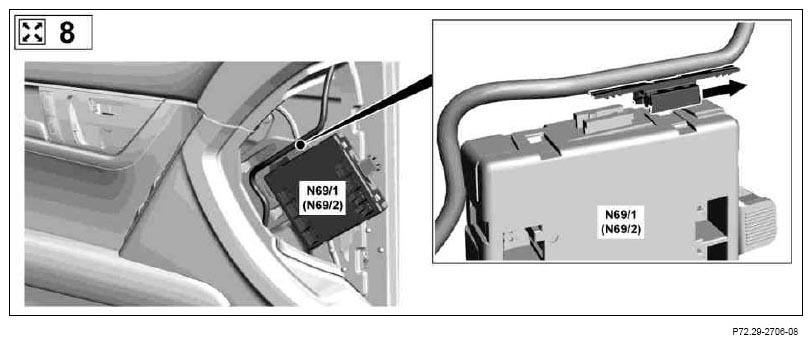

8 to 1
