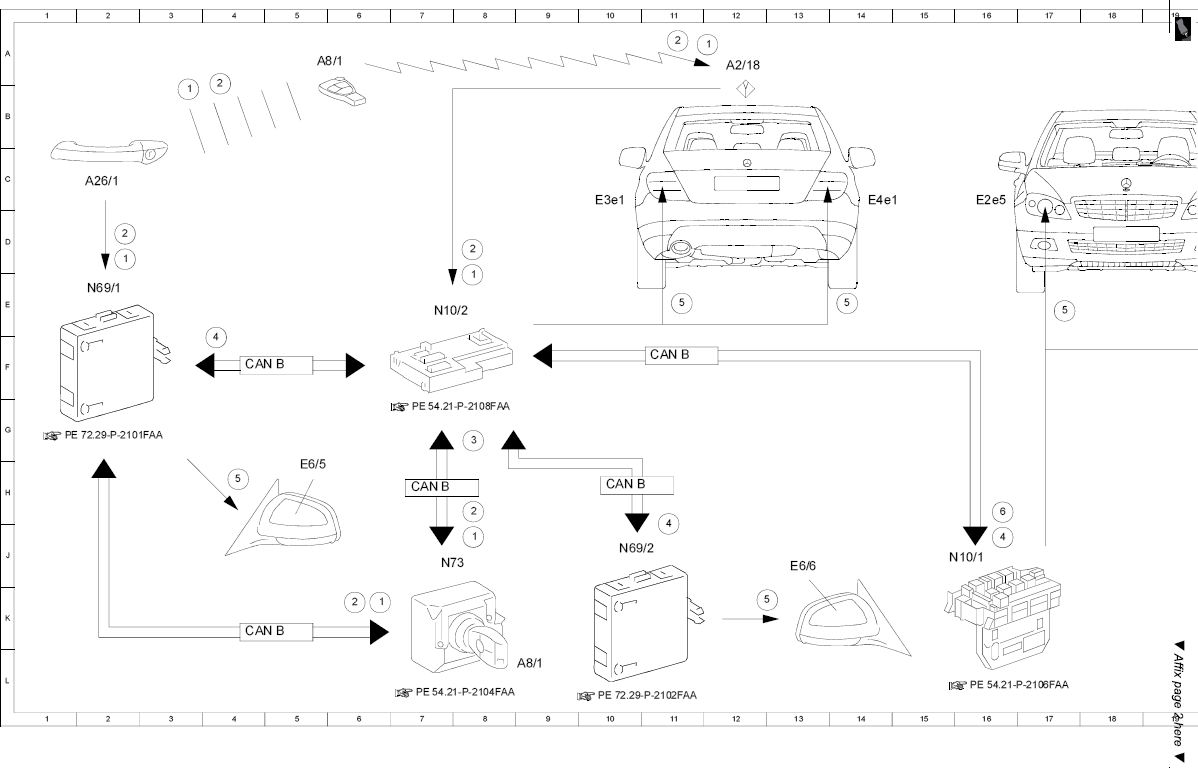

Electrical function schematic for anti-theft alarm system, alarm actuation by panic switch - PE80.50-P-2054-99FAA
MODEL 204 with CODE (763) Radio remote control with panic switch up to model year 08 /YoM 07
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Access authorization code, signal | 2 D |
| 1 | Access authorization code, signal | 3 B |
| 1 | Access authorization code, signal | 6 K |
| 1 | Access authorization code, signal | 8 E |
| 1 | Access authorization code, signal | 8 J |
| 1 | Access authorization code, signal | 11 A |
| 2 | Panic alarm, signal | 2 D |
| 2 | Panic alarm, signal | 4 B |
| 2 | Panic alarm, signal | 6 K |
| 2 | Panic alarm, signal | 8 D |
| 2 | Panic alarm, signal | 8 H |
| 2 | Panic alarm, signal | 11 A |
| 3 | Panic alarm, status | 8 G |
| 4 | Flasher frequency, signal | 4 F |
| 4 | Flasher frequency, signal | 11 J |
| 4 | Flasher frequency, signal | 16 J |
| 5 | Turn signal lamp, actuation | 4 H |
| 5 | Turn signal lamp, actuation | 11 E |
| 5 | Turn signal lamp, actuation | 12 K |
| 5 | Turn signal lamp, actuation | 14 E |
| 5 | Turn signal lamp, actuation | 17 E |
| 5 | Turn signal lamp, actuation | 20 E |
| 6 | Interior lamp, request | 16 H |
| A2/18 | FM, AM and CL [ZV] antenna amplifier | 12 A |
| A26/1 | Driver-side front door infrared remote control receiver | 2 C |
| A8/1 | Transmitter key | 5 A |
| A8/1 | Transmitter key | 9 L |
| CAN B | Interior CAN | 4 K |
| CAN B | Interior CAN | 4 F |
| CAN B | Interior CAN | 7 H |
| CAN B | Interior CAN | 10 H |
| CAN B | Interior CAN | 11 F |
| E1e5 | Left front turn signal lamp | 20 D |
| E2e5 | Right front turn signal lamp | 16 D |
| E3e1 | Left rear turn signal lamp | 10 D |
| E4e1 | Right rear turn signal lamp | 14 D |
| E6/5 | Left outside mirror turn signal lamp | 5 H |
| E6/6 | Right outside mirror turn signal lamp | 13 J |
| N10/1 | Front SAM control unit with fuse and relay module | 15 J |
| N10/2 | Rear SAM control unit with fuse and relay module | 7 E |
| N69/1 | Left front door control unit | 2 E |
| N69/2 | Right front door control unit | 10 J |
| N73 | Electronic ignition switch control unit | 7 J |
