Anti-theft alarm system (ATA [EDW]), block diagram - GF80.50-P-0001-01CW

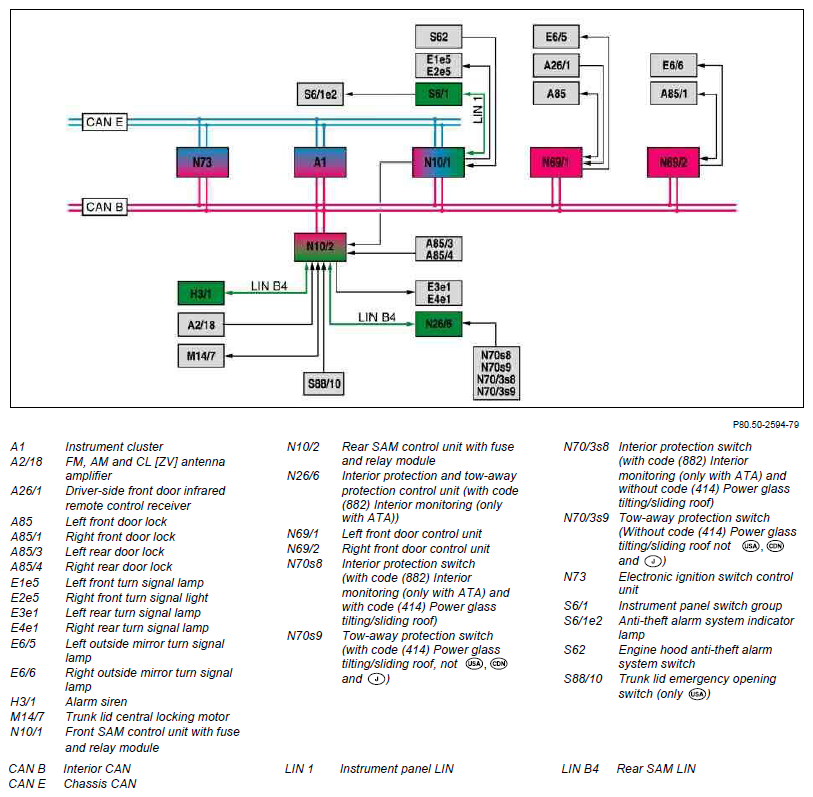

Fig 1: Anti-Theft Alarm System Block Diagram

G07531884

Courtesy of MERCEDES-BENZ USA
