Clean water deflector - AP82.35-P-8232A

MODEL 204, 207, 212, 218

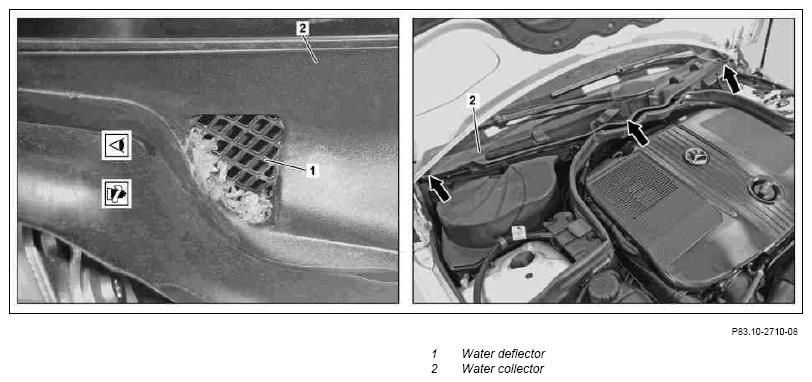

Fig 1: Identifying Water Deflector And Water Collector

Courtesy of MERCEDES-BENZ USA

Shows model 204

	Clean
1	Open engine hood	Model 207, 212 Model 204, 218	AR88.40-P-1000EW
2	Check left, center and right water drain (1) in water deflector (2) for contamination, clean if necessary
3	Close engine hood	Model 207, 212 Model 204, 218	AR88.40-P-1000EW
