Check setting of windshield washer system spray nozzles - AP82.35-P-8252-01CWX
| AP82.35-P-8252-01CWX | Check setting of windshield washer system spray nozzles | ||
| Risk of fire and explosion caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin. | Wear protective clothing and tight fitting safety glasses. No fire, open light or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of children's reach only. | AS82.35-Z-0001-01A |
TEST AND ADJUSTMENT VALUES FOR WINDSHIELD WASHER SYSTEM
| Number | Designation | Model 204.0/2 as of 01.08.08, Model 204.3/9 | ||
|---|---|---|---|---|
| BE82.35-P-1001-01A | Adjustment dimension of spray nozzles for windshield washer system | XL1 | mm | 100 |
| YL1 | mm | 385 | ||
| XL2 | mm | 550 | ||
| YL2 | mm | 310 | ||
| XM1 | mm | 340 | ||
| YM1 | mm | 340 | ||
| XM2 | mm | 815 | ||
| YM2 | mm | 380 | ||
| XR1 | mm | 640 | ||
| YR1 | mm | 370 | ||
| XR2 | mm | 155 | ||
| YR2 | mm | 330 | ||
| See picture | AP82.35-P-8252-01CWX | |||
- Check adjustment of spray nozzles of windshield washer system, if necessary remove covers and adjust spray nozzles
with adjusting tool.
Do not damage paintwork of engine hood!

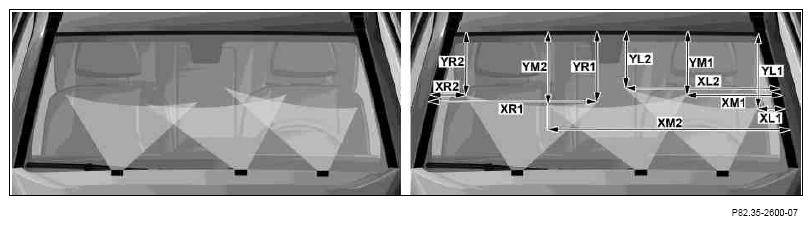

The conical atomized spray jets must strike the windshield in the marked area.
in x = edge of left or right water repellent,
in Y = upper edge of windshield frame.
