Check setting of windshield washer system spray nozzles - AP82.35-P-8252-01CW

AP82.35-P-8252-01CW  Check setting of windshield washer system spray nozzles
DANGER Risk of fire and explosion  caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning  caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury  or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin. Wear protective clothing and tight fitting safety glasses. No fire, open light or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of children's reach only. AS82.35-Z-0001-01A

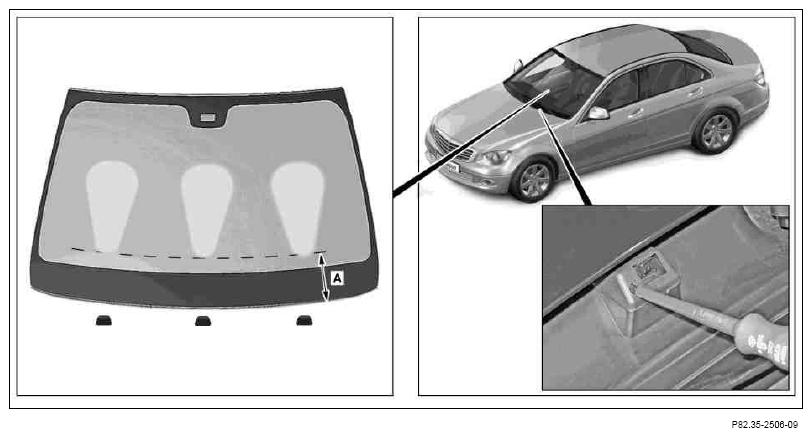

Fig 1: Identifying Windshield Washer System Spray Nozzles Setting
G07528477Courtesy of MERCEDES-BENZ USA
  1. Check windshield washer system spray nozzle settings, correct if necessary using a screwdriver.

    NOTES Do not damage paintwork of engine hood!

    IMPORTANT The conical atomized spray jets must strike the windshield in the marked area.

    IMPORTANT Dimension A: approx. 150 mm.
