Adjust or check front fog lights - AP82.10-P-8260-04CW

Shown on model 204.0

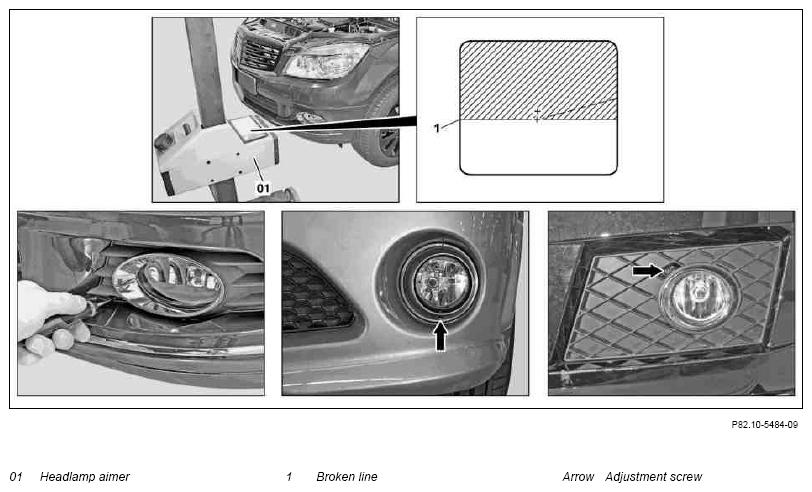

Fig 1: Adjusting/Checking Front Fog Lights

Courtesy of MERCEDES-BENZ USA

The light-dark boundary of the light beam must be horizontal at the height of the separating line (1) in the headlamp aimer (01).

1. If necessary, correct front fog lights setting.

   Model 204.077/277: Use Torx T15.

   Except model 204.077/277: Use screwdriver.
