Radio display emergency unlocking - AR82.60-P-7723CW

MODEL 204.0 /2 up to model year 2012 with CODE (527) COMAND APS with single DVD drive (with navigation) with CODE (512) COMAND APS with DVD changer /YoM 11

Shown on removed Audio/COMAND display (A40/8)

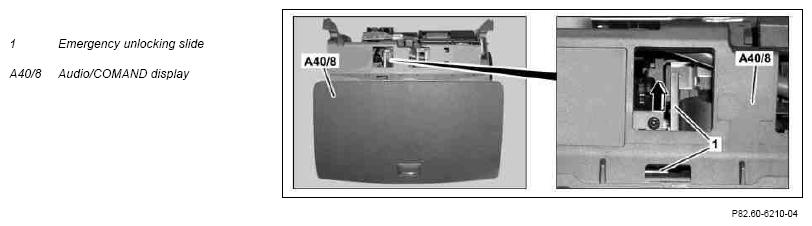

Fig 1: Identifying Emergency Unlocking Slide And Audio/COMAND Display

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Opening the Audio/COMAND display (A40/8) using emergency unlocking		AR82.60-P-7723-01CW
1		Pulling hook	Fig 2
2	Lock Audio/COMAND display (A40/8)	If the previously unlocked Audio/COMAND display (A40/8) is reinstalled. A defective and unlocked Audio/ COMAND display (A40/8) cannot be locked again when it is installed. If the unlocked Audio/COMAND display (A40/8) can be opened and closed again automatically, e.g. because an external fault occurred, the Audio/COMAND display (A40/8) must be connected to the wiring harness and electrically closed before being reinstalled. Then push the emergency unlocking slide (1) forward fully in the direction of the arrow and electrically open the Audio/COMAND display (A40/8). The Audio/COMAND display (A40/8) can now be reinstalled.

Fig 2: Identifying Pulling Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
