Remove/install trim strip on dashboard - AR68.10-P-1180CW

MODEL 204.0 /2 as of model year 2012 /YoM 11

MODEL 204.3

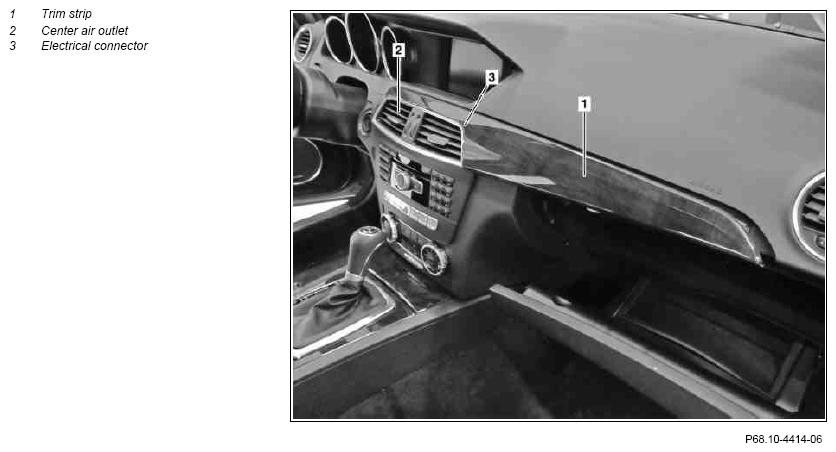

Fig 1: Identifying Dashboard Trim Strip, Center Air Outlet And Electrical Connector

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Unclip trim strip (1) together with center air vent (2) and remove	Mounting wedge	Fig 2
2	Disconnect electrical connector (3)
3	Separate center air vent (2) from trim strip (1)	Only when replacing trim strip.
4	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
