Remove/install rear ashtray - AR68.20-P-2230EW

MODEL 212

Shown with code (581) Comfort automatic air conditioning and with code (279) Electronic drive selection stage

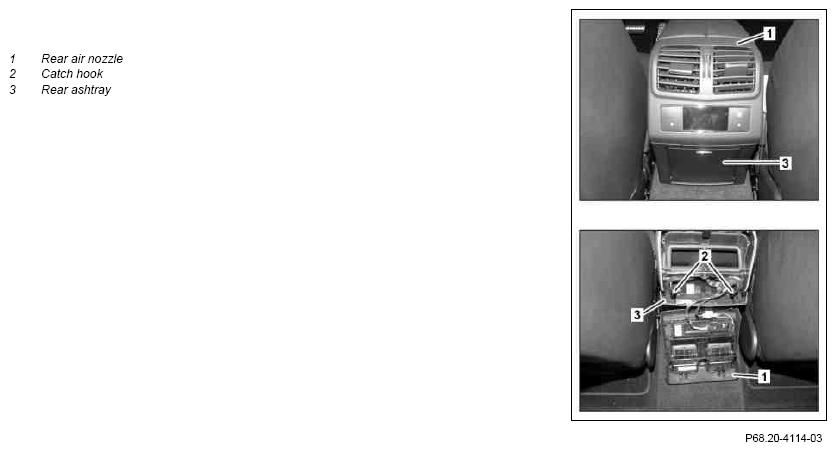

Fig 1: Identifying Rear Air Nozzle, Catch Hook And Rear Ashtray

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove rear air vent (1)	Do not separate the electrical connectors.	AR83.10-P-4800CW
2	Unclip catch hook (2) from rear ashtray (3)
3	Remove rear ashtray (3) upward
4	Disconnect electrical connector from rear center console socket
5	Install in the reverse order
