Remove/install paneling on A-pillar - AR68.30-P-4050CW

MODEL 204.0 /2 /3

Illustrated on model 204.0

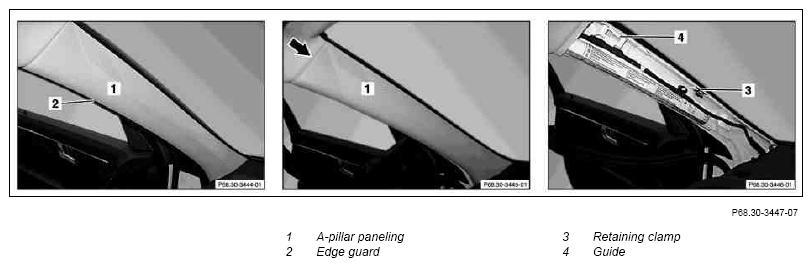

Fig 1: Identifying A-Pillar Paneling, Edge Guard, Retaining Clamp And Guide

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Note on function reliability of windowbag		AH91.60-P-0693-01A
1	Remove edge guard (2) in area of A-pillar paneling (1)
2	Press off A-pillar paneling (1)	Move mounting wedge directly to retaining clamp (3) and press off; do not damage window bag.
		Mounting wedge	Fig 2
3	Lift upper A-pillar paneling (1) with assembly wedge (arrow) and push upwards to remove retaining clamps (3) from guide (4)
4	Remove A-pillar paneling (1)
5	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
