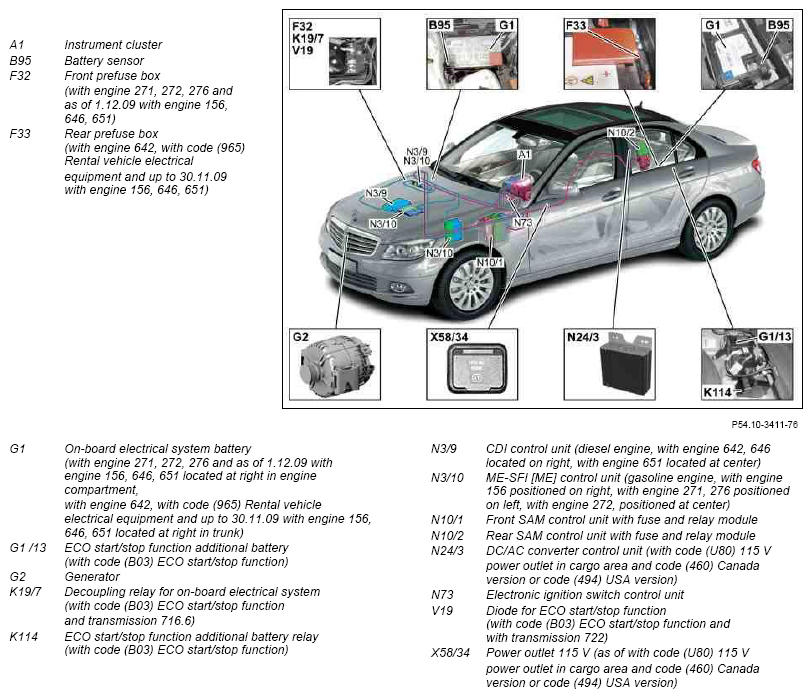

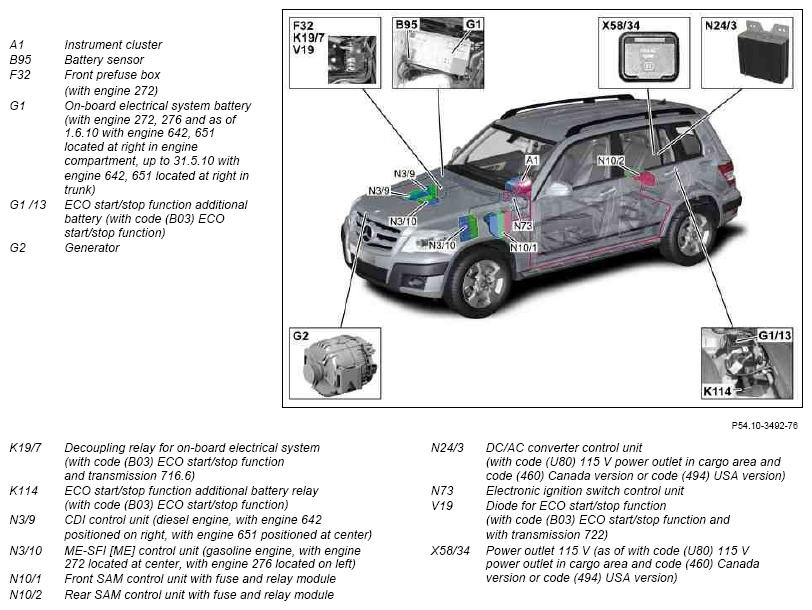

Overview of energy management system components - GF54.10-P-9990CE
MODEL 204.0/2 as of model year 2009
/YoM 08
MODEL 204.3
MODEL 204.9
Model 204.0/2/3, shown on model 204.0
Model 204.9
With vehicles up to 31.5.10 with engine 642, 651 the rear prefuse box is located at the right in the trunk, in the vicinity of the on-board electrical system battery.
| Component description for instrument cluster | A1 | GF54.30-P-6000CE | |
| Component description for CDI control unit | N3/9 On engine 642.8 in model 204.0/2/9 |
GF07.16-P-6000OG | |
| On engine 642.9 in model 204.0/2/9 | GF07.16-P-6000OH | ||
| On engine 646.8 in model 204.0/2 | GF07.16-P-6000OL | ||
| With engine 651.9 | GF07.16-P-6000OM | ||
| Component description for ME-SFI [ME] control unit | N3/10 With engine 156 in model 204.0/2 |
GF07.61-P-6000MAW | |
| With engine 271.8 in model 204.0/2/3 | GF07.61-P-6000MG | ||
| With engine 271.9 in model 204.0/2 | GF07.61-P-6000MFW | ||
| With engine 272.9 (except 272.982) in model 204.0/2/9 | GF07.61-P-6000MI | ||
| With engine 272.982 in model 204.0 | GF07.61-P-6000MIE | ||
| With engine 276.9 | GF07.61-P-6000MM | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070CE | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030CE | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001CE | |
| DC/AC converter control unit, component description | N24/3 With model 204. 0/9 with code (U80) 115 V power outlet and code (460) Canada version or code (494) USA version, |
GF54.21-P-4127GD | |
| Table of contents for function description of energy management | GF54.10-P-0990CE |
