Removing and installing headlamp for daytime running light - AR82.10-P-2300CW
MODEL 204.0 /2 as of model year 2011
Shown on right on model 204.0 with code (622) Intelligent Light System (right-hand traffic)
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle with vehicle lift | ||
| 2.1 | Detach right fender liner in area of bumper until right daytime running lights headlamp (E2/3) can be removed | When removing right daytime running lights headlamp (E2/3). | |
| Fig 2 | |||
| 2.2 | Remove radiator grille | When removing left daytime running lights headlamp (E1/3). | AR88.40-P-4001CW |
| 3 | Detach front bumper | When removing left daytime running lights headlamp (E1/3). | AR88.20-P-2000-01CW |
| Gap dimensions on hoods, doors and lids | AR60.00-P-0700-01CW | ||
| Gap dimension between engine hood and bumper, dimension "D" | *BE60.00-P-1001-01U | ||
| Gap dimension between bumper and headlamp, dimension "F" | *BE60.00-P-1001-01U | ||
| Fig 2 | |||
| Fig 3 | |||

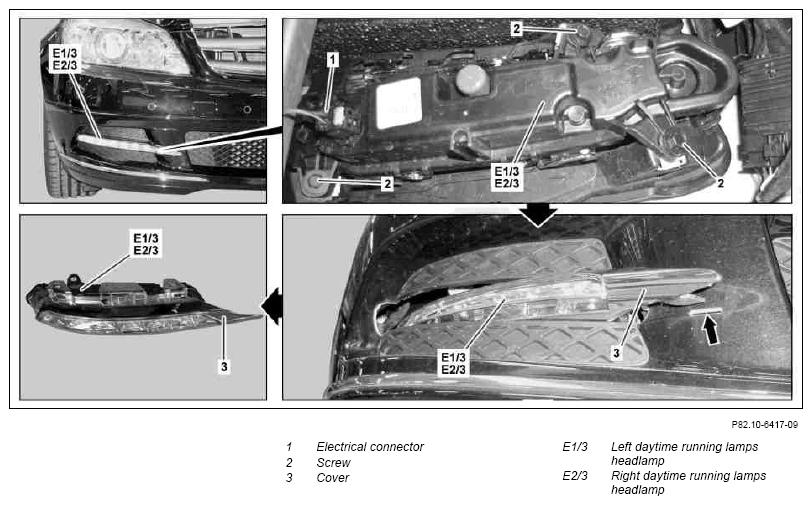

| 4 | Disconnect electrical connector (1) | ||
| 5 | Remove screws/bolts (2) and remove left daytime running lights headlamp (E1/3) or right daytime running lights headlamp (E2/3) from cover (2) of bumper | ||
| 6 | Modify cover (3) on left daytime running lights headlamp (E1/3) or right daytime running lights headlamp (E2/3) | Only when replacing left daytime running lights headlamp (E1/3) or right daytime running lights headlamp (E2/3). | |
| 7 | Install in the reverse order |
CHECK VALUES FOR GAPS
| Number | Designation | Model 204.0 | Model 204.2 | |||
|---|---|---|---|---|---|---|
| BE60.00-P-1001-01U | Gap dimension | Engine hood to fender | Dimension "A" | mm | 4 (±1) | 4 (±1) |
| Engine hood to headlamp | Dimension "B" | mm | 4 (±1) | 4 (±1) | ||
| Engine hood to radiator grille | Dimension "C" | mm | 6 (±1) | 6 (±1) | ||
| Engine hood to bumper | Dimension "D" | mm | 4 (±1.5) | 4 (±1.5) | ||
| Engine hood to A-pillar | Dimension "E" | mm | 4.5 (±1) | 4.5 (±1) | ||
| Bumper to headlamp | Dimension "F" | mm | 3 (±1) | 3 (±1) | ||
| See picture | AR60.00-P-0700-01CW | AR60.00-P-0700-01CW | ||||
