Remove/install xenon headlamp control unit - AR82.10-P-4632CW
MODEL 204.0 /2 with CODE (614) Bi-xenon headlamp unit with CODE (622) Intelligent Light System (right-hand traffic)

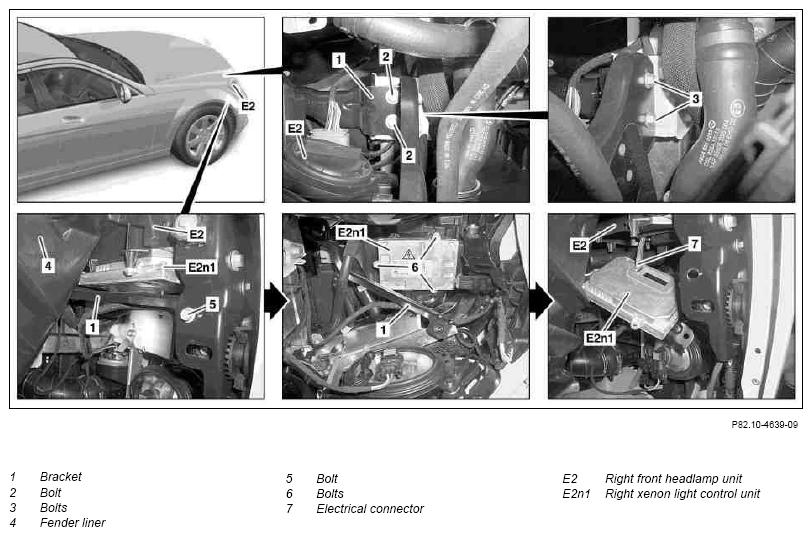

Shown on right xenon light control unit (E2n1)

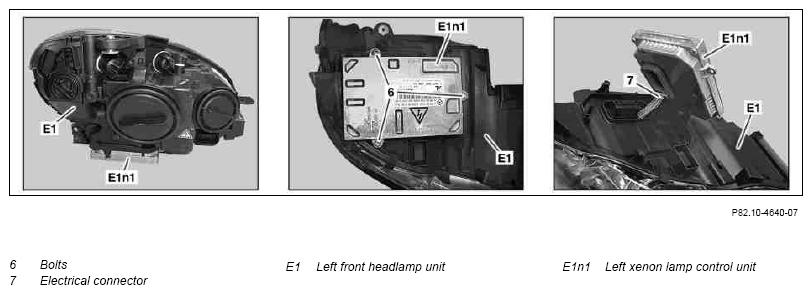

Shown on left xenon light control unit (E1n1)
| Remove/install | |||
| Risk of death caused by high voltage at xenon headlamps. Risk of explosion/risk of fire caused by highly flammable materials in the vicinity of damaged xenon bulbs. Risk of injury caused by UV light, hot components at xenon headlamps and glass splinters produced by bursting xenon bulbs. Risk of poisoning caused by inhalation of mercury vapors and by toxic salts and mercury compounds being ingested or coming into contact with skin | Do not come into contact with parts that are under high voltage. Persons with active electronic implants
(e.g. heart pacemakers) must never work on xenon headlamps. Switch off entire lighting system. Wear insulated safety shoes, safety glasses and protective gloves. Remove highly inflammable materials from the hazard area. Ensure sufficient ventilation in the working area. |
AS82.10-Z-0001-01A | |
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Buffer the basic data of the left xenon light control unit (E1n1) or the right xenon light control unit (E2n1) in STAR DIAGNOSIS | When replacing the left xenon light control unit (E1n1) or right xenon light control unit (E2n1). | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 2 | Lift vehicle on lifting platform. | ||
| 3 | Open engine hood | ||
| 4 | Undo bolts (2, 3) of bracket (1) | When removing right xenon light control unit (E2n1). | |
| 5 | Release right fender liner (4) in area of bumper and pry off using assembly wedge | When removing right xenon light control unit (E2n1). |
Fig 3 |
| 6 | Unscrew bolt (5). | When removing right xenon light control unit (E2n1). | |
| 7 | Push holder (1) to one side | When removing right xenon light control unit (E2n1). | |
| 8 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | ||
| 9 | Remove left headlamp unit | When removing left xenon light control unit (E1n1). | AR82.10-P-4730CW |
| 10 | Remove bolts (6) | ||
| 11 | Remove left xenon light control unit (E1n1) or right xenon light control unit (E2n1) | Fig 3 | |
| 12 | Detach electrical connector (7) and remove left xenon light control unit (E1n1) or right xenon light control unit (E2n1) | ||
| 13 | Install in the reverse order | ||
| 14 | Check adjustment of left low beam or right low beam, correct if necessary | When replacing the left xenon light control unit (E1n1) or right xenon light control unit (E2n1). | |
| Check and correct headlamp adjustment | AP82.10-P-8260CW |
