Remove/install rear axle headlamp range adjustment sensor - AR82.10-P-4084CW

MODEL 204.0 /2 with CODE (614) Bi-xenon headlamp unit with CODE (615) Bi-xenon headlamp unit with CODE (616) Bi-xenon headlamp unit with integrated asymmetric curve illumination with CODE (618) Bi-xenon headlamps with CODE (621) Intelligent Light System (left-hand traffic) with CODE (622) Intelligent Light System (right-hand traffic) MODEL 204.9 with CODE (614) Bi-xenon headlamp unit with CODE (615) Bi-xenon headlamp unit with CODE (616) Bi-xenon headlamp unit with integrated asymmetric curve illumination with CODE (621) Intelligent Light System (left-hand traffic) with CODE (622) Intelligent Light System (right-hand traffic)

MODEL 207 with CODE (615) Bi-xenon headlamp unit with integrated curve illumination with CODE (616) Bi-xenon headlamp unit with integrated asymmetric curve illumination with CODE (621) Intelligent Light System (left-hand traffic) with CODE (622) Intelligent Light System (right-hand traffic)

MODEL 212 with CODE (615) Bi-xenon headlamp unit with integrated curve illumination with CODE (616) Bi-xenon headlamp unit with integrated asymmetric curve illumination with CODE (621) Intelligent Light System (left-hand traffic) with CODE (622) Intelligent Light System (right-hand traffic) MODEL 218.3 with CODE (614) Bi-xenon headlamp unit with CODE (615) Bi-xenon headlamp unit with CODE (618) Bi-xenon headlamps with CODE (621) Intelligent Light System (left-hand traffic) with CODE (622) Intelligent Light System (right-hand traffic)

Shown on model 204.0

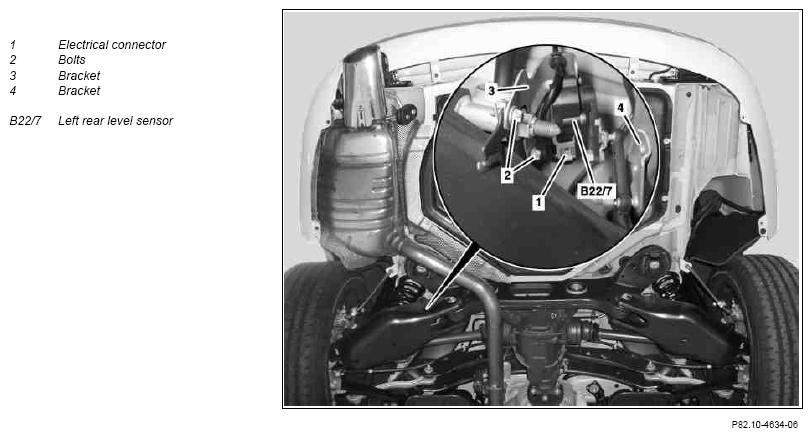

Fig 1: Identifying Rear Axle Headlamp Range Adjustment Sensor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Lift vehicle on lifting platform.
2	Remove bracket (4)	Bracket (4) is removed with the left rear level sensor (B22/7).
3	Disconnect electrical connector (1)
4	Remove electrical wiring harness from bracket (3)
5	Remove bracket (3)	On model 204.0/2 the bracket (3) is fastened using bolts (2). In model 204.9, 207 and 218.3 the bracket (3) is secured with an expansion clip instead of the upper screw/bolt (2) and a continuous threaded connection with a nut is installed instead of the lower screw/bolt (2). With model 212 the bracket (3) is secured with a journal instead of the upper bolt (2) and a continuous threaded connection with nut is installed instead of the lower bolt (2).
6	Remove the left rear level sensor (B22/7)	The left rear level sensor (B22/7) can only be removed together with the brackets (3, 4).
7	Install in the reverse order
8	Connect Star Diagnosis, read out fault memory and adjust zero position of headlamps		AD00.00-P-2000-04A
9	Check headlamp setting and correct if necessary	Model 204	AP82.10-P-8260CW
		Model 207, 212, 218	AP82.10-P-8260EW
