Remove/install radio operating unit - AR82.60-P-7503CW
MODEL 204 with CODE (523) MB Audio 20 radio
MODEL 204 with CODE (510) Audio 20 with CD changer
MODEL 204 with CODE (525) MB Audio 50 APS radio
MODEL 204 with CODE (511) Audio 50 APS with DVD changer
MODEL 204 with CODE (527) COMAND APS with single DVD drive (with navigation) MODEL 204 with CODE (512) COMAND APS with DVD changer
MODEL 212 with CODE (523) MB Audio 20 radio except CODE (279) Electronic gear selector
MODEL 212 with CODE (510) Audio 20 with CD changer except CODE (279) Electronic gear selector
MODEL 212 with CODE (525) MB Audio 50 APS radio except CODE (279) Electronic gear selector
MODEL 212 with CODE (511) Audio 50 APS with DVD changer except CODE (279) Electronic gear selector
MODEL 212 with CODE (527) COMAND APS with single DVD drive (with navigation) except CODE (279) Electronic gear selector
MODEL 212 with CODE (512) COMAND APS with DVD changer except CODE (279) Electronic gear selector

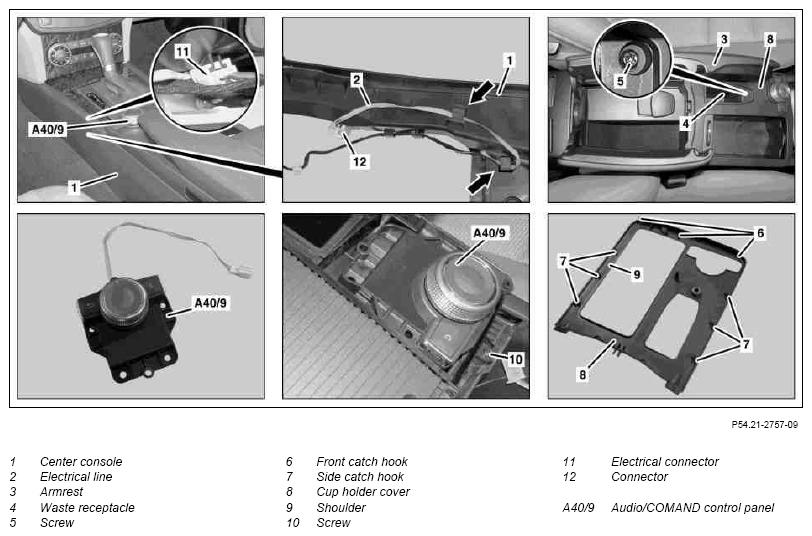

Illustrated on model 204.0
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Buffer basic data from the Audio/COMAND control panel (A40/9) in STAR DIAGNOSIS | When replacing the Audio/COMAND control panel (A40/9). |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 2 | Open armrest (3) and take out waste receptacle (4) | ||
| 3 | Unscrew bolt (5) | ||
| 4 | First unclip the front catch hook (6), then the side catch hook (7) and remove the cup holder cover (8) | ||
| 5 | Loosen the center console (1) until the electrical line (2) is accessible on the underside of the center console (1) | On model 204 | AR68.20-P-2000CW |
| 6 | Unscrew bolt (10) | ||
| 7 | Disconnect electrical connector (11) | ||
| 8 | Unclip connector (12) from center console (1), unhook electrical line (2) from guides (arrows) and remove Audio/COMAND control panel (A40/9) | ||
| 9 | Install in the reverse order |
