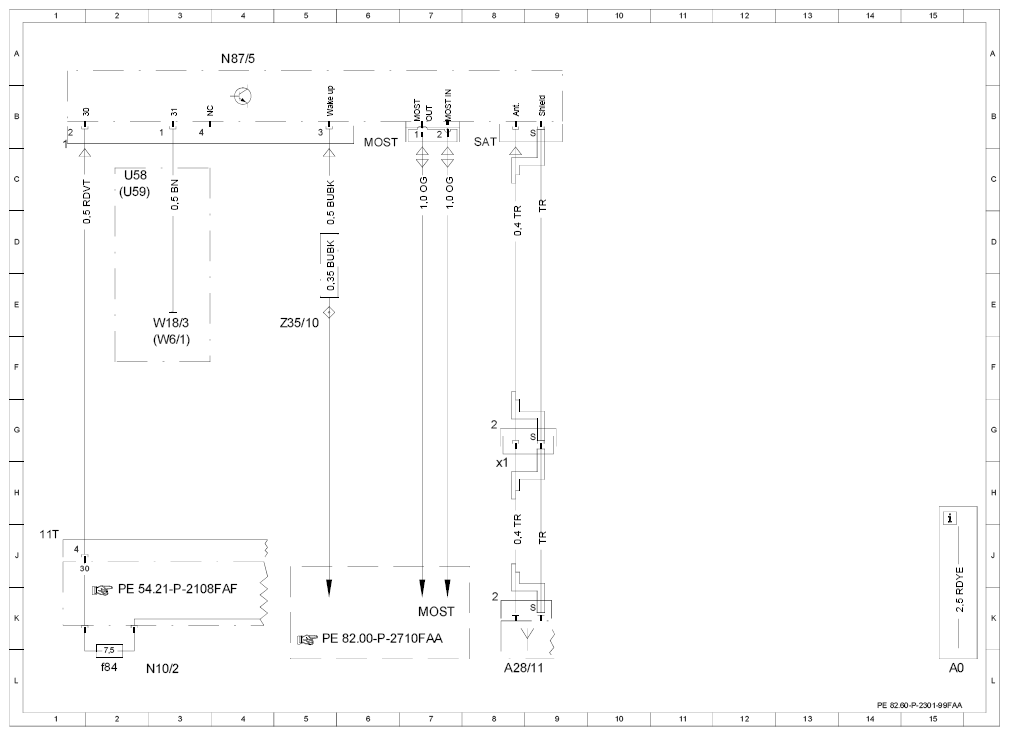

Wiring diagram for satellite digital audio radio system control unit (SDAR) - PE82.60-P-2301-99FAA
MODEL 204.0 /9 with CODE (536) SIRIUS satellite radio
with CODE (494) USA version up to model year 2010 /YoM 09, control unit N87/5
MODEL 204.0 /3 /9 with CODE (536) SIRIUS satellite radio with CODE (494) USA version as of model year
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 15L |
| A28/11 | Multifunction antenna | 8L |
| A28/11x1 | Multifunction antenna electrical connector | 8H |
| MOST | Media Oriented System Transport | 7K |
| N10/2 | Rear SAM control module with fuse and relay module | 2L |
| N10/2f84 | Fuse 84 | 1L |
| N87/5 | Satellite digital audio radio (SDAR) control unit | 4A |
| W18/3 | Left front seat crossmember ground point 2 | 2E |
| Z35/10 | MOST wake-up signal connector sleeve | 5E |
