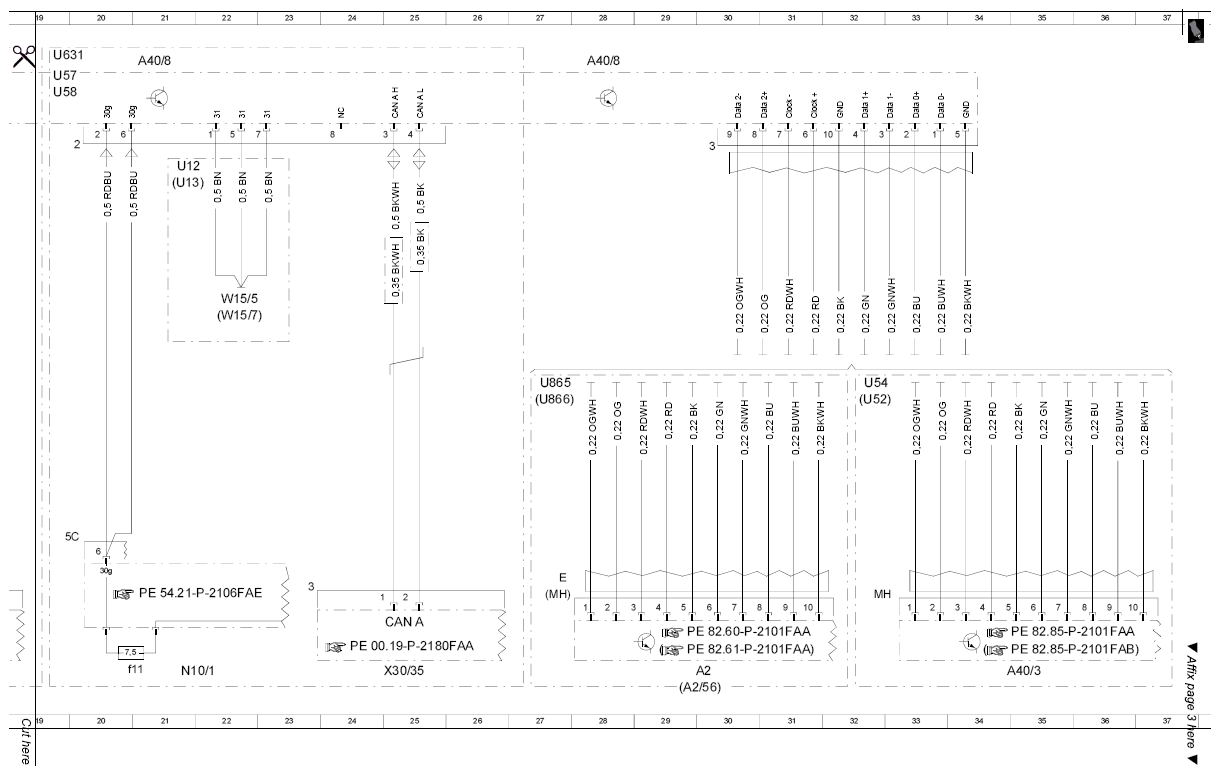

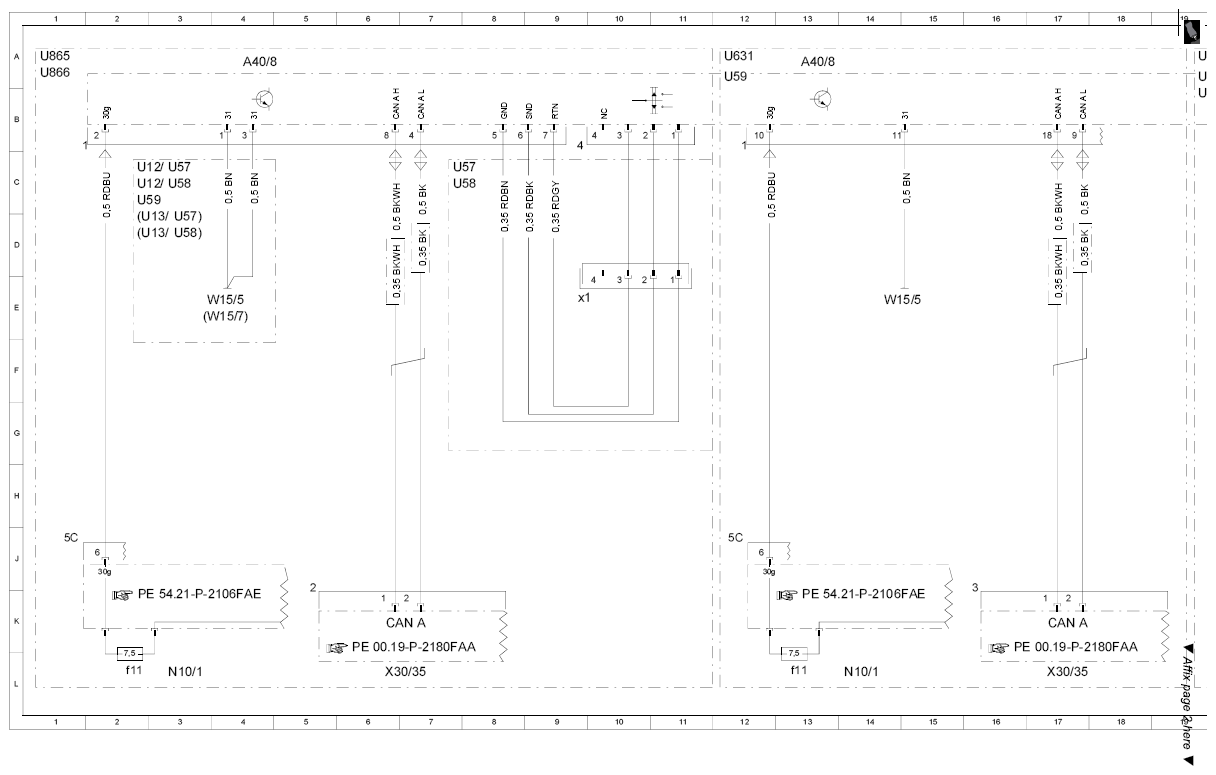

Wiring diagram for Audio/COMAND display - PE82.00-P-2080-99FAA
MODEL 204 Control unit A40/8
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 31L |
| A2 | Radio | 21L |
| A2/56 | Radio with auto pilot system | 21L |
| A40/3 | COMAND control unit | 26L |
| A40/8 | Audio/COMAND display | 4A |
| A40/8 | Audio/COMAND display | 12A |
| A40/8 | Audio/COMAND display | 20A |
| A40/8x1 | Audio/COMAND display electrical connector | 8E |
| CAN A | Telematics CAN | 6K |
| CAN A | Telematics CAN | 16K |
| N10/1 | Front SAM control module with fuse and relay module | 3L |
| N10/1 | Front SAM control module with fuse and relay module | 13L |
| N10/1f11 | Fuse 11 | 2L |
| N10/1f11 | Fuse 11 | 12L |
| U12 | Valid for left-hand steering | 3C |
| U12 | Valid for left-hand steering | 13C |
| U13 | Valid for right-hand steering | 3C |
| U13 | Valid for right-hand steering | 13C |
| U52 | Valid for Japan | 24G |
| U54 | Valid for all except Japan | 24F |
| U631 | Valid for COMAND | 11A |
| U865 | Valid for Audio 20 radio | 1A |
| U865 | Valid for Audio 20 radio | 19F |
| U866 | Valid for Audio 50 | 1A |
| U866 | Valid for Audio 50 | 19G |
| W15/5 | Left front footwell ground point | 3E |
| W15/5 | Left front footwell ground point | 14E |
| W15/7 | Right front footwell ground point | 3E |
| W15/7 | Right front footwell ground point | 14E |
| X30/35 | Telematics CAN voltage distributor electrical connector | 6L |
| X30/35 | Telematics CAN voltage distributor electrical connector | 16L |
