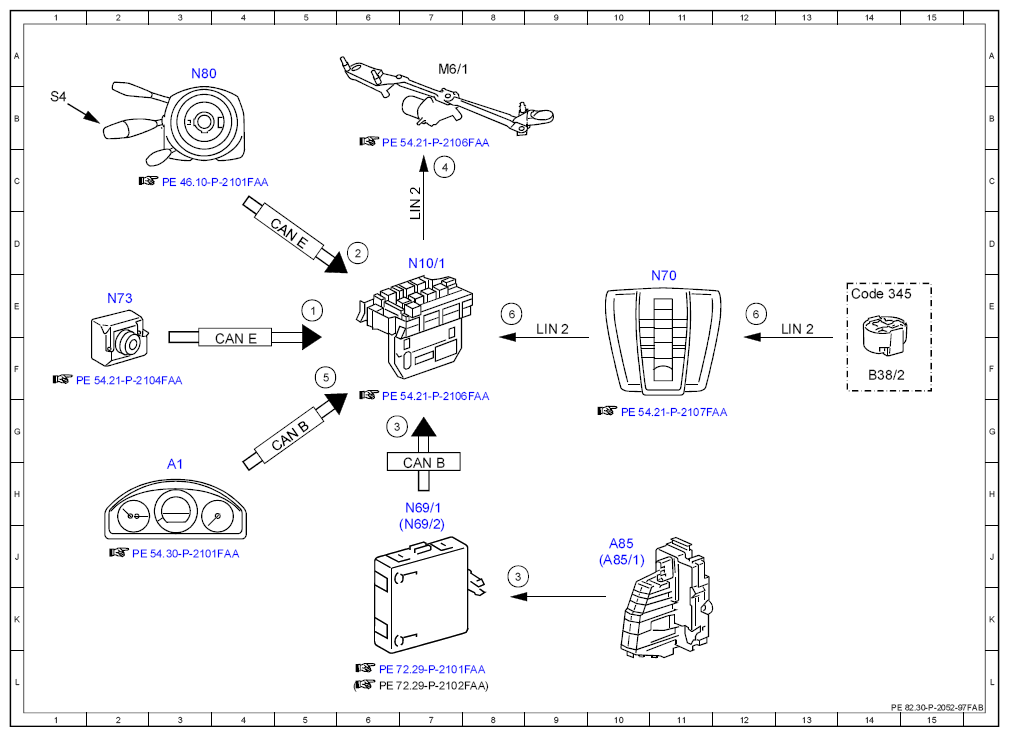

Electrical function schematic for wiper startup suppression - PE82.30-P-2052-97FAB
MODEL 204.0 /2 as of Model Year 2009 /modification year 08
MODEL 204.3
MODEL 204.9
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 5E |
| 2 | Combination switch, status | 6D |
| 3 | Door rotary tumbler switch, status | 6G |
| 3 | Door rotary tumbler switch, status | 8J |
| 4 | Wiper motor, actuation | 7C |
| 5 | Vehicle speed, signal | 5F |
| 6 | Rain/light sensor, status | 8E |
| 6 | Rain/light sensor, status | 12E |
| A1 | Instrument cluster | 3H |
| A85 | Left front door lock | 10J |
| A85/1 | Right front door lock | 10J |
| B38/2 | Rain/light sensor | 14F |
| CAN B | Interior CAN | 5G |
| CAN B | Interior CAN | 7H |
| CAN E | Chassis CAN | 4F |
| CAN E | Chassis CAN | 5D |
| Code 345 | Rain sensor | 14E |
| LIN 2 | Wiper/inside rearview mirror LIN | 7C |
| LIN 2 | Wiper/inside rearview mirror LIN | 13E |
| LIN 2 | Wiper/inside rearview mirror LIN | 9E |
| M6/1 | Wiper motor | 7A |
| N10/1 | Front SAM control unit with fuse and relay module | 7D |
| N69/1 | Left front door control unit | 7H |
| N69/2 | Right front door control unit | 7J |
| N70 | Overhead control panel control unit | 11E |
| N73 | Electronic ignition switch control unit | 2E |
| N80 | Steering column module control unit | 3A |
| S4 | Combination switch | 1B |
