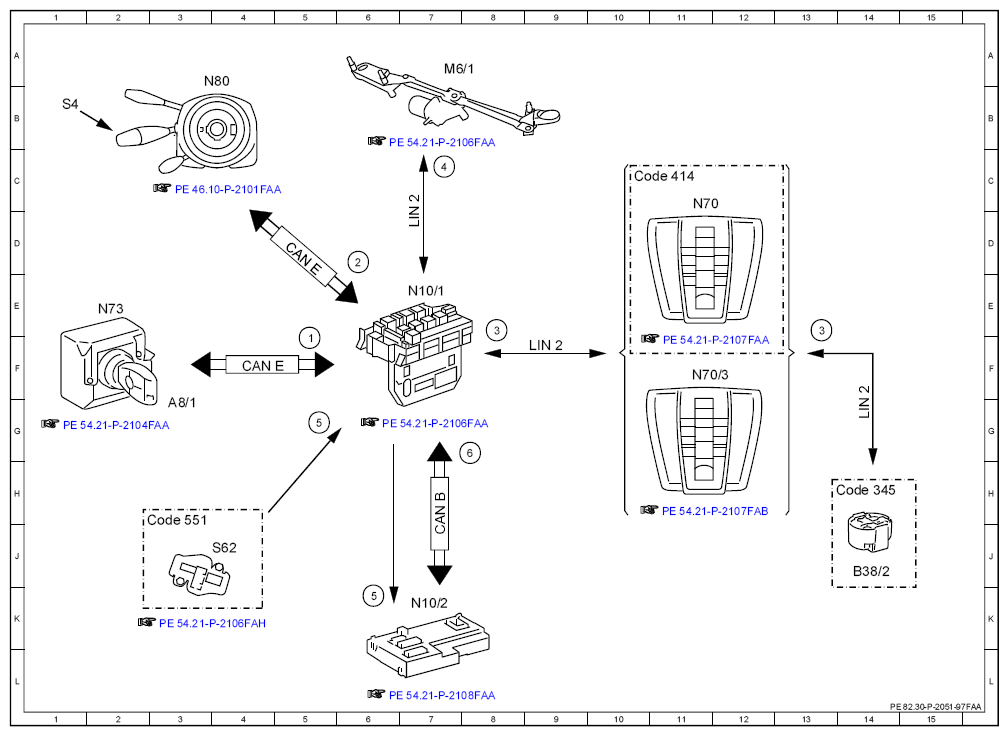

Electrical function schematic for windshield wiper - PE82.30-P-2051-97FAA
MODEL 204.0 /2 up to Model Year 08 /Modification Year 07
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 5F |
| 2 | Combination switch, status | 6D |
| 3 | Rain/light sensor, status | 8E |
| 3 | Rain/light sensor, status | 13E |
| 4 | Wiper motor, actuation | 7C |
| 5 | Engine hood anti-theft alarm system switch, signal | 5G |
| 5 | Engine hood anti-theft alarm system switch, signal | 6K |
| 6 | Engine hood anti-theft alarm system switch, status | 8G |
| A8/1 | Transmitter key | 3G |
| B38/2 | Rain/light sensor | 14J |
| CAN B | Interior CAN | 7H |
| CAN E | Chassis CAN | 4F |
| CAN E | Chassis CAN | 5D |
| Code 345 | Rain sensor | 14H |
| Code 414 | Electric glass tilting/sliding roof | 11C |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 3H |
| LIN 2 | Wiper/inside rearview mirror LIN | 14G |
| LIN 2 | Wiper/inside rearview mirror LIN | 9F |
| LIN 2 | Wiper/inside rearview mirror LIN | 7D |
| M6/1 | Wiper motor | 7A |
| N10/1 | Front SAM control unit with fuse and relay module | 7E |
| N10/2 | Rear SAM control unit with fuse and relay module | 7K |
| N70 | Overhead control panel control unit | 11C |
| N70/3 | Overhead control panel electronics | 11F |
| N73 | Electronic ignition switch control unit | 2E |
| N80 | Steering column module control unit | 3A |
| S4 | Combination switch | 1B |
| S62 | Engine hood anti-theft alarm system switch | 4J |
