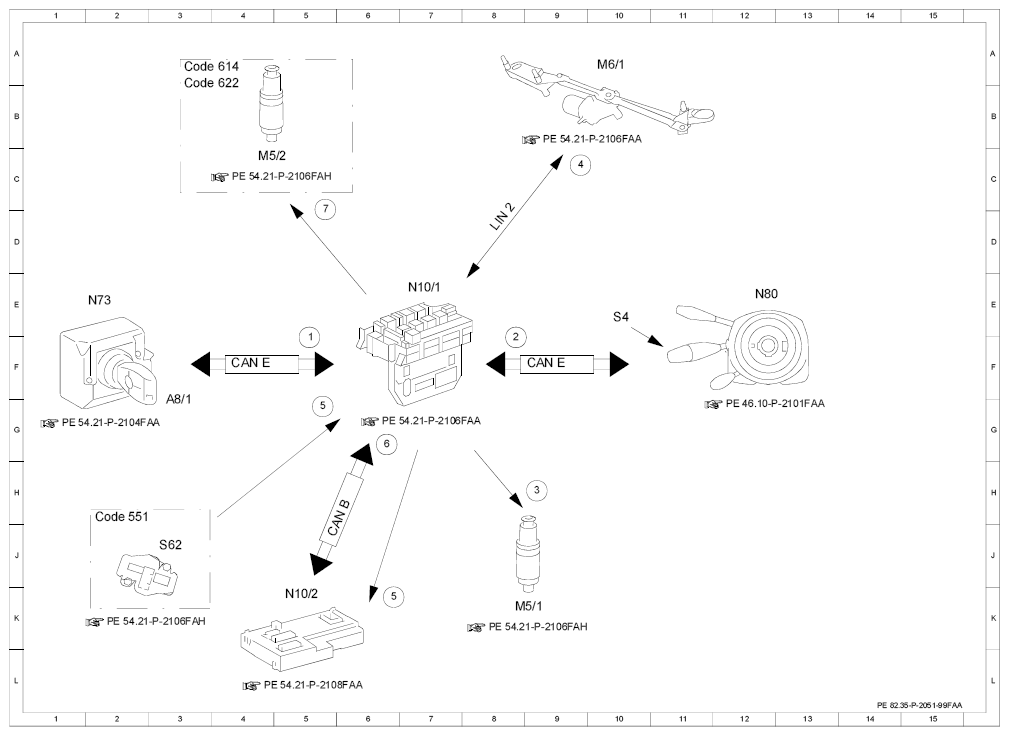

Electrical function schematic for windshield washer - PE82.35-P-2051-99FAA
MODEL 204.0 /2 up to Model Year 08 /Modification Year 07
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 5F |
| 2 | Combination switch, status | 8F |
| 3 | Windshield washer system pump, actuation | 9H |
| 4 | Wiper motor, actuation | 9C |
| 5 | Engine hood anti-theft alarm system switch, signal | 5G |
| 5 | Engine hood anti-theft alarm system switch, signal | 6K |
| 6 | Engine hood anti-theft alarm system switch, status | 6G |
| 7 | Headlamp cleaning system pump, actuation | 5D |
| A8/1 | Transmitter key | 3G |
| CAN B | Interior CAN | 5J |
| CAN E | Chassis CAN | 4F |
| CAN E | Chassis CAN | 9F |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 2J |
| Code 614 | Bi-xenon headlamp unit | 3A |
| Code 622 | Intelligent Light System (right-hand traffic) | 3B |
| LIN 2 | Wiper/inside rearview mirror LIN | 8D |
| M5/1 | Windshield washer system pump | 8K |
| M5/2 | Headlamp cleaning system pump | 4C |
| M6/1 | Wiper motor | 10A |
| N10/1 | Front SAM control unit with fuse and relay module | 7E |
| N10/2 | Rear SAM control unit with fuse and relay module | 5K |
| N73 | Electronic ignition switch control unit | 2E |
| N80 | Steering column module control unit | 12E |
| S4 | Combination switch | 10E |
| S62 | Engine hood anti-theft alarm system switch | 3J |
