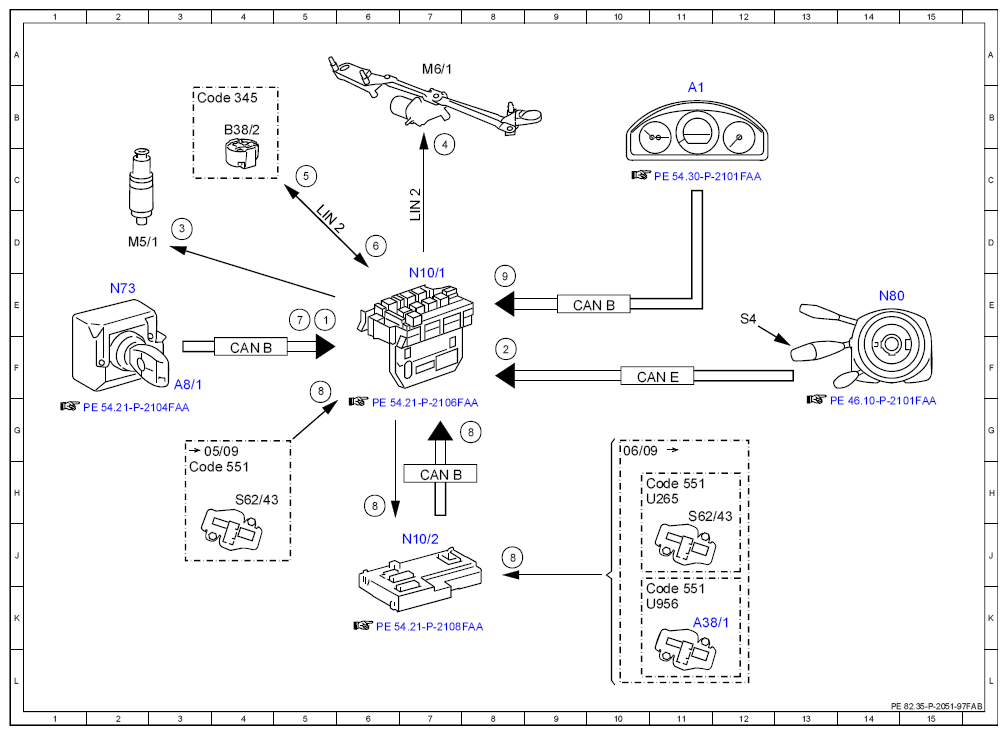

Electrical function schematic for windshield washer - PE82.35-P-2051-97FAB
MODEL 204.0 /2 as of model year 2009 /YoM 08
MODEL 204.3
MODEL 204.9
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 5E |
| 2 | Combination switch, status | 8F |
| 3 | Windshield washer system pump, actuation | 3D |
| 4 | Wiper motor, actuation | 7C |
| 5 | Re-wipe, status | 5C |
| 6 | Rain/light sensor, status | 6D |
| 7 | Circuit 50, status | 5E |
| 8 | Engine hood contact switch, status | 5F |
| 8 | Engine hood contact switch, status | 6H |
| 8 | Engine hood contact switch, status | 8J |
| 8 | Engine hood contact switch, status | 8J |
| 9 | Vehicle speed, signal | 8E |
| A1 | Instrument cluster | 11B |
| A38/1 | Pedestrian protection Hall sensor + engine hood ATA [EDW] switch | 11K |
| A8/1 | Transmitter key | 3F |
| B38/2 | Rain/light sensor | 4B |
| CAN B | Interior CAN | 4F |
| CAN B | Interior CAN | 9E |
| CAN B | Interior CAN | 7H |
| CAN E | Chassis CAN | 10F |
| Code 345 | Rain sensor | 3B |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 10H |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 10K |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 3H |
| LIN 2 | Wiper/inside rearview mirror LIN | 7C |
| LIN 2 | Wiper/inside rearview mirror LIN | 5D |
| M5/1 | Windshield washer system pump | 2D |
| M6/1 | Wiper motor | 7A |
| N10/1 | Front SAM control unit with fuse and relay module | 7E |
| N10/2 | Rear SAM control unit with fuse and relay module | 7J |
| N73 | Electronic ignition switch control unit | 2E |
| N80 | Steering column module control unit | 14E |
| S4 | Combination switch | 12E |
| S62/43 | Left engine hood contact switch | 11H |
| S62/43 | Left engine hood contact switch | 4H |
| U265 | Not valid for pedestrian protection | 10H |
| U956 | Valid for pedestrian protection | 10K |
