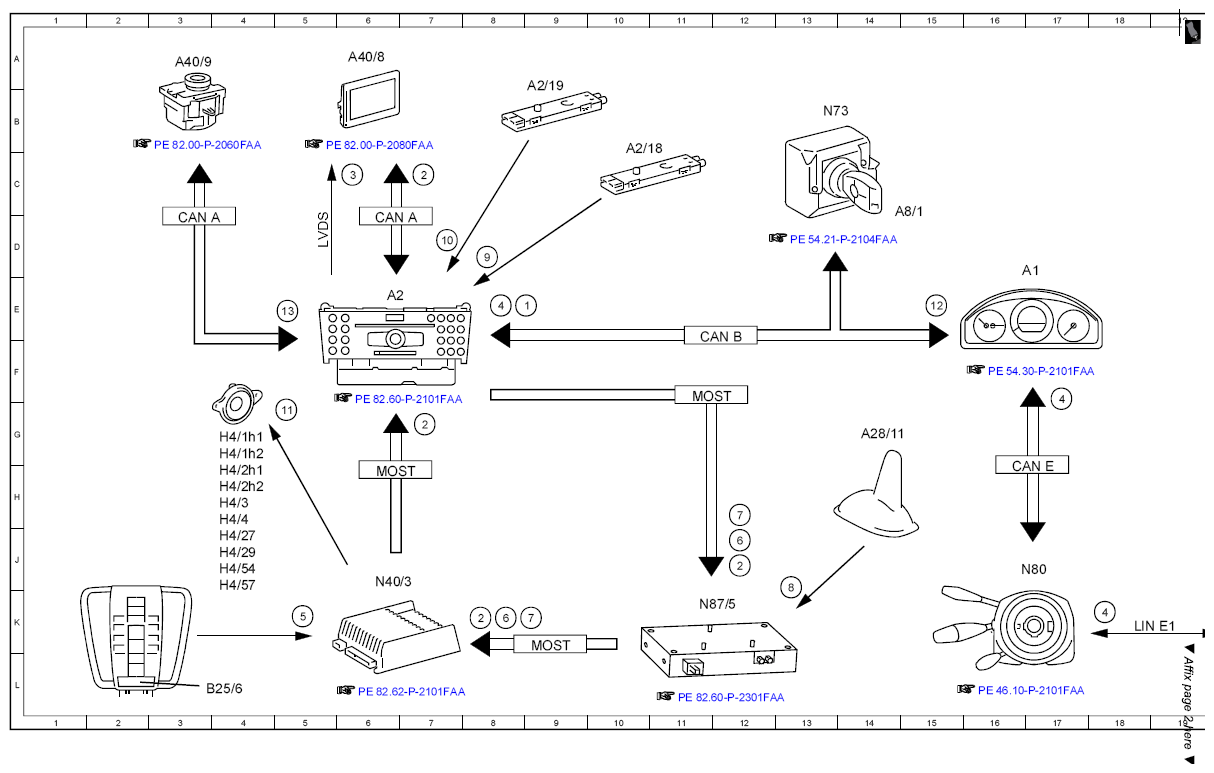

Electrical function schematic for radio - PE82.60-P-2050-97FAD
MODEL 204
with CODE (494) USA version
with CODE (510) Audio 20 with CD changer
with CODE (536) SIRIUS satellite radio
with CODE (810) Sound system up to model year 08/YoM 07
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 8E |
| 2 | Switch-on request, signal | 7C |
| 2 | Switch-on request, signal | 12J |
| 2 | Switch-on request, signal | 8K |
| 2 | Switch-on request, signal | 7G |
| 3 | Audio/COMAND display, signal | 6C |
| 4 | Multifunction steering wheel button group, signal | 8E |
| 4 | Multifunction steering wheel button group, signal | 18K |
| 4 | Multifunction steering wheel button group, signal | 17G |
| 5 | Vehicle interior noise level, signal | 5K |
| 6 | SDAR, communication | 8K |
| 6 | SDAR, communication | 12J |
| 7 | Sound system amplifier, actuation | 12H |
| 7 | Sound system amplifier, actuation | 9K |
| 8 | SDAR antenna, signal | 13K |
| 9 | AM/FM antenna, signal | 8D |
| 10 | FM antenna, signal | 7D |
| 11 | Speaker, actuation | 5G |
| 12 | Instrument cluster, message | 15E |
| 13 | Audio/COMAND controller, request | 5E |
| A1 | Instrument cluster | 16D |
| A2 | Radio | 6E |
| A2/18 | FM, AM and CL [ZV] antenna amplifier | 10C |
| A2/19 | Rear window antenna FM antenna amplifier | 9B |
| A28/11 | Multifunction antenna | 14G |
| A40/8 | Audio/COMAND display | 6A |
| A40/9 | Audio/COMAND control panel | 3A |
| A8/1 | Transmitter key | 15D |
| B25/6 | Sound system microphone | 3L |
| CAN A | Telematics CAN | 3D |
| CAN A | Telematics CAN | 6D |
| CAN B | Interior CAN | 12E |
| CAN E | Chassis CAN | 17G |
| H4/1h1 | Left front door tweeter | 4G |
| H4/1h2 | Left front door bass speaker | 4G |
| H4/27 | Center instrument panel speaker | 4J |
| H4/29 | Bass speaker | 4J |
| H4/2h1 | Right front door tweeter | 4H |
| H4/2h2 | Right front door bass speaker | 4H |
| H4/3 | Left rear door speaker | 4H |
| H4/4 | Right rear door speaker | 4H |
| H4/54 | Left rear surround speaker | 4J |
| H4/57 | Right rear surround speaker | 4J |
| LIN E1 | Steering LIN | 19K |
| MOST | Media Oriented System Transport | 6H |
| MOST | Media Oriented System Transport | 9K |
| MOST | Media Oriented System Transport | 11F |
| N40/3 | Sound system amplifier control unit | 6J |
| N73 | Electronic ignition switch control unit | 13B |
| N80 | Steering column module control unit | 16J |
| N87/5 | Satellite digital audio radio (SDAR) control unit | 11K |
| S110 | Left multifunction steering wheel button group | 20K |
| S111 | Right multifunction steering wheel button group | 21K |
