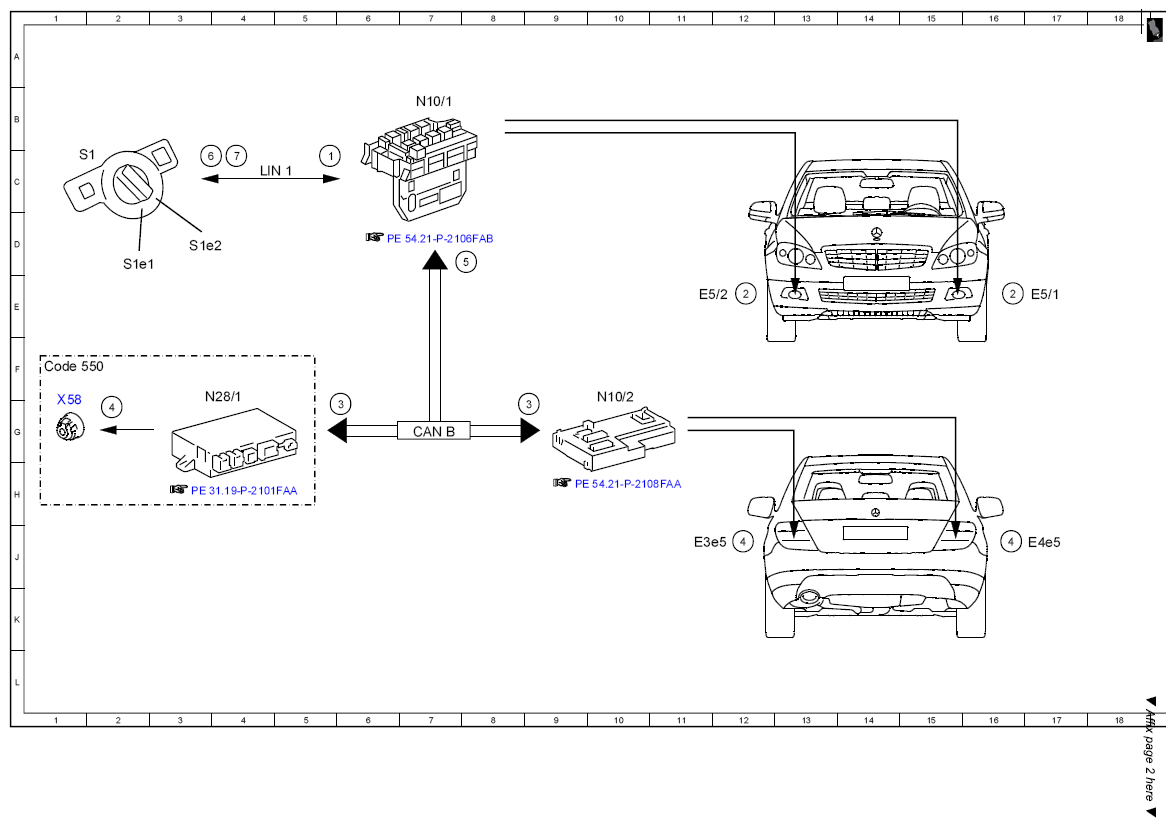

Electrical function schematic for front fog light actuation - PE82.10-P-2056-97FAA
MODEL 204 up to model year 08/YoM 07
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Exterior lights switch, status | 5C |
| 2 | Front fog lamps, actuation | 12E |
| 2 | Front fog lamps, actuation | 16E |
| 3 | Rear fog light, request | 6G |
| 3 | Rear fog light, request | 9G |
| 4 | Rear fog light, actuation | 2G |
| 4 | Rear fog light, actuation | 12J |
| 4 | Rear fog light, actuation | 16J |
| 5 | Trailer, status | 8D |
| 6 | Front fog lamps indicator lamp, actuation | 3C |
| 7 | Rear fog light indicator light, actuation | 4C |
| CAN B | Interior CAN | 7G |
| Code 550 | Trailer hitch | 1F |
| E3e5 | Left rear fog lamp | 11J |
| E4e5 | Right rear fog lamp | 17J |
| E5/1 | Left fog lamp | 17E |
| E5/2 | Right fog lamp | 11E |
| LIN 1 | Instrument panel LIN | 5C |
| N10/1 | Front SAM control unit with fuse and relay module | 7B |
| N10/2 | Rear SAM control unit with fuse and relay module | 10G |
| N28/1 | Trailer recognition control unit | 3G |
| S1 | Exterior lights switch | 1C |
| S1e1 | Front fog lamps indicator lamp | 2D |
| S1e2 | Rear fog lamp indicator lamp | 3D |
| X58 | Trailer socket | 1G |
