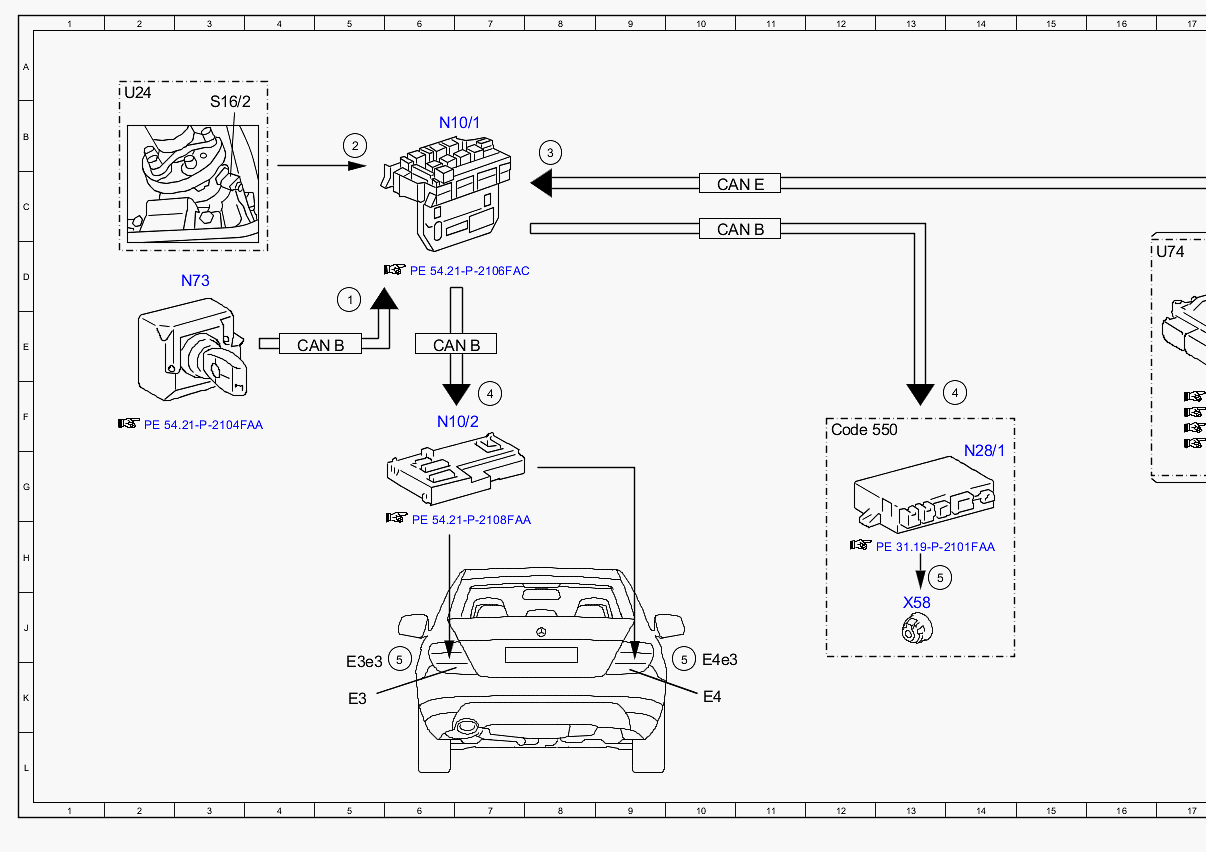

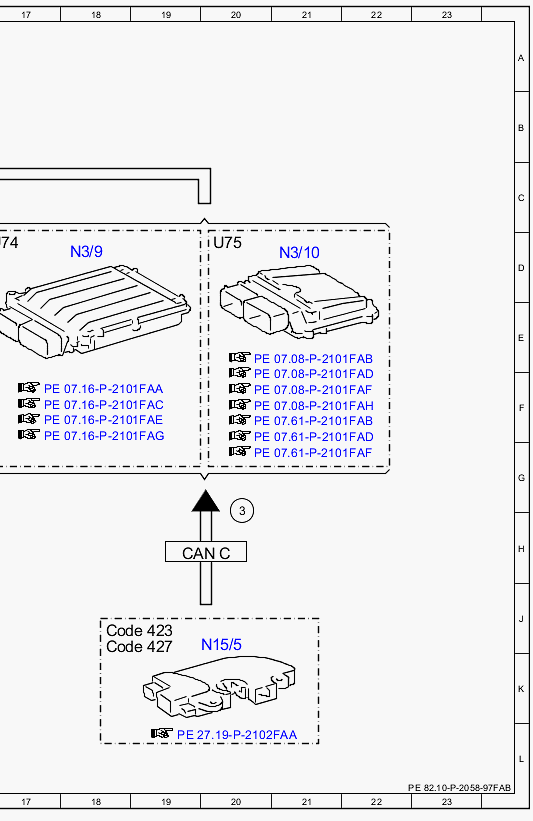

Electrical function schematic for backup light actuation - PE82.10-P-2058-97FAB
MODEL 204.0 /2 as of model year 2009 /YoM 08
MODEL 204.3
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 5D |
| 2 | Backup lamp switch, status | 5B |
| 3 | Selector lever position, status | 8B |
| 3 | Selector lever position, status | 20H |
| 4 | Reverse gear, status | 7F |
| 4 | Reverse gear, status | 14F |
| 5 | Backup lamp, actuation | 6K |
| 5 | Backup lamp, actuation | 10K |
| 5 | Backup lamp, actuation | 13H |
| CAN B | Interior CAN | 6E |
| CAN B | Interior CAN | 4E |
| CAN B | Interior CAN | 10C |
| CAN C | Drive train CAN | 19H |
| CAN E | Chassis CAN | 10C |
| Code 423 | 5-speed automatic transmission | 18J |
| Code 427 | 7-speed automatic transmission | 18J |
| Code 550 | Trailer hitch | 12F |
| E3 | Left rear lamp unit | 5K |
| E3e3 | Left backup lamp | 5K |
| E4 | Right rear lamp unit | 10K |
| E4e3 | Right backup lamp | 10K |
| N10/1 | Front SAM control unit with fuse and relay module | 6B |
| N10/2 | Rear SAM control unit with fuse and relay module | 6F |
| N15/5 | Electronic selector lever module control unit | 19J |
| N28/1 | Trailer recognition control unit | 14G |
| N3/10 | ME-SFI [ME] control unit | 21D |
| N3/9 | CDI control unit | 18D |
| N73 | Electronic ignition switch control unit | 3D |
| S16/2 | Backup lamp switch | 3B |
| U24 | Valid for manual transmission | 2A |
| U75 | Valid for gasoline engines | 20D |
| X58 | Trailer socket | 13J |
