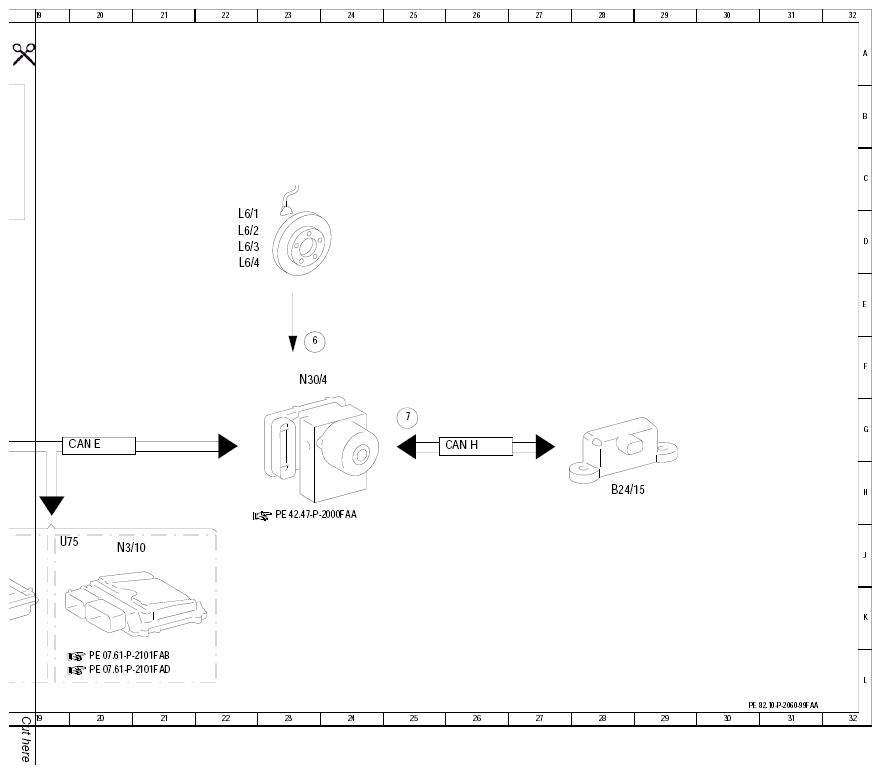

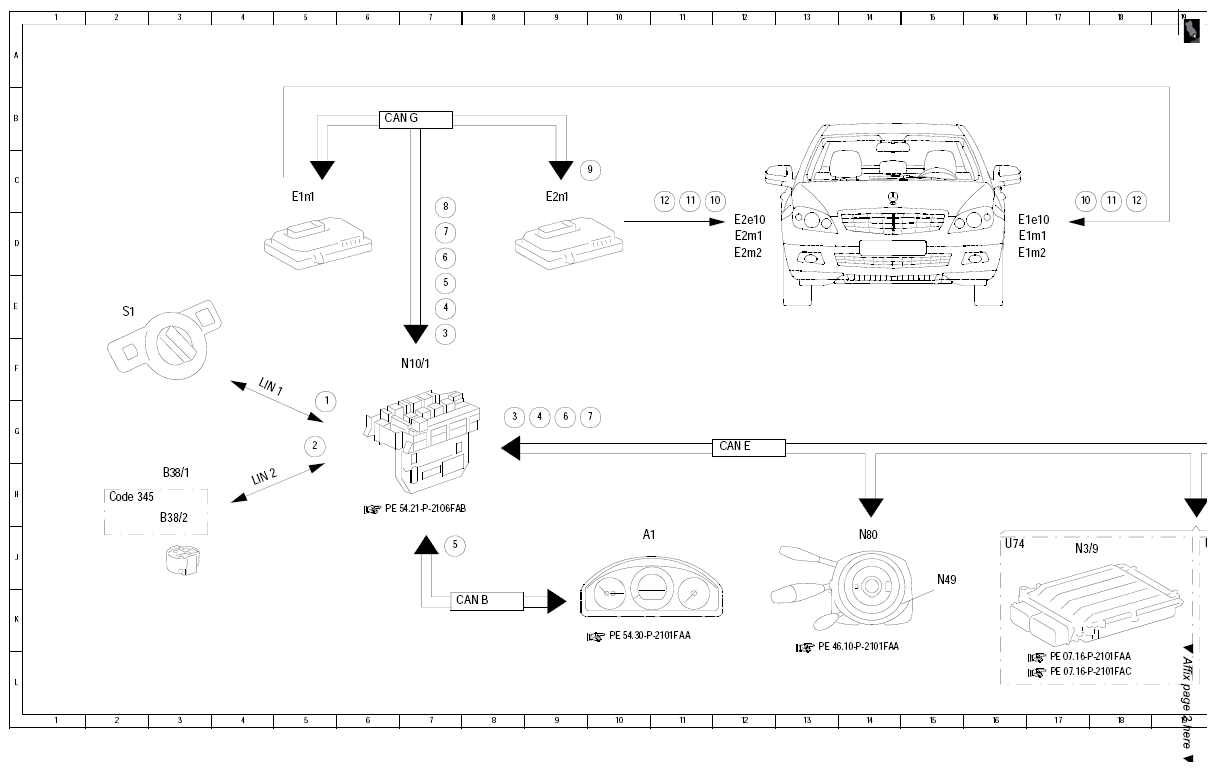

Electrical function schematic for Intelligent Light System - PE82.10-P-2060-99FAA
MODEL 204 with CODE (622) Intelligent Light System (right-hand traffic) up to model year 08/YoM 07
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Exterior lights switch, status | 5G |
| 2 | Ambient brightness, signal | 5G |
| 3 | Steering angle, signal | 7F |
| 3 | Steering angle, signal | 8G |
| 4 | Circuit 61, status | 7E |
| 4 | Circuit 61, status | 9G |
| 5 | Intelligent Light System, status | 7E |
| 5 | Intelligent Light System, status | 7J |
| 6 | Wheel speed, signal | 7D |
| 6 | Wheel speed, signal | 9G |
| 6 | Wheel speed, signal | 23F |
| 7 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 7D |
| 7 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 9G |
| 7 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 25G |
| 8 | Low beams, status | 7D |
| 9 | Synchronization, signal | 9C |
| 10 | Xenon bulb with integrated ignition module, actuation | 11C |
| 10 | Xenon bulb with integrated ignition module, actuation | 17C |
| 11 | Headlamp range adjustment actuator motor, actuation | 11C |
| 11 | Headlamp range adjustment actuator motor, actuation | 18C |
| 12 | Active curve illumination actuator motor, actuation | 11C |
| 12 | Active curve illumination actuator motor, actuation | 18C |
| A1 | Instrument cluster | 10J |
| B24/15 | Yaw rate, lateral and longitudinal acceleration sensor | 28H |
| B38/1 | Light sensor | 3H |
| B38/2 | Rain/light sensor | 3J |
| CAN B | Interior CAN | 7K |
| CAN E | Chassis CAN | 12G |
| CAN E | Chassis CAN | 19G |
| CAN G | Front end CAN | 6B |
| CAN H | Vehicle dynamics CAN | 25G |
| Code 345 | Rain sensor | 2H |
| E1e10 | Left xenon bulb with integrated ignition module | 16D |
| E1m1 | Left headlamp range adjustment actuator motor | 16D |
| E1m2 | Left active curve illumination actuator motor | 16D |
| E1n1 | Left xenon lamp control unit | 5C |
| E2e10 | Right xenon bulb with integrated ignition module | 12D |
| E2m1 | Right headlamp range adjustment actuator motor | 12D |
| E2m2 | Right active curve illumination actuator motor | 12D |
| E2n1 | Right xenon light control unit | 9C |
| L6/1 | Left front axle rpm sensor | 22D |
| L6/2 | Right front axle rpm sensor | 22D |
| L6/3 | Left rear axle rpm sensor | 22D |
| L6/4 | Right rear axle rpm sensor | 22E |
| LIN 1 | Instrument panel LIN | 4F |
| LIN 2 | Wiper/inside rearview mirror LIN | 4H |
| N10/1 | Front SAM control unit with fuse and relay module | 7F |
| N3/10 | ME-SFI [ME] control unit | 20J |
| N3/9 | CDI control unit | 17J |
| N30/4 | Electronic Stability Program control unit | 23F |
| N49 | Steering angle sensor | 15K |
| N80 | Steering column module control unit | 14J |
| S1 | Exterior lights switch | 2E |
| U74 | Valid for diesel engines | 16J |
| U75 | Valid for gasoline engines | 19J |
