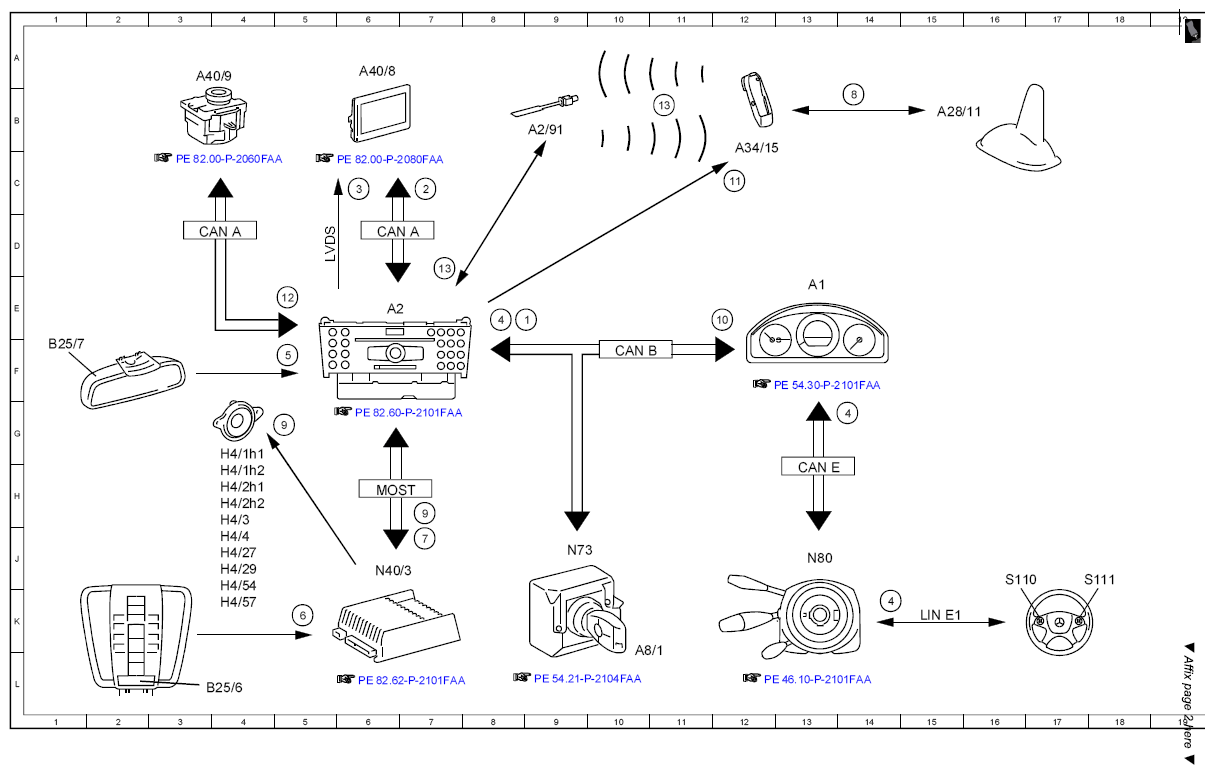

Electrical function schematic for AUDIO 20 with changer, telephone mode - PE82.60-P-2056-97FAB
MODEL 204 with CODE (510) Audio 20 with CD changer
with CODE (386) Mobile phone
with CODE (810) Sound system
except CODE (494) USA version
except CODE (498) Japan version up to model year 08 /YoM 07 Comfort telephony
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 8E |
| 2 | Switch-on request, signal | 7C |
| 3 | Audio/COMAND display, signal | 6C |
| 4 | Multifunction steering wheel button group, signal | 8E |
| 4 | Multifunction steering wheel button group, signal | 14K |
| 4 | Multifunction steering wheel button group, signal | 14G |
| 5 | Voice input, signal | 5F |
| 6 | Vehicle interior noise level, signal | 5K |
| 7 | Sound system amplifier, actuation | 7J |
| 8 | Telephone, signal | 14B |
| 9 | Voice output, signal | 5G |
| 9 | Voice output, signal | 7H |
| 10 | Instrument cluster, message | 12E |
| 11 | Mobile phone switch-on request, signal | 12C |
| 12 | Audio/COMAND controller, request | 5E |
| 13 | Bluetooth, signal | 7D |
| 13 | Bluetooth, signal | 11B |
| A1 | Instrument cluster | 13E |
| A2 | Radio | 6E |
| A2/91 | Bluetooth antenna | 9B |
| A28/11 | Multifunction antenna | 15B |
| A34/15 | Mobile phone holder | 12C |
| A40/8 | Audio/COMAND display | 6A |
| A40/9 | Audio/COMAND control panel | 3A |
| A8/1 | Transmitter key | 10L |
| B25/6 | Sound system microphone | 3L |
| B25/7 | Voice control system microphone | 1F |
| CAN A | Telematics CAN | 6D |
| CAN A | Telematics CAN | 4D |
| CAN B | Interior CAN | 10F |
| CAN E | Chassis CAN | 13G |
| H4/1h1 | Left front door tweeter | 4G |
| H4/1h2 | Left front door bass speaker | 4H |
| H4/27 | Center instrument panel speaker | 4J |
| H4/29 | Bass speaker | 4J |
| H4/2h1 | Right front door tweeter | 4H |
| H4/2h2 | Right front door bass speaker | 4H |
| H4/3 | Left rear door speaker | 4H |
| H4/4 | Right rear door speaker | 4J |
| H4/54 | Left rear surround speaker | 4K |
| H4/57 | Right rear surround speaker | 4K |
| LIN E1 | Steering LIN | 15K |
| MOST | Media Oriented System Transport | 6H |
| N40/3 | Sound system amplifier control unit | 6J |
| N73 | Electronic ignition switch control unit | 9J |
| N80 | Steering column module control unit | 13J |
| S110 | Left multifunction steering wheel button group | 16J |
| S111 | Right multifunction steering wheel button group | 17J |
