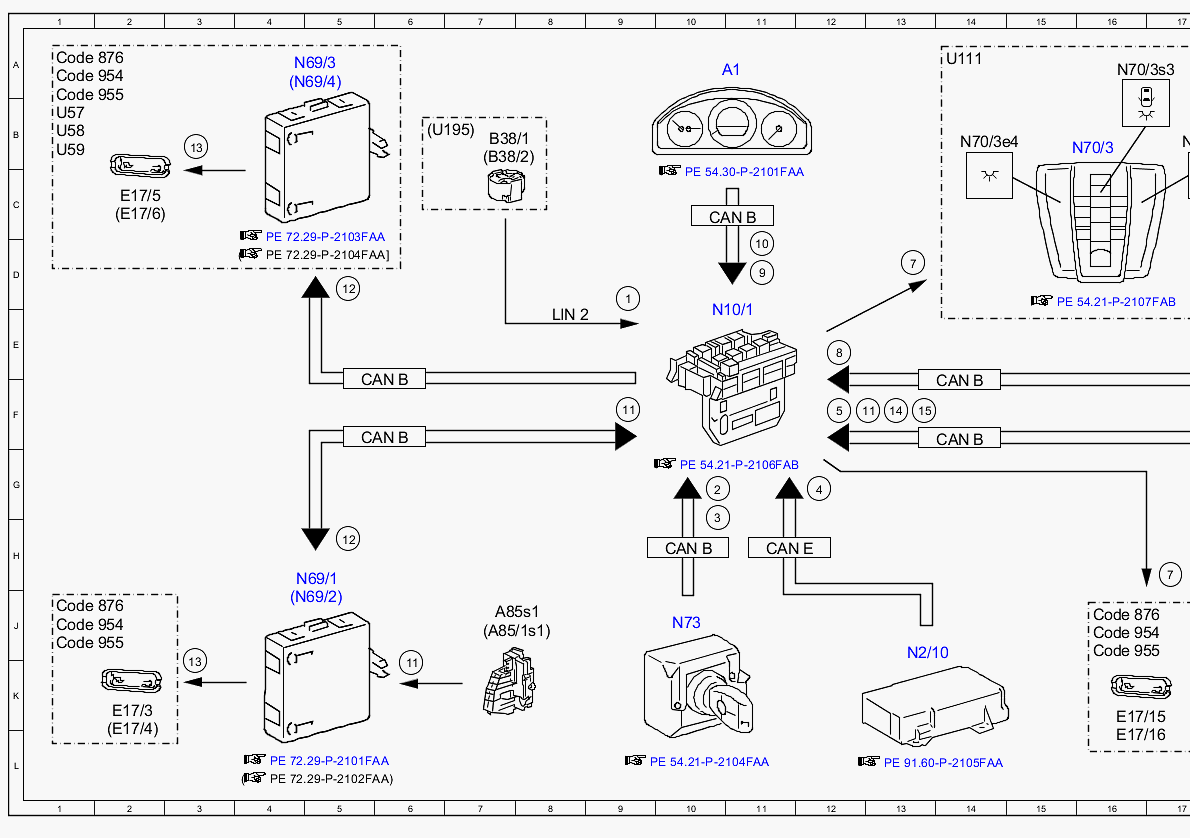

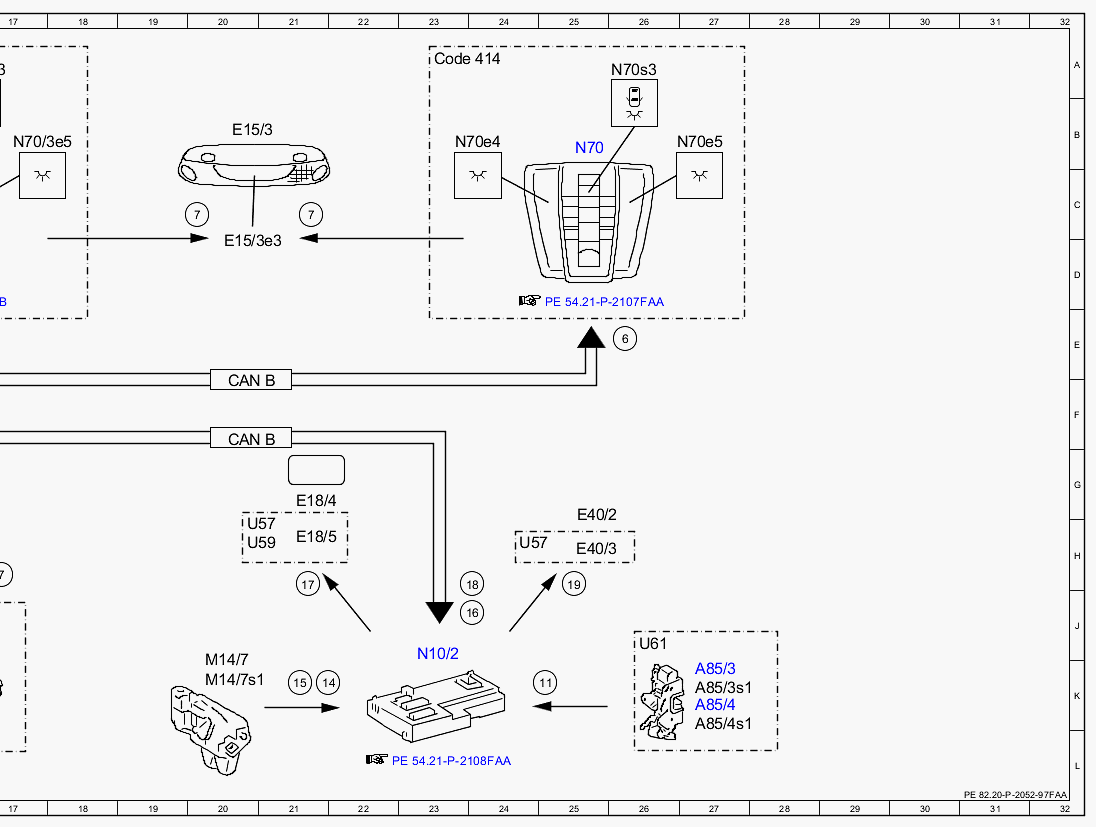

Automatic interior lights control electrical function schematic - PE82.20-P-2052-97FAA
MODEL 204 as of model year 2009 /YoM 08
| Code: | Designation: | Position: |
|---|---|---|
| 1 | "Night", signal | 9D |
| 10 | Vehicle speed, signal | 11D |
| 11 | Door rotary tumbler switch, status | 6K |
| 11 | Door rotary tumbler switch, status | 9F |
| 11 | Door rotary tumbler switch, status | 12F |
| 11 | Door rotary tumbler switch, status | 25K |
| 12 | Exit and warning lamp, request | 5H |
| 12 | Exit and warning lamp, request | 5D |
| 13 | Exit and warning lamp, actuation | 3K |
| 13 | Exit and warning lamp, actuation | 3B |
| 14 | Trunk lid rotary tumbler switch, status | 21K |
| 14 | Trunk lid rotary tumbler switch, status | 13F |
| 15 | Tailgate rotary tumbler switch, status | 13F |
| 15 | Tailgate rotary tumbler switch, status | 21K |
| 16 | Trunk illumination, request | 23J |
| 17 | Trunk illumination, actuation | 21H |
| 18 | Ambient lamp, request | 23H |
| 19 | Ambient lamp, actuation | 25H |
| 2 | Central locking (CL[ZV]), status | 10G |
| 3 | Circuit 15, status | 10H |
| 4 | Crash, signal | 12G |
| 5 | ATA [EDW] alarm, signal | 12F |
| 6 | Interior lamp, request | 26E |
| 7 | Interior lamp, actuation | 13D |
| 7 | Interior lamp, actuation | 17H |
| 7 | Interior lamp, actuation | 20C |
| 7 | Interior lamp, actuation | 21C |
| 8 | Automatic function switch, status | 12E |
| 9 | OFF delay time, status | 11D |
| A1 | Instrument cluster | 10A |
| A85/1s1 | Right front door rotary tumbler switch | 7J |
| A85/3 | Left rear door lock | 27K |
| A85/3s1 | Left rear door rotary tumbler switch | 27K |
| A85/4 | Right rear door lock | 27K |
| A85/4s1 | Right rear door rotary tumbler switch | 27K |
| A85s1 | Left front door rotary tumbler switch | 7J |
| B38/1 | Light sensor | 7B |
| B38/2 | Rain/light sensor | 7B |
| CAN B | Interior CAN | 6F |
| CAN B | Interior CAN | 10H |
| CAN B | Interior CAN | 14F |
| CAN B | Interior CAN | 6F |
| CAN B | Interior CAN | 10C |
| CAN B | Interior CAN | 14F |
| CAN B | Interior CAN | 20F |
| CAN B | Interior CAN | 20F |
| CAN E | Chassis CAN | 11H |
| Code 414 | Electric glass tilting/sliding roof | 23A |
| Code 876 | Interior lights package | 16J |
| Code 876 | Interior lights package | 1A |
| Code 876 | Interior lights package | 1J |
| Code 954 | AVANTGARDE | 16J |
| Code 954 | AVANTGARDE | 1A |
| Code 954 | AVANTGARDE | 1J |
| Code 955 | ELEGANCE | 16J |
| Code 955 | ELEGANCE | 1B |
| Code 955 | ELEGANCE | 1J |
| E15/3 | Rear dome lamp | 20B |
| E15/3e3 | Rear interior lamp | 20D |
| E17/15 | Right front footwell lamp | 16K |
| E17/16 | Left front footwell lamp | 16L |
| E17/3 | Left front door exit and warning lamp | 2K |
| E17/4 | Right front door exit and warning lamp | 2L |
| E17/5 | Left rear door exit and warning lamp | 2C |
| E17/6 | Right rear door exit and warning lamp | 2C |
| E18/4 | Right luggage compartment lamp | 21G |
| E18/5 | Left luggage compartment lamp | 21H |
| E40/2 | Environment light and warning light hatchback left | 25H |
| E40/3 | Environment light and warning light tailgate right | 25H |
| LIN 2 | Wiper/inside rearview mirror LIN | 8E |
| N10/1 | Front SAM control unit with fuse and relay module | 10E |
| N10/2 | Rear SAM control unit with fuse and relay module | 23J |
| N2/10 | Supplemental restraint system control unit | 13J |
| N69/1 | Left front door control unit | 5H |
| N69/2 | Right front door control unit | 4J |
| N69/3 | Left rear door control unit | 5A |
| N69/4 | Right rear door control unit | 4A |
| N70 | Overhead control panel control unit | 25B |
| N70/3 | Overhead control panel electronics | 15B |
| N70/3e4 | left front interior lamp | 14B |
| N70/3e5 | Right front interior lamp | 17B |
| N70/3s3 | Interior lamp automatic function switch | 16A |
| N70e4 | Left front interior lamp | 23B |
| N70e5 | Right front interior lamp | 27B |
| N70s3 | Interior lamp automatic function switch | 26A |
| N73 | Electronic ignition switch control unit | 10J |
| U111 | Valid for over head control panel without CAN | 14A |
| U195 | Valid for rain/light sensor | 6B |
| U58 | Valid for model 204.0 | 1B |
