Remove/install electrical oil pump for rear axle oil cooling - AR35.31-P-0595CBS
MODEL 204.3 with CODE P98 (Black Series)
Switch off ignition.
Risk of death caused by vehicle slipping or toppling off of the lifting platform. Lift vehicle on vehicle lift.
Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. See AS00.00-Z-0010-01A .

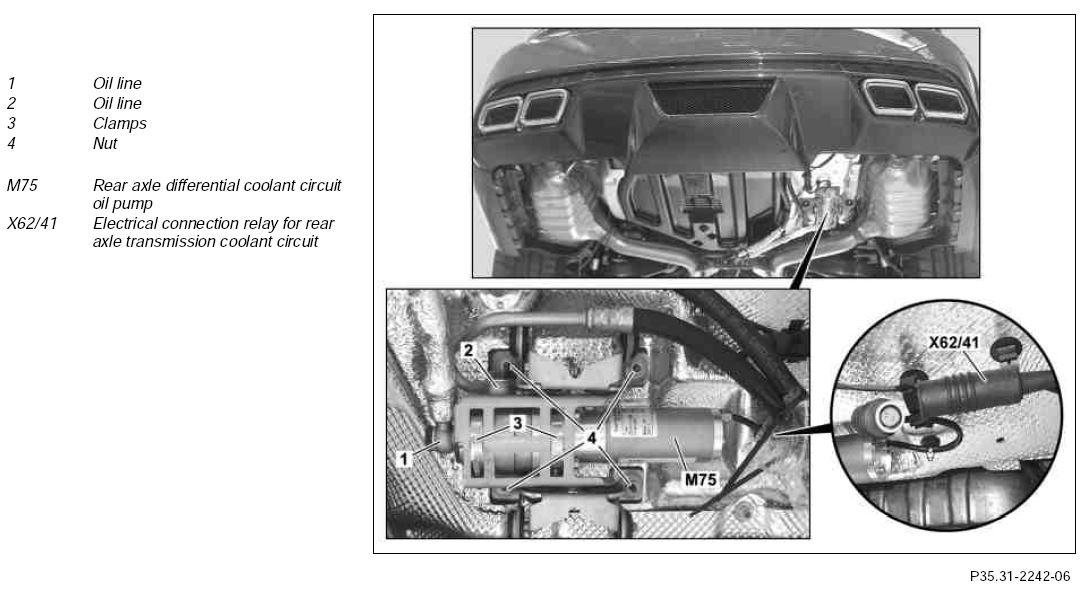

Detach electrical connection relay for rearaxle transmission coolant circuit (X62/41) from rear-axle transmission coolant circuit oil pump (M75).
Detach oil lines (1, 2) rear-axle transmission coolant circuit oil pump (M75).
Installation: Install new seals. Clean surroundings beforehand and seal connections immediately with stop plugs.
Unscrew nut (4) and remove rear-axle transmission coolant circuit oil pump (M75).
Install in the reverse order.
