Remove/install complete rear axle - AR35.10-P-0010CW

MODEL 204, 207

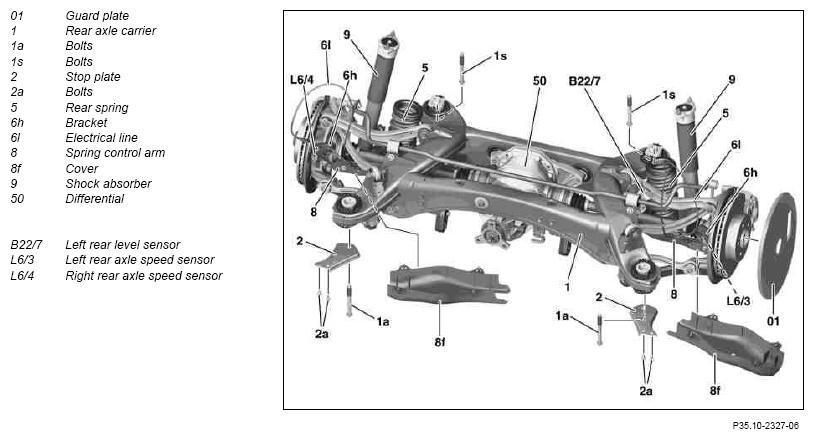

Fig 1: Identifying Complete Rear Axle Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of poisoning  caused by swallowing brake fluid. Risk of injury  caused by brake fluid coming into contact with skin and eyes.	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
		Installation: Attention, important information:  It is imperative that thread in the frame floor assembly is re-cut and blown out. Remaining glue residues in the thread prevent the necessary preload force of the bolt from being reached, despite the specified torque and angle being reached. If this is not observed, the faulty preload will generate bending forces on the bolt. This can lead to bolt failure.
		While working on the rear axle care must be taken to ensure that the surfaces of aluminum components do not get any scratches, cracks or notches. Otherwise the service life of the of the parts will be reduced.
		Installation:  Tighten nuts and bolts of chassis components only when vehicle is in the ready-to-drive condition.
1	Shift the transmission into position "N" or into idle position
2	Switch off ignition
3	Secure vehicle on vehicle lift		AR00.60-P-0100CW
4	Remove rear wheels		AP40.10-P-4050CW
5	Remove the left and right underfloor paneling	Model 207	AR61.30-P-1001EC
6	Remove left and right rear diagonal strut	Model 207.4	*BA61.10-P-1007-01H
			*BA61.10-P-1008-01H
			*BA61.10-P-1009-01H
7.1	Remove rear muffler	Vehicles with gasoline engine except engine 156	AR49.10-P-7100CW
		Vehicles with diesel engine	AR49.10-P-7100CWI
7.2	Detach exhaust system at connecting point of catalytic converter/center muffler and remove	Engine 156	AR49.10-P-7100CW
8	Detach propeller shaft from differential (50)		AR41.10-P-0050CW
9	Remove rear heat shield above propeller shaft
10	Separate brake cable at separation point and unclip brake cables from brackets	Remove middle brake cable.	AR42.20-P-0523CW
11	Detach covers (8f) from spring control arms (8)
12	Remove rear springs (5)		AR32.20-P-0230CW
13	Detach shock absorbers (9) from spring control arms (8)		*BA32.25-P-1001-03M
14	Detach rpm sensors (L6/3, L6/4) from wheel carriers
15	Pull right rear brake wear sensor out of electrical connector	Vehicles with brake wear sensor
16.1	Unscrew electrical connector from right rear brake caliper and unclip electrical line of right rear brake wear sensor from brackets on right wheel carrier	Vehicles without code (483) ADVANCED AGILITY package and with right rear brake wear sensor
16.2	Disconnect electrical connectors of left, right rear axle damping valve units on dampers (9), detach electrical lines from brake calipers and unclip from brackets on wheel carriers	Vehicles with code (483) ADVANCED AGILITY package
17.1	Separate electrical connector on left rear level sensor (B22/7) and unclip from bracket	Vehicles with bi-xenon headlamps and without code (483) ADVANCED AGILITY package
17.2	Disconnect electrical connectors on left, right level sensors (B22/7, B22/10) and unclip from brackets	Vehicles with code (483) ADVANCED AGILITY package
18.1	Remove left and right rear brake calipers	for repair work on fuel tank or rear axle Model 204 without engine 156	AR42.10-P-0250CW
		Model 204 with engine 156	AR42.10-P-0250CMG
		Model 207	AR42.10-P-0250EW
18.2	Detach left and right rear brake hose from brake lines	for bodywork or exchange of complete rear axle Model 204	AR42.10-P-0013CW
		Model 207	AR42.10-P-0013EW
		Seal off line connections immediately with plugs. The brake fluid expansion reservoir must not be allowed to run completely empty.
		When releasing or fastening the brake line on the brake hose make sure that its bracket is not twisted. Use an open-end wrench as a countersupport on the sides of the brake hose fitting.
		Installation:  The brake hoses must not be twisted after being tightened (danger of cracking).
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on installing brake hoses		AH42.10-P-9406-01A
19	Support differential (50) with transmission jack and transmission plate and lash down securely
20	Install guard plates (01)		AR42.00-P-0100-01A
			Fig 2
21	Remove bolts (1s)	Installation:  Re-cut thread in frame floor assembly and blow out. By doing so, a perfect threaded connection is guaranteed.
		Use new bolts (1s).
			*BA35.10-P-1002-01N
22	Remove bolts (1a, 2a) and stop plates (2)	Installation:  Re-cut thread in frame floor assembly and blow out. By doing so, a perfect threaded connection is guaranteed.
		Use new bolts (1a).
			*BA35.10-P-1001-01N
			*BA35.10-P-1003-01N
23	Lower rear axle.
24	Install in the reverse order

REAR AXLE SHOCK ABSORBER

Number	Designation			Model 204	Model 207
BA32.25-P-1001-03M	Self-locking nut, shock absorber to spring control arm	Stage 1	Nm	55	55
		Stage 2	∠°	60	60

REAR AXLE CARRIER

Number	Designation			Model 204	Model 207
BA35.10-P-1001-01N	Self-locking bolt, front rear axle carrier rubber bushing to frame floor	Stage 1	Nm	80	80
		Stage 2		Releasing	Releasing
		Stage 3	Nm	80	80
		Stage 4	∠°	90	90
BA35.10-P-1002-01N	Self-locking bolt, rear axle carrier rear rubber bushing to frame floor	Stage 1	Nm	80	80
		Stage 2		Releasing	Releasing
		Stage 3	Nm	80	80
		Stage 4	∠°	90	90
BA35.10-P-1003-01N	Bolt, stop plate to body		Nm	28	28

FRAME FLOOR ASSEMBLY

Number	Designation		Model 207.4
BA61.10-P-1007-01H	Bolt, rear diagonal strut on spare wheel well	Nm	80
BA61.10-P-1008-01H	Bolt, rear diagonal strut on longitudinal member	Nm	80
BA61.10-P-1009-01H	Bolt, rear diagonal strut to bracket	Nm	17

Fig 2: Identifying Guard Plate (220 589 01 31 00)

Courtesy of MERCEDES-BENZ USA
