Remove/install rear seat belts (MODEL 204.0) - AR91.40-P-0681CW

MODEL 204.0

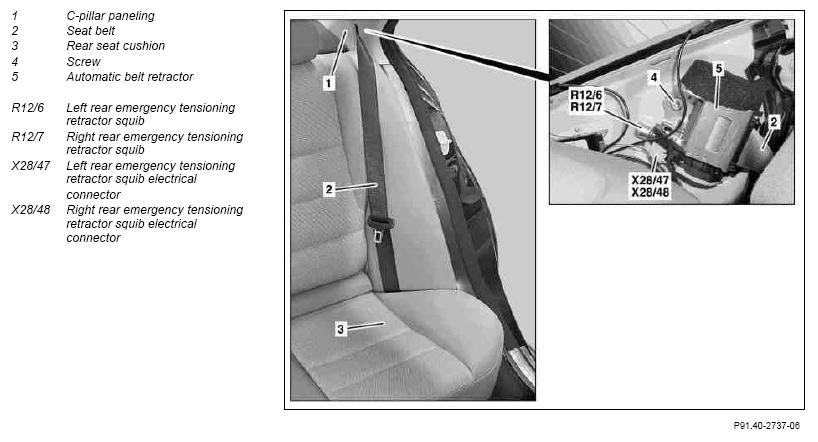

Fig 1: Identifying Rear Seat Belts Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury  caused by performing testing or repair work on airbag or emergency tensioning retractor units.	Store airbag units with deployment side facing up; do not expose to temperatures greater than 100°C. When working on these units, disconnect the power supply.	AS91.00-Z-0001-01A
	Risk of injury  caused by release of spring in the automatic belt retractor is released.	Never disassemble automatic belt retractors.	AS91.00-Z-0002-01A
	Notes on performing repair, body work and welding on vehicles with airbags and ETR units		AH91.00-P-0002-01M
	Assessment of airbag and belt tensioner units in accident vehicles		AH91.00-P-0006-01B
	Legal requirements on handling and storing airbags and emergency tensioning retractor units		AH91.00-P-0004-01A
1	Disconnect ground cable		AR54.10-P-0003CW
2	Remove left or right C-pillar paneling (1)		AR68.30-P-4490CW
3	Disconnect left rear emergency tensioning retractor squib electrical connector (X28/47) of left rear emergency tensioning retractor squib (R12/6) or right rear emergency tensioning retractor squib electrical connector (X28/48) of right rear emergency tensioning retractor squib (R12/7) from automatic belt retractor (5)
4	Remove bolt (4) from automatic belt retractor (5)		*BA91.40-P-1013-01P
5	Remove automatic belt retractor (5)	Observe different versions for left and right automatic belt retractors (5), do not install seat belt (2) when twisted. Correctly insert catch on automatic belt retractor (5) into C-pillar. If the automatic belt retractor (5) is replaced, the defective automatic belt retractor (5) must be disposed of properly. Refer to: ↓
		Notes on disposing of airbag and emergency tensioning retractor units	OS91.00-P-0001-01A
6	Install in the reverse order
7	Check supplemental restraint system (SRS) with STAR DIAGNOSIS	After replacing the automatic belt retractor (5).
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 204.0
BA91.40-P-1013-01P	Bolt to rear inertia reel	Nm	32
