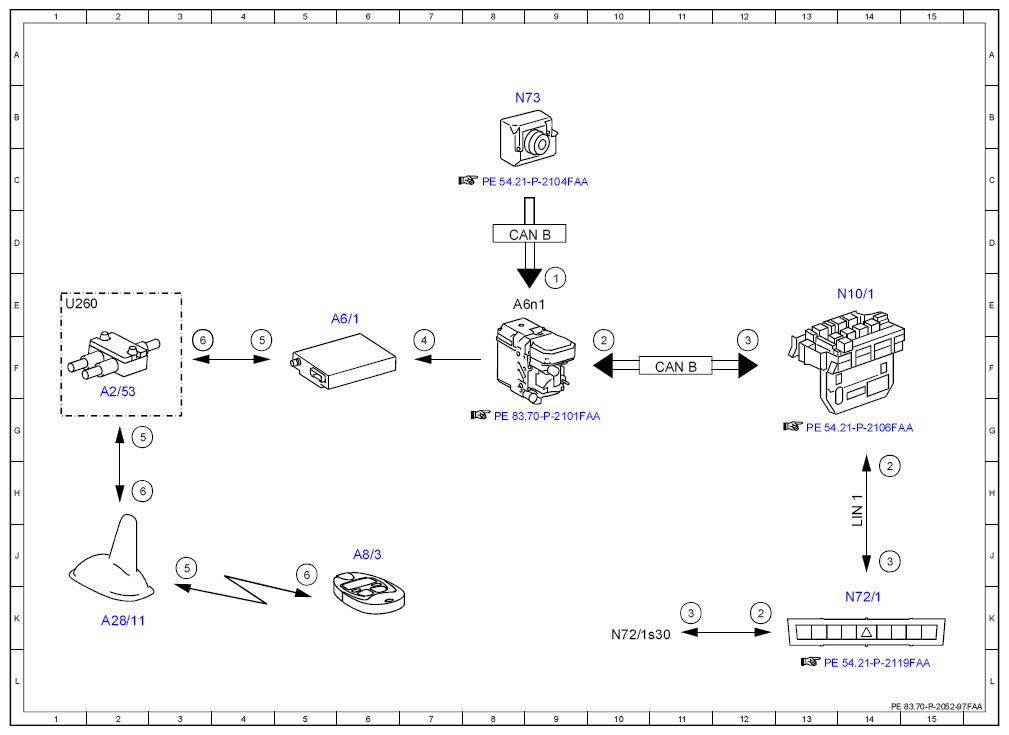

| 1 |
Circuit 15C, status |
9E |
| 2 |
Stationary heater button, status |
12K |
| 2 |
Stationary heater button, status |
14H |
| 2 |
Stationary heater button, status |
10F |
| 3 |
Stationary heater button, request |
11K |
| 3 |
Stationary heater button, request |
14J |
| 3 |
Stationary heater button, request |
12F |
| 4 |
Open learning time window, request |
7F |
| 5 |
Stationary heater radio remote control transmitter, status |
3J |
| 5 |
Stationary heater radio remote control transmitter, status |
2G |
| 5 |
Stationary heater radio remote control transmitter, status |
4F |
| 6 |
Radio remote control receiver / stationary heater message |
5J |
| 6 |
Radio remote control receiver / stationary heater message |
2H |
| 6 |
Radio remote control receiver / stationary heater message |
3F |
| A2/53 |
Mobile phone and stationary heater radio remote control antenna splitter |
2F |
| A28/11 |
Multifunction antenna |
2K |
| A6/1 |
Stationary heater radio remote control receiver |
6E |
| A6n1 |
Stationary heater control unit |
8E |
| A8/3 |
Stationary heater radio remote control transmitter |
6J |
| CAN B |
Interior CAN |
8D |
| CAN B |
Interior CAN |
11F |
| LIN 1 |
Instrument panel LIN |
14H |
| N10/1 |
Front SAM control unit with fuse and relay module |
14E |
| N72/1 |
Upper control panel control unit |
14K |
| N72/1s30 |
Stationary heater button |
10K |
| N73 |
Electronic ignition switch control unit |
8B |
| U260 |
Valid for comfort telephony |
1E |
