Prepare panoramic roof frame rear glass roof for installation - AR77.21-P-0600-05CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1089-02A | Repair kit, installing window, 1-component adhesive, replaced by: A 221 670 81 01 | A 221 670 21 01 |

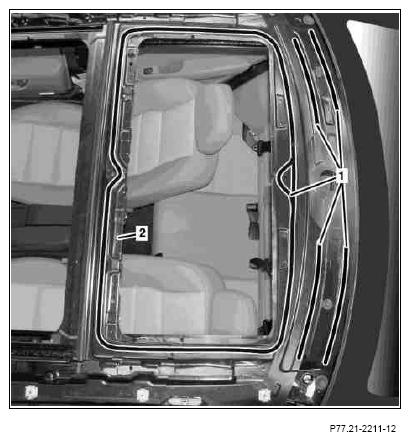

Shown on model 204.0
Do not touch present adhesive beads and bonding surfaces (1) with bare fingers. Fingerprints should not be present in the area of the adhesive beads and bonding surfaces (1) on the panoramic roof frame (2). The bonding surfaces (1) and adhesive beads must be free of dust, oil, grease, wax, dirt residues and other adhesive components, otherwise the adhesive force of the glued connection is impaired.
- Cut present adhesive beads on bonding surfaces (1) on panoramic roof frame (2) down to a remaining height of approx. 1 mm to 2 mm. Remove adhesive material residues. Remove remaining pieces not cut off completely from adhesive beads. Wet/dry vacuum cleaner gotis://P_00.12_06.0
- Repair paint damage on panoramic roof frame (2).
- Apply primer to bonding surfaces (1) where no remaining adhesive is present.
Observe processing instructions for primer to prevent adhesion problems with the adhesive material when installing the window.
