Prepare panoramic roof frame for installation - AR77.21-P-0800-02CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1031-02A | Repair kit, installing window 500662 01/03/05/07/09/11 | A 973 670 00 93 |

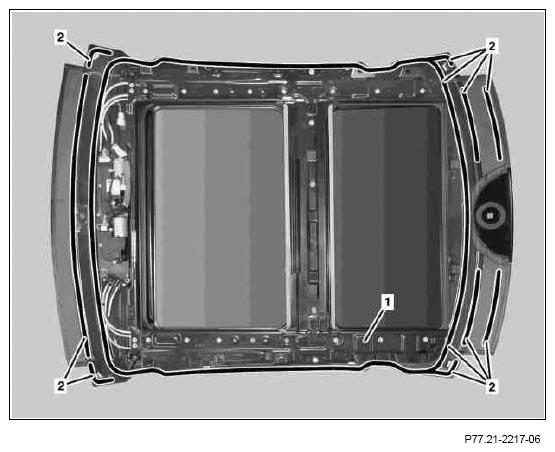

Do not touch bonding surfaces (2) with bare fingers. The bonding surfaces (2) must be free of dust, oil, grease, wax, dirt residues and other adhesive components. Otherwise the strength of the glued connection is not ensured.
- Check panoramic roof frame (1) with all detachable body components for damage.
- Install cup suction tool on outer side of panoramic roof frame (1) and lay panoramic roof frame (1) down to suitable subsurface with inside pointing upward.
Cup suction tool http://gotis.aftersales.mercedes-benz.com
- Apply cleaner with part of paper towel to bonding surfaces (2) on panoramic roof frame (1) and wipe with remaining paper towel.
Apply cleaner only to bonding surfaces (2). Allow cleaner to dry completely.
