Apply glue for panoramic roof frame - AR77.21-P-0800-03CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1031-02A | Repair kit, installing window 500662 01/03/05/07/09/11 | A 973 670 00 93 |

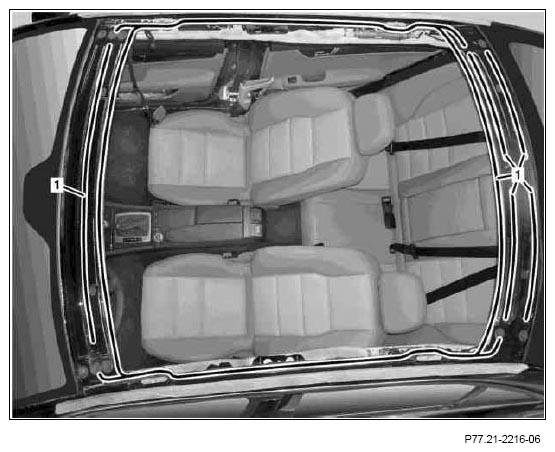

Do not touch bonding surfaces (1) with bare fingers. The bonding surfaces (1) must be free of dust, oil, grease, wax, dirt residues and other adhesive components. Otherwise the strength of the glued connection is not ensured.
- Guide application nozzle on bonding surfaces (1) along body flange. Uniformly apply glue in shape of an adhesive bead at a height of approx. 14 mm and width of approx. 8 cm.
Electric cartridge gun http://gotis.aftersales.mercedes-benz.com
Immediately remove dirt from glue.
