Panoramic sliding roof control unit, component description - GF77.20-P-4106CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2 with CODE (413) Panoramic glass roof with top sliding roof up to Model Year 8
Illustrated on model 204.0

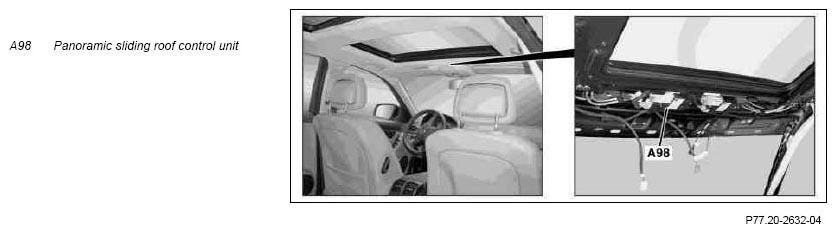

Location
The panoramic sliding roof control unit is located on the left front on the frame of the panoramic sliding roof.
Design
The panoramic sliding roof control unit includes the following components:
- Hall sensor 1, panoramic sliding roof (A98b1)
- Hall sensor 2, panoramic sliding roof (A98b2)
- Panoramic sliding roof motor (A98m1)
- Panoramic sliding roof control unit (A98n1)
Task
The panoramic sliding roof control unit actuates all functions of the panoramic sliding roof. The panoramic sliding roof control unit is a subscriber on the interior CAN.
Discrete inputs
- Circuit 30
- Circuit 31
- Panoramic sliding roof switch (N70/3s1)
- Hall sensor 1, panoramic sliding roof roller sun blind (M12/5b1)
- Hall sensor 2, panoramic sliding roof roller sun blind (M12/5b2)
Discrete output
- Panoramic sliding roof roller sun blind drive unit (M12/5)
