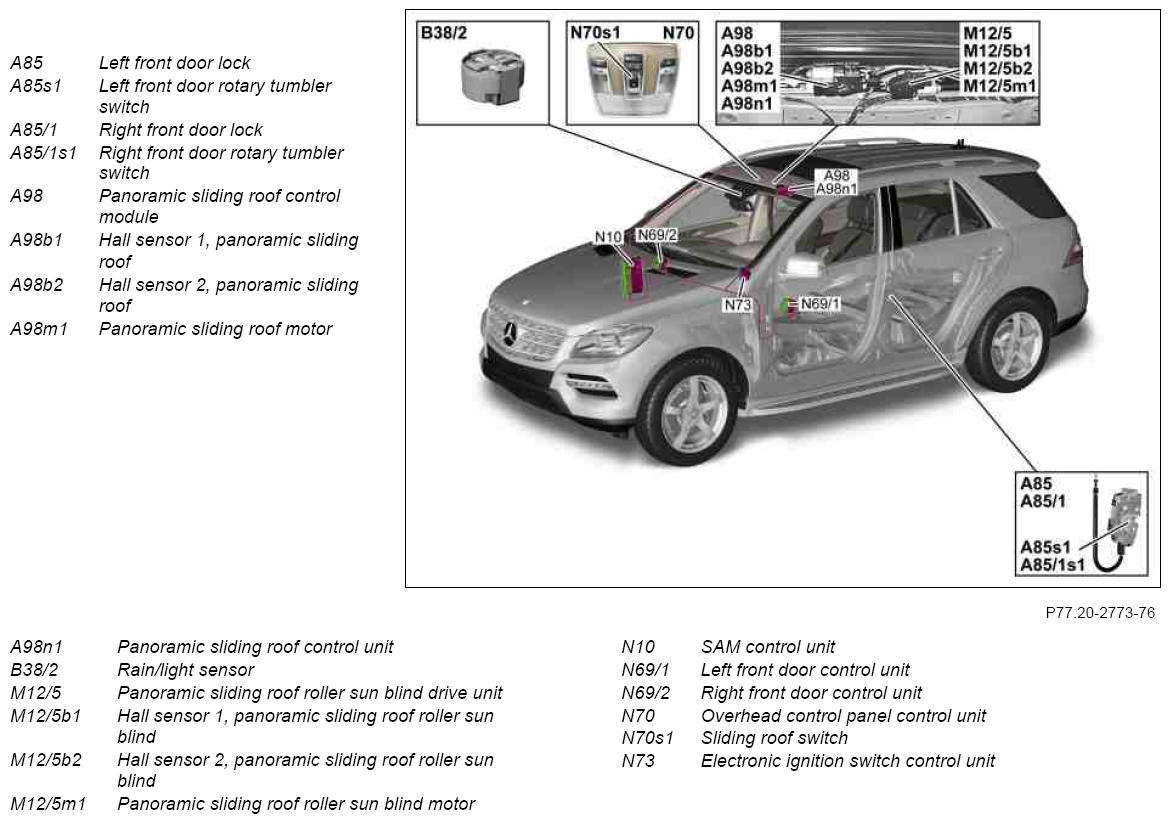

Overview of system components, panoramic sliding sunroof - GF77.20-P-9991GR
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 with CODE (413) Panoramic glass roof with top sliding roof
Shows model 166.0
| Panoramic sliding sunroof control module, component description | A98, A98n1 | GF77.20-P-4106GR |
| SAM control unit, component description | N10 | GF54.21-P-4157GR |
| Left front door control unit, component description | N69/1 | GF72.29-P-6001GR |
| Right front door control unit, component description | N69/2 | GF72.29-P-6009GR |
| Overhead control panel control unit, component description | N70 | GF82.20-P-5216GR |
| Electronic ignition lock control unit, component description | N73 | GF80.57-P-6001GR |
| Table of contents, function description for electric panoramic sliding sunroof | GF77.20-P-0997GR |
