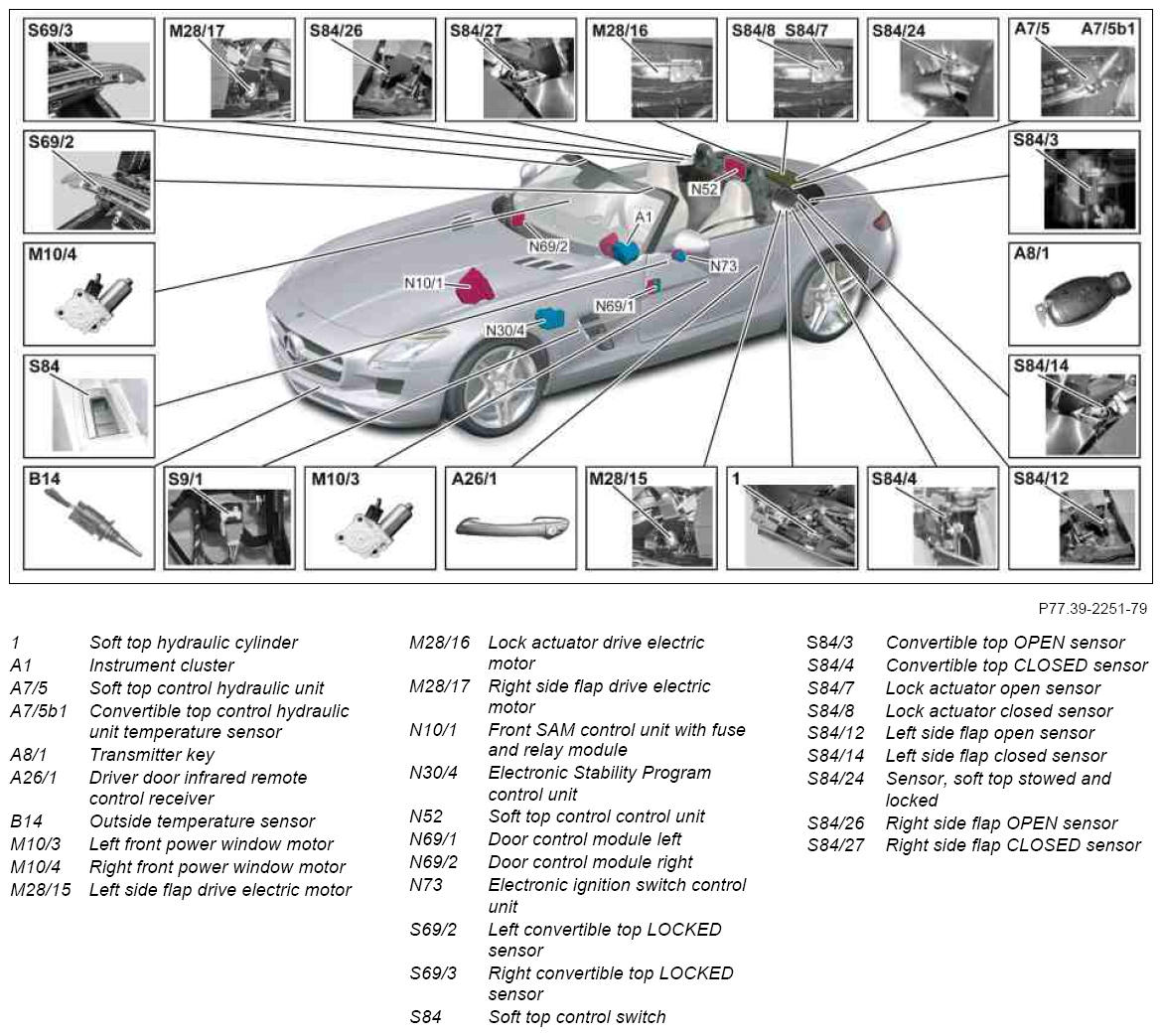

Overview of system components for soft top, component description - GF77.30-P-9997RQ
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 197.4
| Instrument cluster, component description | A1 | GF54.30-P-6000RQ |
| Front SAM control unit with fuse and relay module, component description | N10/1 | GF54.21-P-6070RQ |
| Electronic Stability Program control unit, component description | N30/4 | GF42.45-P-5119RQ |
| Soft top control unit, component description | N52 | GF77.39-P-3211RQ |
| Component description for left door control unit | N69/1 | GF72.29-P-4124RQ |
| Component description for right door control unit | N69/2 | GF72.29-P-4128RQ |
| Electronic ignition lock control unit, component description | N73 | GF80.57-P-6001RQ |
| Soft top hydraulic unit, component description | A7/5 | GF77.37-P-3220RQ |
| Table of contents for function description of soft top | GF77.30-P-0999RQ |
