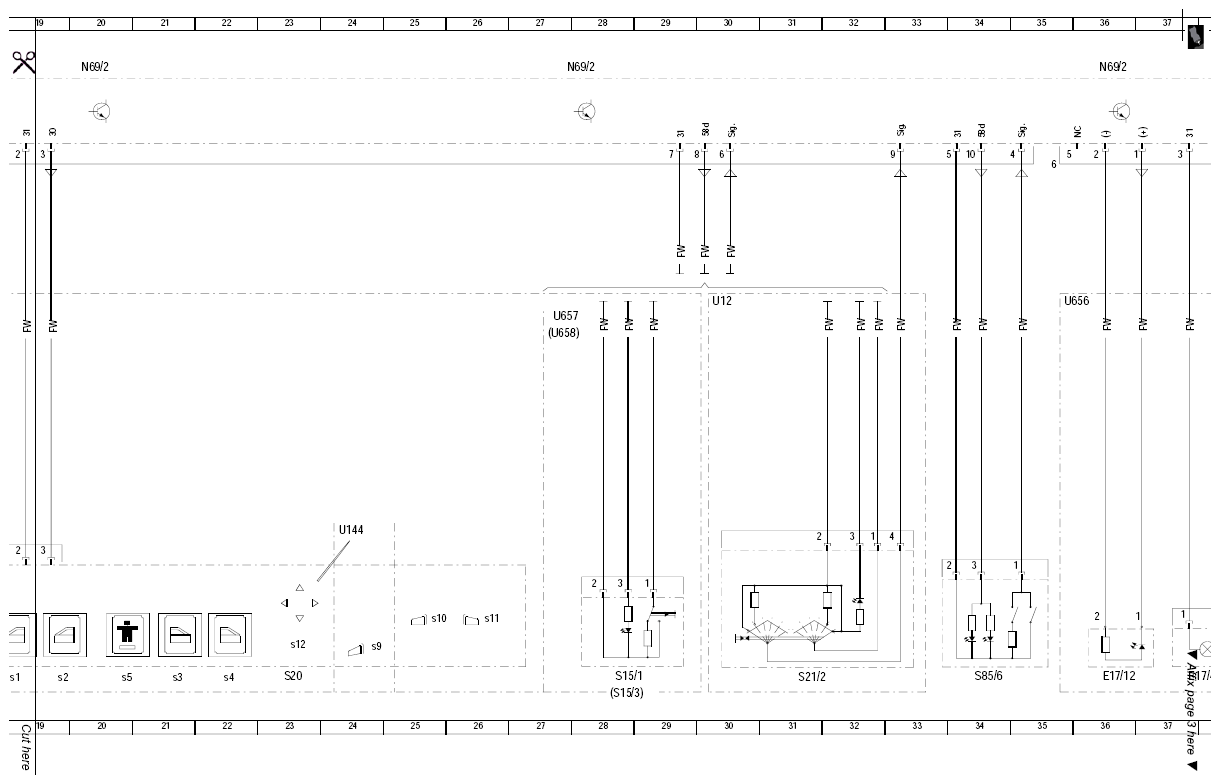

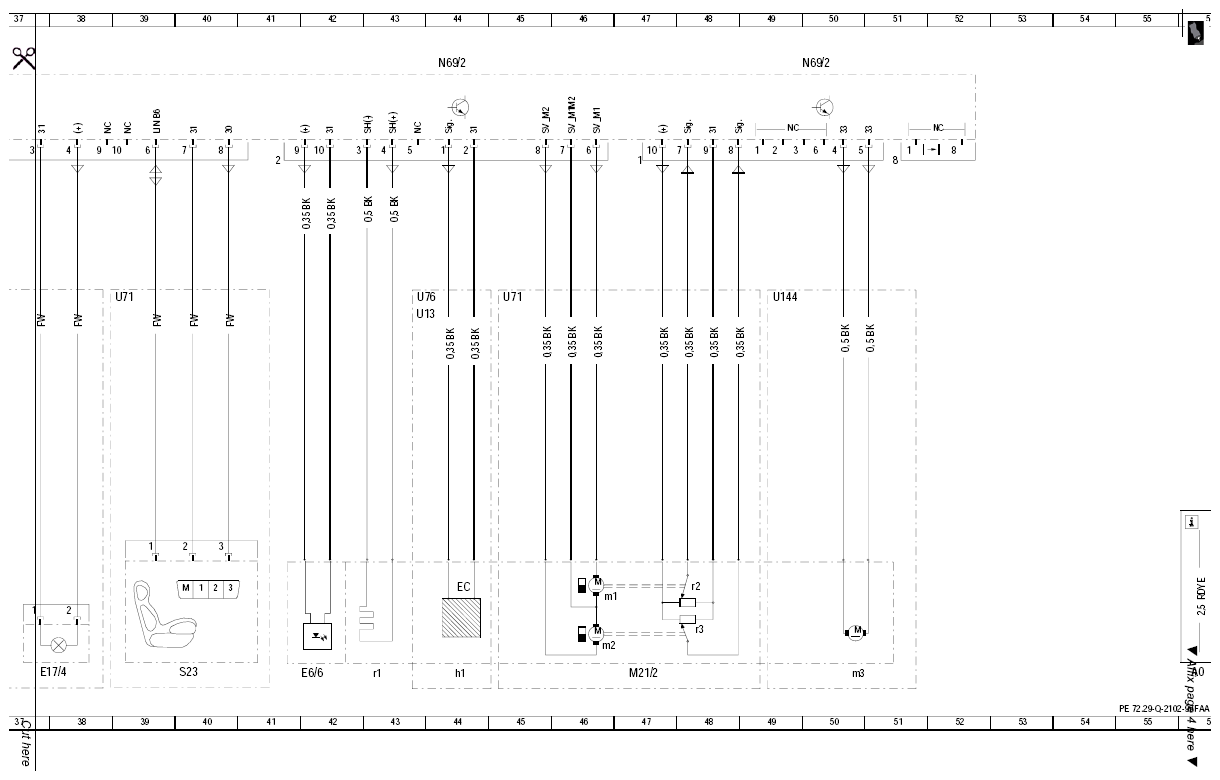

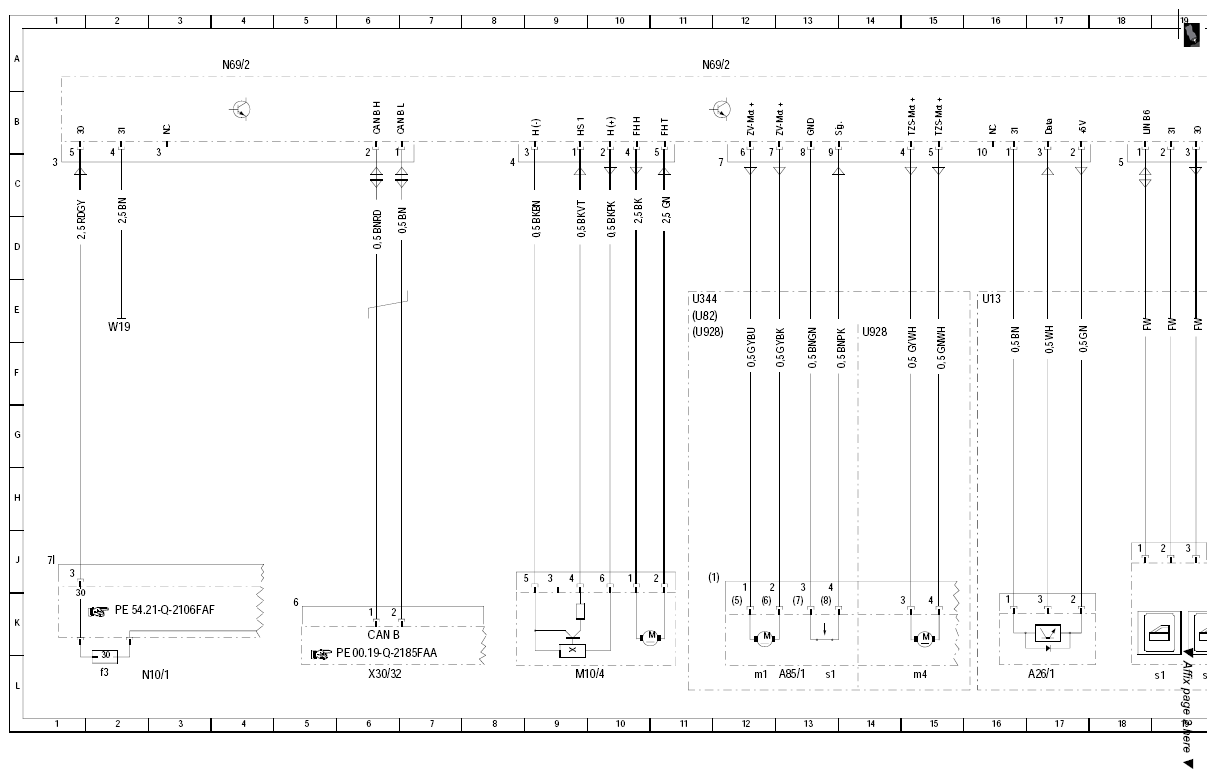

Wiring diagram for right front door control unit (DCU) - PE72.29-P-2102-99FAA
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|

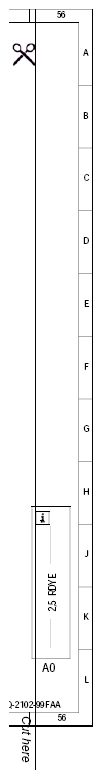

| A0 | Explanation of color codes | 56 L |
| A26/1 | Driver-side front door infrared remote control receiver | 16 L |
| A85/1 | Right front door lock | 13 L |
| CAN B | Interior CAN | 6 K |
| E17/12 | Right front door handle illumination | 36 L |
| E17/4 | Right front door exit and warning lamp | 37 L |
| E6/6 | Right exterior mirror turn signal lamp | 41 L |
| LIN B6 | Right door LIN | 18 B |
| LIN B6 | Right door LIN | 39 B |
| M10/4 | Right front door power window motor | 9 L |
| M21/2 | Right outside mirror | 47 L |
| M21/2h1 | Automatic dimming mirror | 44 L |
| M21/2m1 | Vertical inclination adjustment actuator motor | 46 K |
| M21/2m2 | Horizontal inclination adjustment actuator motor | 46 L |
| M21/2m3 | Outside mirror fold-in/fold-out electric motor | 50 L |
| M21/2r1 | Mirror heater | 42 L |
| M21/2r2 | Vertical inclination adjustment potentiometer | 47 K |
| M21/2r3 | Horizontal inclination adjustment potentiometer | 47 K |
| N10/1 | Front SAM control module with fuse and relay module | 2 L |
| N10/1f3 | Fuse 3 | 1 L |
| N69/2 | Right front door control unit | 4 A |
| N69/2 | Right front door control unit | 11 A |
| N69/2 | Right front door control unit | 20 A |
| N69/2 | Right front door control unit | 27 A |
| N69/2 | Right front door control unit | 36 A |
| N69/2 | Right front door control unit | 44 A |
| N69/2 | Right front door control unit | 49 A |
| S15/1 | Trunk lid release button | 30 L |
| S15/3 | Driver tailgate control button | 30 L |
| S20 | Driver-side power window and outside mirror adjustment switch group | 23 L |
| S20s1 | Left front power window switch | 18 L |
| S20s10 | Left outside mirror adjustment switch | 25 K |
| S20s11 | Right outside mirror adjustment switch | 26 K |
| S20s12 | Outside mirror adjustment switch | 23 K |
| S20s2 | Right front power window switch | 19 L |
| S20s3 | Left rear power window switch | 21 L |
| S20s4 | Right rear power window switch | 22 L |
| S20s5 | Rear side window child safety lock switch | 20 L |
| S20s9 | Outside mirror fold-in/fold-out switch | 24 L |
| S21/2 | Passenger-side power window switch | 33 L |
| S23 | Right front seat adjustment switch group | 40 L |
| S85/6 | Right front door central locking interior switch | 28 L |
| U12 | Valid for left-hand steering | 32 E |
| U13 | Valid for right-hand steering | 16 E |
| U13 | Valid for right-hand steering | 43 E |
| U144 | Valid for outside mirror fold-in/out function. | 24 J |
| U144 | Valid for outside mirror fold-in/out function. | 49 E |
| U344 | Valid for all except KEYLESS GO | 11 E |
| U656 | Valid for interior lights package | 35 E |
| U657 | Valid for trunk lid release | 29 E |
| U658 | Valid for tailgate control | 29 F |
| U71 | Valid for fully electric seat adjustment with memory function | 39 E |
| U71 | Valid for fully electric seat adjustment with memory function | 45 E |
| U76 | Valid for entrance/exit lamps | 43 E |
| U82 | Valid for KEYLESS GO | 11 E |
| U928 | Valid for England | 11 F |
| U928 | Valid for England | 14 F |
| W19 | Right front seat crossmember ground point | 2 E |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 6 L |
