Wiring diagram of front SAM control unit with fuse and relay module (N10/1) - PE54.21-P-2106-97FAD

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
Code: Designation: Position:
A0 Color code key 64L
A98 Panoramic sliding roof control module
CAN B Interior CAN 28K
Code 580 Automatic air conditioning 9J
Code 580 Automatic air conditioning 30G
Code 581 Comfort automatic air conditioning 9J
Code 581 Comfort automatic air conditioning 30G
Code B03 ECO start/stop function 1K
E17/15 Right front footwell lamp 18L
E17/16 Left front footwell lamp 17L
N10/1 Front SAM control unit with fuse and relay module 4A
N10/1 Front SAM control unit with fuse and relay module 12A
N10/1 Front SAM control unit with fuse and relay module 20A
N10/1 Front SAM control unit with fuse and relay module 28A
N10/1 Front SAM control unit with fuse and relay module 35A
N10/1 Front SAM control unit with fuse and relay module 45A
N10/1 Front SAM control unit with fuse and relay module 52A
N10/1 Front SAM control unit with fuse and relay module
N10/1f12 Fuse 12 33A
N10/1f17 Fuse 17 24A
N10/1f23 Fuse 23 41A
N10/2 Rear SAM control unit with fuse and relay module 40L
N22/7 Automatic air conditioning control and operating unit 32L
N3/9 CDI control unit 44L
N3/9 CDI control unit 48L
N70 Overhead control panel control unit 7L
N70 Overhead control panel control unit
N70/3 Overhead control panel electronics 7L
N70/3 Overhead control panel electronics 21L
N70/3 Overhead control panel electronics
N70/3b1 Interior temperature sensor with integrated fan 22L
N72/1 Upper control panel control unit 36L
S1 Exterior lights switch 14L
U1018 Valid for gasoline engine 276 61G
U110 Valid for overhead control panel with CAN 5G
U110 Valid for overhead control panel with CAN 23G
U111 Valid for overhead control panel without CAN 5G
U111 Valid for overhead control panel without CAN 19G
U112 Valid for footwell lamps 16G
U12 Valid for left-hand drive vehicles 16H
U129 Valid for panoramic sliding roof 23G
U13 Valid for right-hand drive vehicles 16H
U152 Valid for gasoline engine 156 56G
U152 Valid for gasoline engine 156 56G
U157 Valid for combustion engine 272 DE 50G
U169 Valid for gasoline engine 271 DE 51G
U240 Valid for all except ECO start/stop function 1J
U541 Valid for TELEAID emergency call system 5G
U739 Valid for gasoline engine 271 continuous fuel injection system (electronic) 50G
U74 Valid for diesel engines 38G
U740 Valid for diesel engine 646 46G
U740 Valid for diesel engine 646 57G
U819 Valid for gasoline engine 272 50G
U880 Valid for diesel engine 642 42G
U880 Valid for diesel engine 642 59G
U936 Valid for increased engine power 59J
U937 Valid for all except increased engine power 59J
U948 Valid for diesel engine 651 42G
U948 Valid for diesel engine 651 42G
U948 Valid for diesel engine 651 53G
U948 Valid for diesel engine 651 55G
W15/5 Left front footwell ground point 18G
W15/7 Right front footwell ground point 18G
X18/37 Emergency call system button electrical connector 7H
X204 Panoramic sliding roof electrical connector
X26 Interior and engine wiring harness electrical connector 50H
X26 Interior and engine wiring harness electrical connector 54H
X26 Interior and engine wiring harness electrical connector 52H
X26 Interior and engine wiring harness electrical connector 56H
X26 Interior and engine wiring harness electrical connector 58H
X26 Interior and engine wiring harness electrical connector 60H
X26 Interior and engine wiring harness electrical connector 62H
X30/32 Left vehicle floor interior CAN voltage distributor electrical connector 28L
Y94 Quantity control valve 54L
Z50/1 Circuit 58d instrument panel connector sleeve 10H
Z50/3 Circuit 31 instrument panel connector sleeve 18H
Z6/85 Sensor ground connector sleeve 32H
Z7/21 Air conditioning circuit 30 connector sleeve 31H
Z7/35 Circuit 87 M1e connector sleeve 44H
Z7/35z1 Circuit 87 M1e connector sleeve 51L
Z7/35z1 Circuit 87 M1e connector sleeve 58L
Z7/35z1 Circuit 87 M1e connector sleeve 58L
Z7/38z1 Circuit 87 M1i connector sleeve 50L
Z7/38z1 Circuit 87 M1i connector sleeve 62L
Z7/38z2 Circuit 87 M1i connector sleeve 50L
Z7/5 Circuit 87 connector sleeve 52L
Z7/5z1 Circuit 87 connector sleeve 56L
Z7/5z1 Circuit 87 connector sleeve 58L
Z7/5z1 Circuit 87 connector sleeve 60L
Z7/5z2 Circuit 87 connector sleeve 60L
Z80z3 Cross section reduction connector sleeve 40H
Z81 Circuit 58d connector sleeve 4H

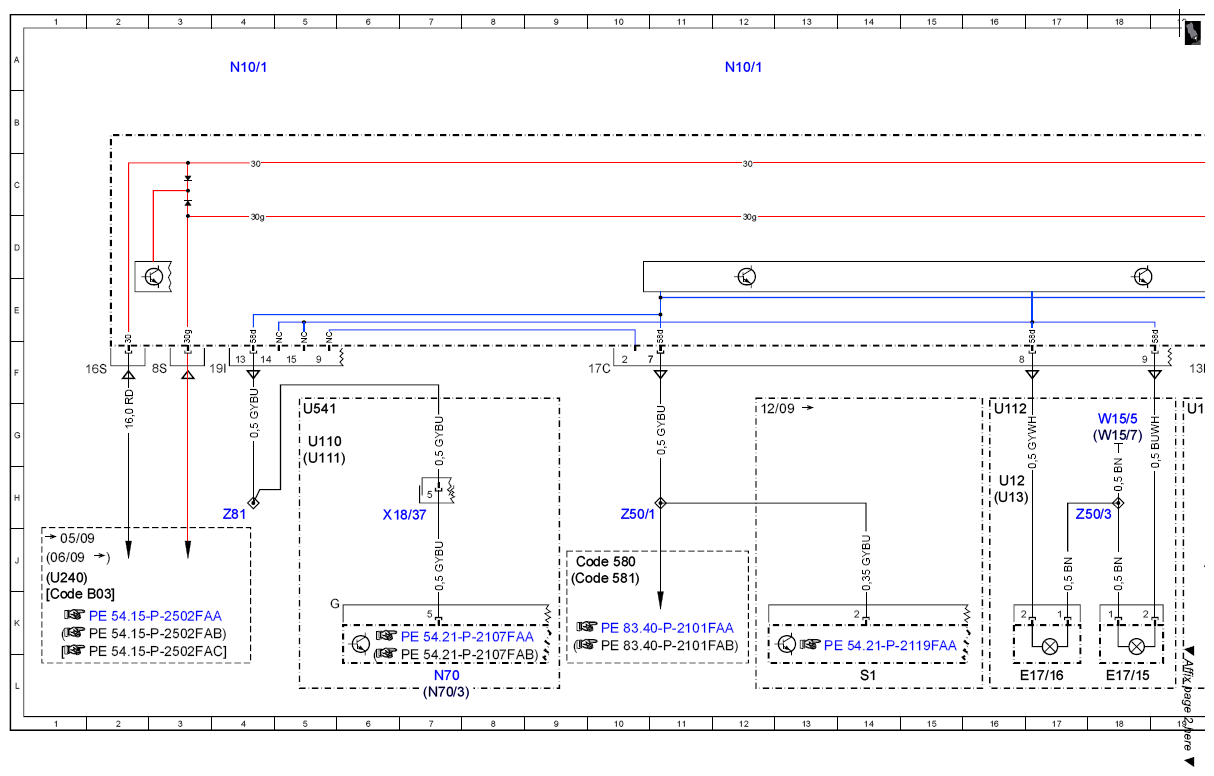

Fig 1: Front SAM Control Unit With Fuse And Relay Module - Wiring Diagram (1 Of 4)
G07674023Courtesy of MERCEDES-BENZ USA

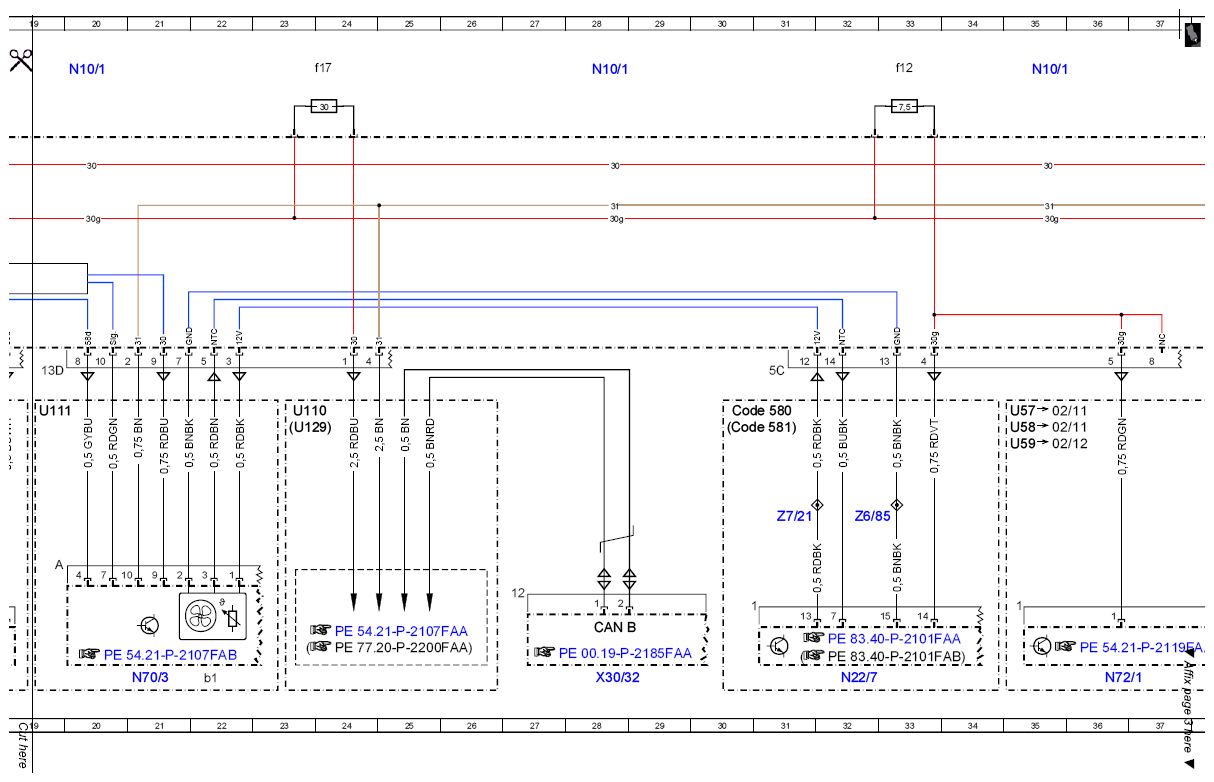

Fig 2: Front SAM Control Unit With Fuse And Relay Module - Wiring Diagram (2 Of 4)
G07674024Courtesy of MERCEDES-BENZ USA

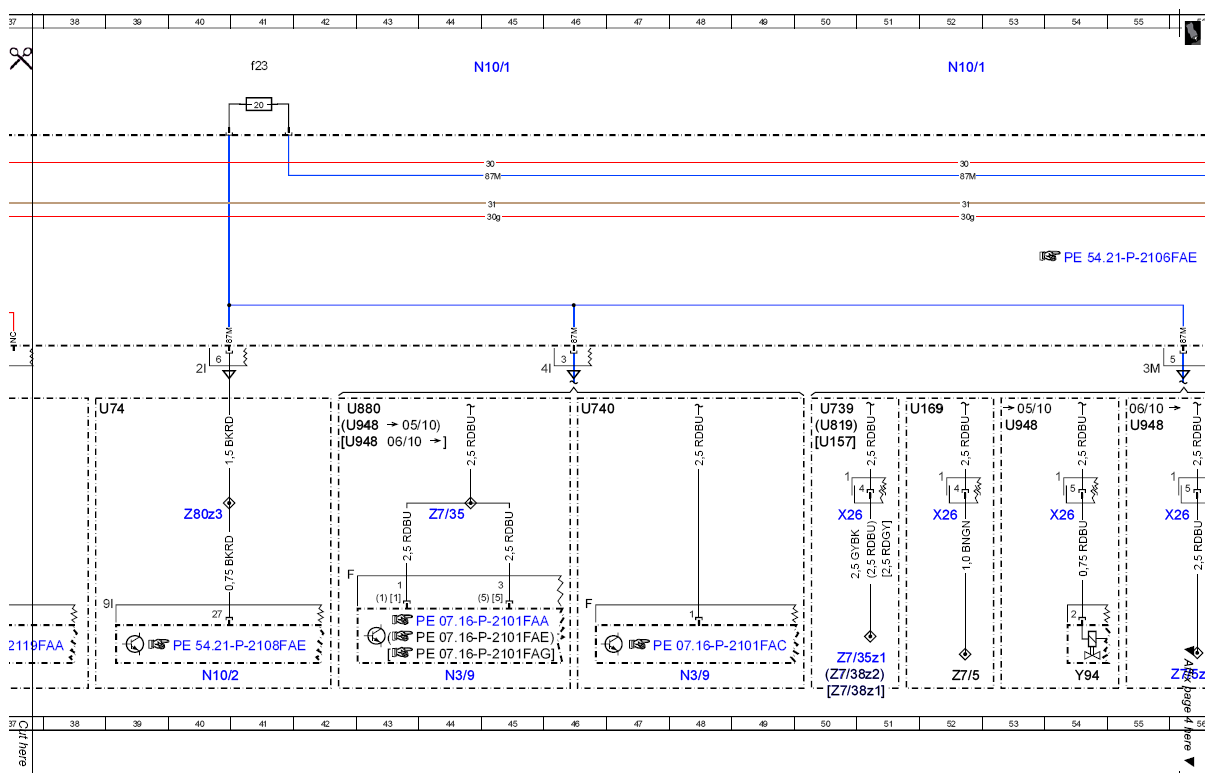

Fig 3: Front SAM Control Unit With Fuse And Relay Module - Wiring Diagram (3 Of 4)
G07674025Courtesy of MERCEDES-BENZ USA

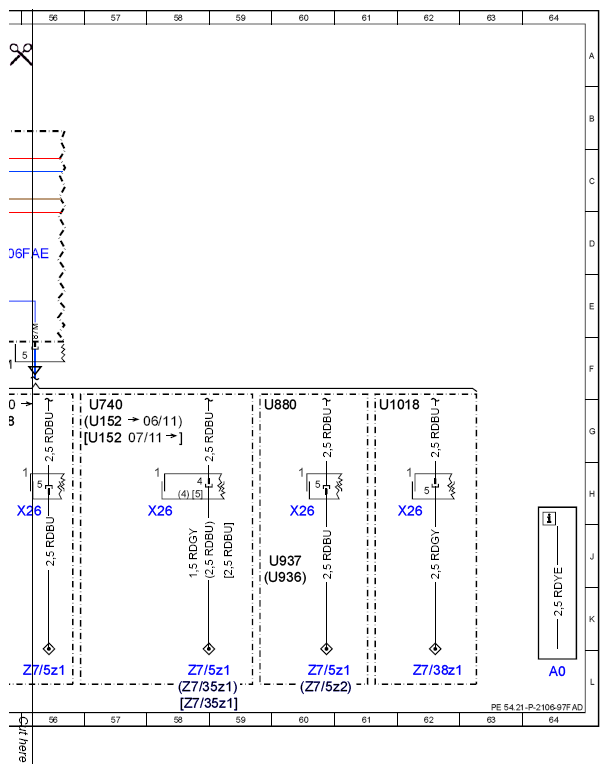

Fig 4: Front SAM Control Unit With Fuse And Relay Module - Wiring Diagram (4 Of 4)
G07674026Courtesy of MERCEDES-BENZ USA
