Electrical function schematic, alternator interface ME - PE07.61-P-2755-97FAB

Code:	Designation:	Position:
1	Alternator, request	4C
2	Alternator, status	4D
3	Circuit 61, status	4D
4	Instrument cluster, message	4J
A1	Instrument cluster	3J
B70	Crankshaft Hall sensor	6F
CAN E	Chassis CAN	4H
G2	Alternator	4A
LIN C1	Drive train LIN	4C
N3/10	ME-SFI [ME] control unit	3E

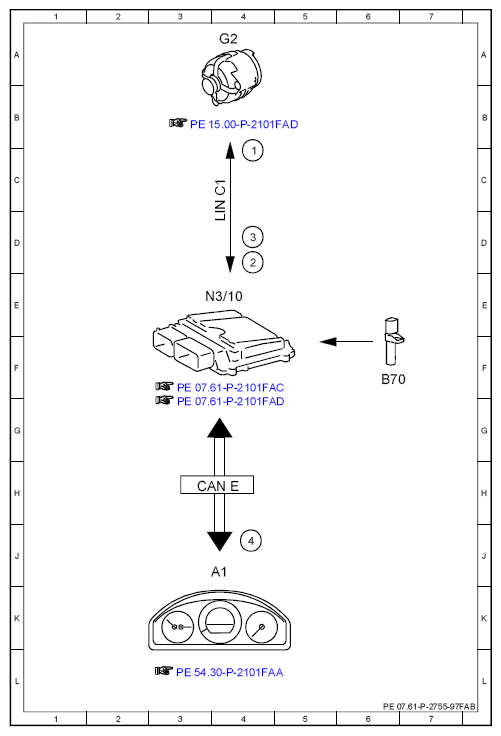

Fig 1: Alternator Interface ME - Electrical Function Schematic

Courtesy of MERCEDES-BENZ USA
