Rear lamp unit, component description - GF82.10-P-2018CW

MODEL 204.0 /2 up to Model Year 8

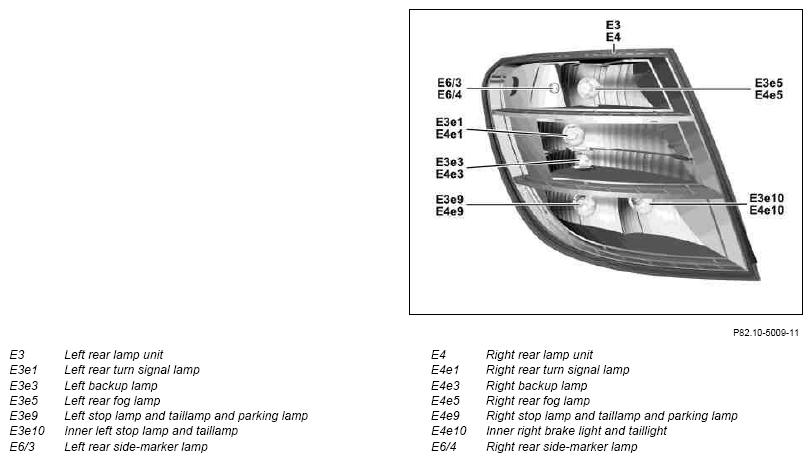

Vehicle without code (614) Bi-xenon headlamp unit and without code (622) Intelligent Light System (right-hand traffic), shown on model 204.0

Fig 1: Identifying Rear Lamp Unit - Vehicle Without Code (614) Bi-Xenon Headlamp Unit And Without Code (622) Intelligent Light System (Right-Hand Traffic)

Courtesy of MERCEDES-BENZ USA

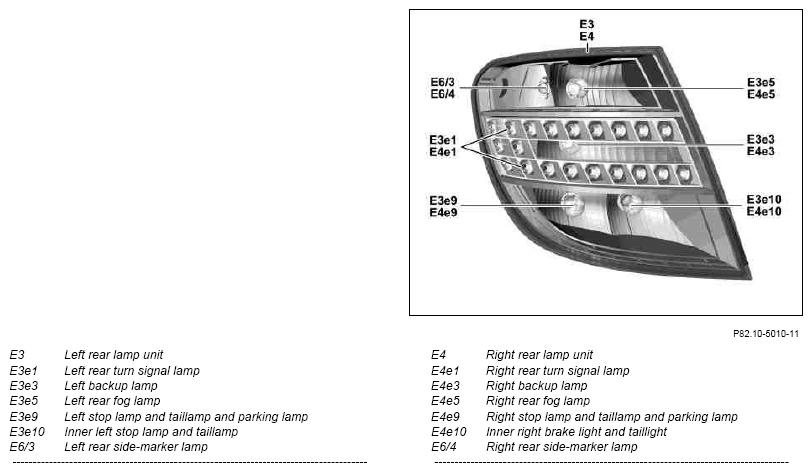

Vehicle with code (614) Bi-xenon headlamp unit or with code (622) Intelligent Light System (right-hand traffic), shown on model 204.0

Fig 2: Identifying Rear Lamp Unit - Vehicle With Code (614) Bi-Xenon Headlamp Unit Or With Code (622) Intelligent Light System (Right-Hand Traffic)

Courtesy of MERCEDES-BENZ USA

Location

The rear lamp units are located on the left and right of the vehicle rear.

Design

A distinction is made between two variants of rear lamp units. The functionality of the two variants is identical, though.

On vehicles without code (614) Bi-xenon headlamp unit and without code (622) Intelligent Light System (right-hand traffic), the turn signal lights are designed as bulbs.

On vehicles with code (614) Bi-xenon headlamp unit or with code (622) Intelligent Light System (right-hand traffic), the turn signal lights are designed as yellow light-emitting diodes, which symbolize a C open towards the inside.

The rear lamp units are actuated by the rear SAM control unit with fuse and relay module (N10/2).
