Remove/install outside mirror trim - AR88.70-P-9040CW

MODEL 204.### #A up to 213186

MODEL 204.### #F up to 231782

MODEL 204.### #R up to 048422

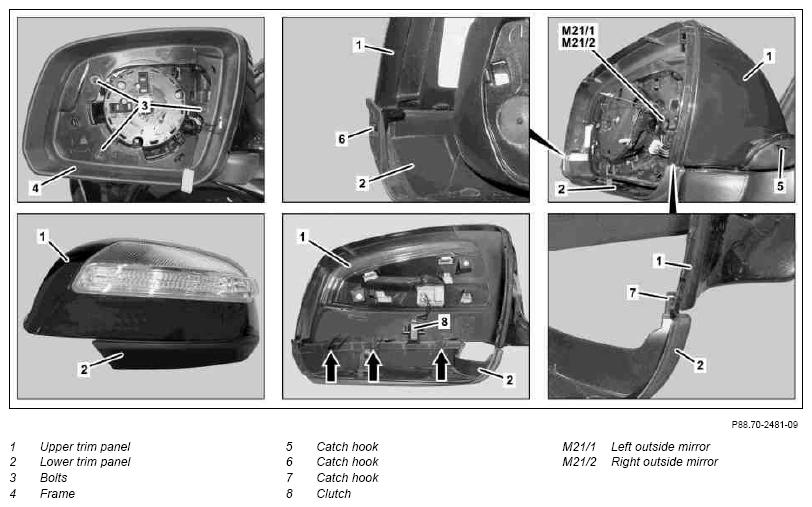

Fig 1: Identifying Outside Mirror Trim Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove mirror glass		AR88.70-P-9020CW
2	Remove bolts (3) and remove frame (4)
3	Fold left outside mirror (M21/1) or right outside mirror (M21/2) down toward front
4	Disengage catch hook (5)	Disengage carefully, danger of breaking bottom paneling (2) in area of catch hook (5).
5	Unhook catch hook (6)	Unhook carefully, danger of breaking catch hook (6).
6	Unhook catch hook (7)	Unhook carefully, danger of breaking catch hook (7).
7	Remove top paneling (1) and bottom paneling (2) from left outside mirror (M21/1) or right outside mirror (M21/2)	Installation  : Ensure that top paneling (1) completely arrests in bottom paneling (2) (arrows). Ensure that the coupling (8) is connected properly with the connector on the left outside mirror (M21/1) or right outside mirror (M21/2).
8	Install in the reverse order
