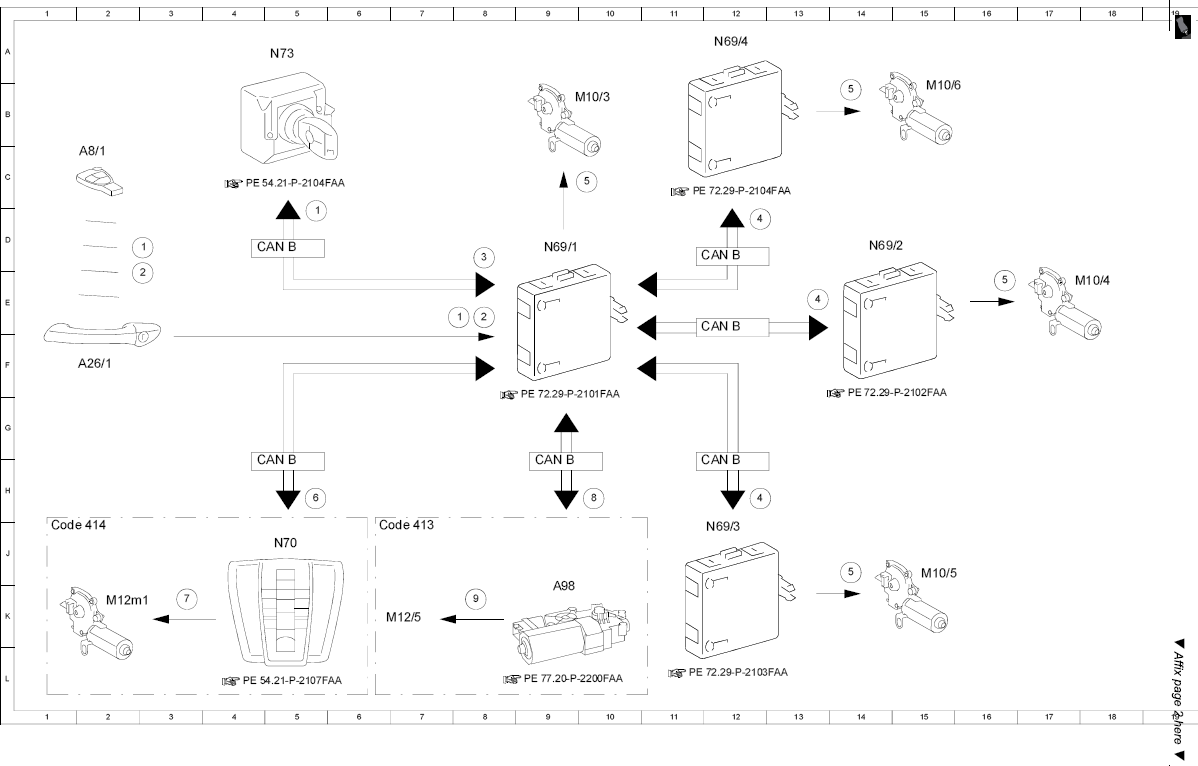

Electrical function schematic for convenience opening/closing with transmitter key - PE80.45-P-2052-99FAA
MODEL 204 up to model year 08/YoM 07
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Access authorization code, signal | 2 D |
| 1 | Access authorization code, signal | 5 D |
| 1 | Access authorization code, signal | 8 E |
| 2 | Comfort closing/opening, request | 2 E |
| 2 | Comfort closing/opening, request | 8 E |
| 3 | Enable comfort closing/opening, signal | 8 D |
| 4 | Power window motor, request | 12 H |
| 4 | Power window motor, request | 12 D |
| 4 | Power window motor, request | 13 E |
| 5 | Power window motor, actuation | 10 C |
| 5 | Power window motor, actuation | 14 J |
| 5 | Power window motor, actuation | 14 B |
| 5 | Power window motor, actuation | 16 E |
| 6 | Tilting/sliding roof motor, request | 5 H |
| 7 | Tilting/sliding roof motor, actuation | 3 K |
| 8 | Panoramic sliding sunroof motor, request | 10 H |
| 9 | Panoramic sliding roof roller sun blind drive unit, actuation | 8 K |
| A26/1 | Driver-side front door infrared remote control receiver | 2 F |
| A8/1 | Transmitter key | 2 C |
| A98 | Panoramic sliding roof control module | 9 K |
| CAN B | Interior CAN | 4 H |
| CAN B | Interior CAN | 4 D |
| CAN B | Interior CAN | 9 H |
| CAN B | Interior CAN | 11 D |
| CAN B | Interior CAN | 11 H |
| CAN B | Interior CAN | 11 F |
| Code 413 | Panoramic sliding sunroof | 6 J |
| Code 414 | Electric glass tilting/sliding roof | 1 J |
| M10/3 | Left front door power window motor | 9 B |
| M10/4 | Right front door power window motor | 17 E |
| M10/5 | Left rear door power window motor | 15 J |
| M10/6 | Right rear door power window motor | 15 B |
| M12/5 | Panoramic sliding roof roller sun blind drive unit | 6 K |
| M12m1 | Tilting/sliding roof motor | 2 K |
| N69/1 | Left front door control unit | 9 D |
| N69/2 | Right front door control unit | 14 D |
| N69/3 | Left rear door control unit | 11 J |
| N69/4 | Right rear door control unit | 12 A |
| N70 | Overhead control panel control unit | 5 J |
| N73 | Electronic ignition switch control unit | 5 A |
