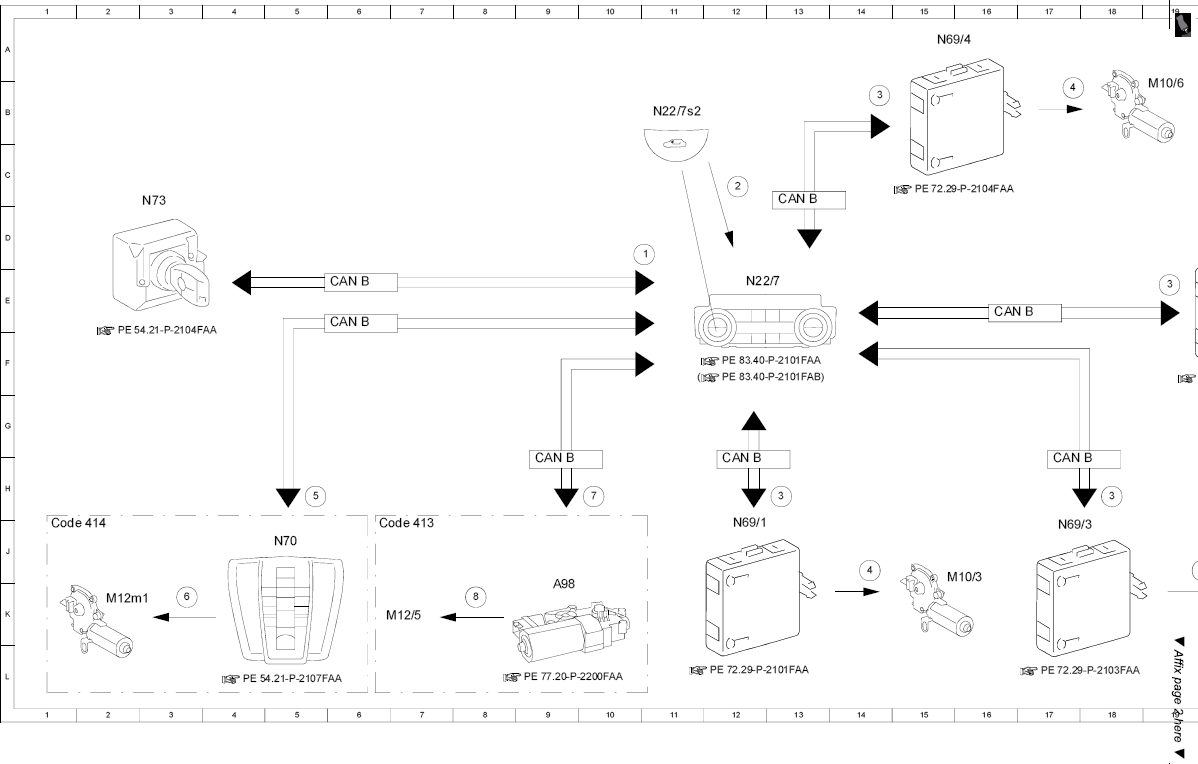

Electrical function schematic for convenience opening/closing via recirculated air function - PE80.45-P-2053-99FAA
MODEL 204 up to model year 08/YoM 07
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 10 D |
| 2 | Comfort closing/opening, request | 12 C |
| 3 | Power window motor, request | 13 H |
| 3 | Power window motor, request | 14 B |
| 3 | Power window motor, request | 18 H |
| 3 | Power window motor, request | 19 E |
| 4 | Power window motor, actuation | 14 J |
| 4 | Power window motor, actuation | 17 B |
| 4 | Power window motor, actuation | 19 J |
| 4 | Power window motor, actuation | 22 E |
| 5 | Tilting/sliding roof motor, request | 5 H |
| 6 | Tilting/sliding roof motor, actuation | 3 K |
| 7 | Panoramic sliding sunroof motor, request | 10 H |
| 8 | Panoramic sliding roof roller sun blind drive unit, actuation | 8 K |
| A98 | Panoramic sliding roof control module | 9 K |
| CAN B | Interior CAN | 6 E |
| CAN B | Interior CAN | 9 H |
| CAN B | Interior CAN | 12 H |
| CAN B | Interior CAN | 13 D |
| CAN B | Interior CAN | 16 E |
| CAN B | Interior CAN | 17 H |
| Code 413 | Panoramic sliding sunroof | 6 J |
| Code 414 | Electric glass tilting/sliding roof | 1 J |
| M10/3 | Left front door power window motor | 15 K |
| M10/4 | Right front door power window motor | 23 E |
| M10/5 | Left rear door power window motor | 21 J |
| M10/6 | Right rear door power window motor | 19 B |
| M12/5 | Panoramic sliding roof roller sun blind drive unit | 6 K |
| M12m1 | Tilting/sliding roof motor | 2 K |
| N22/7 | Automatic air conditioning control and operating unit | 12 E |
| N22/7s2 | Air recirculation mode button | 11 B |
| N69/1 | Left front door control unit | 12 J |
| N69/2 | Right front door control unit | 20 D |
| N69/3 | Left rear door control unit | 17 J |
| N69/4 | Right rear door control unit | 15 A |
| N70 | Overhead control panel control unit | 5 J |
| N73 | Electronic ignition switch control unit | 3 D |
