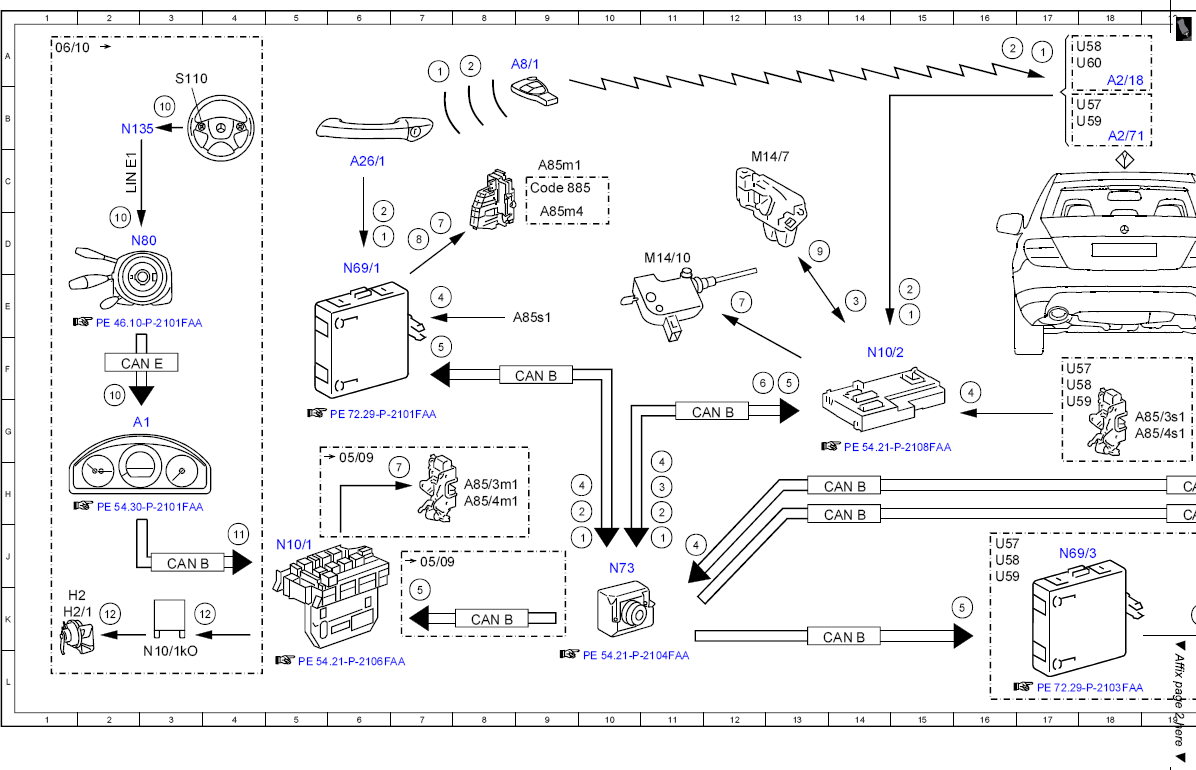

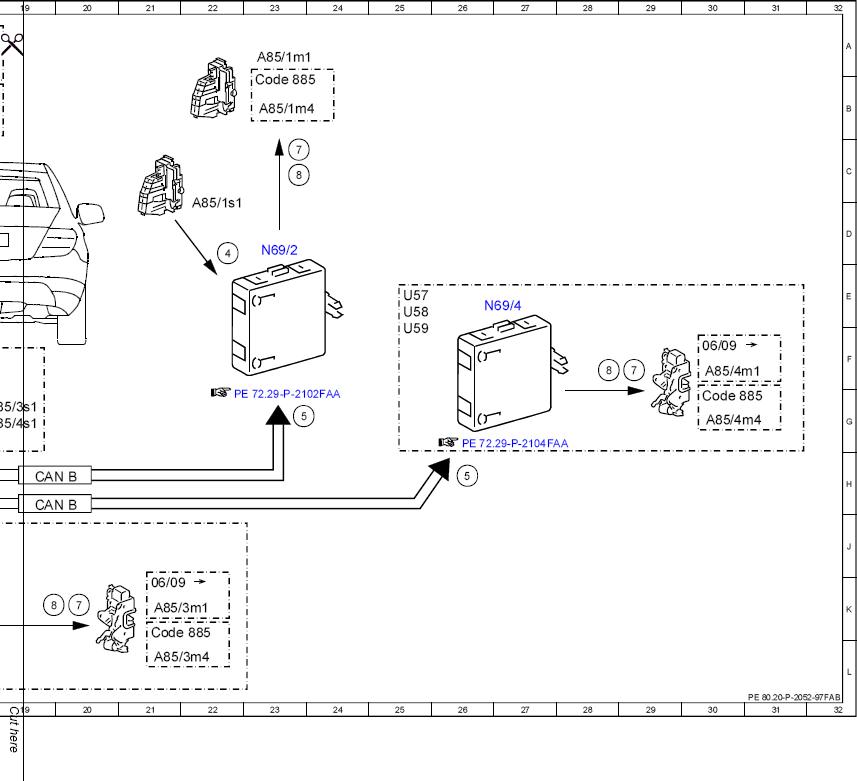

Electrical function schematic for central locking, operation with transmitter key - PE80.20-P-2052-97FAB
MODEL 204.0 /2 as of model year 2009 /YoM 08 MODEL 204.3 MODEL 204.9
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Lock/unlock central locking, request | 10J |
| 1 | Lock/unlock central locking, request | 11J |
| 1 | Lock/unlock central locking, request | 6D |
| 1 | Lock/unlock central locking, request | 7A |
| 1 | Lock/unlock central locking, request | 15E |
| 1 | Lock/unlock central locking, request | 17A |
| 10 | Multifunction steering wheel button group, signal | 2F |
| 10 | Multifunction steering wheel button group, signal | 2D |
| 10 | Multifunction steering wheel button group, signal | 3B |
| 11 | Fanfare horns, request | 4J |
| 12 | Fanfare horns, actuation | 3K |
| 12 | Fanfare horns, actuation | 2K |
| 2 | Access authorization code, signal | 10H |
| 2 | Access authorization code, signal | 11H |
| 2 | Access authorization code, signal | 6D |
| 2 | Access authorization code, signal | 8A |
| 2 | Access authorization code, signal | 15E |
| 2 | Access authorization code, signal | 16A |
| 3 | Rotary tumbler switch, status | 11H |
| 3 | Rotary tumbler switch, status | 14E |
| 4 | Door rotary tumbler switch, status | 10H |
| 4 | Door rotary tumbler switch, status | 7E |
| 4 | Door rotary tumbler switch, status | 11H |
| 4 | Door rotary tumbler switch, status | 22D |
| 4 | Door rotary tumbler switch, status | 16F |
| 4 | Door rotary tumbler switch, status | 11J |
| 5 | Open/close central locking, request | 13F |
| 5 | Open/close central locking, request | 7F |
| 5 | Open/close central locking, request | 16K |
| 5 | Open/close central locking, request | 26H |
| 5 | Open/close central locking, request | 23G |
| 5 | Open/close central locking, request | 7K |
| 6 | Open trunk lid, request | 12F |
| 7 | Central locking motor, actuation | 20K |
| 7 | Central locking motor, actuation | 7D |
| 7 | Central locking motor, actuation | 29F |
| 7 | Central locking motor, actuation | 23C |
| 7 | Central locking motor, actuation | 7H |
| 7 | Central locking motor, actuation | |
| 8 | Additional door lock actuator motor, actuation | 19K |
| 8 | Additional door lock actuator motor, actuation | 7D |
| 8 | Additional door lock actuator motor, actuation | 28F |
| 8 | Additional door lock actuator motor, actuation | 23C |
| 9 | Trunk lid central locking motor, actuation | 13D |
| A1 | Instrument cluster | 2G |
| A2/18 | FM, AM and CL [ZV] antenna amplifier | 18A |
| A2/71 | Rear window antenna amplifier 1 | 18B |
| A26/1 | Driver-side front door infrared remote control receiver | 6C |
| A8/1 | Transmitter key | 9A |
| A85/1m1 | Right front door central locking motor | 23A |
| A85/1m4 | Right front door additional door lock actuator motor | 23B |
| A85/1s1 | Right front door rotary tumbler switch | 22D |
| A85/3m1 | Left rear door central locking motor | 21K |
| A85/3m1 | Left rear door central locking motor | 8H |
| A85/3m4 | Left rear door additional door lock actuator motor | 21L |
| A85/3s1 | Left rear door rotary tumbler switch | 19G |
| A85/4m1 | Right rear door central locking motor | 8H |
| A85/4m1 | Right rear door central locking motor | 30F |
| A85/4m4 | Right rear door additional door lock actuator motor | 30G |
| A85/4s1 | Right rear door rotary tumbler switch | 19G |
| A85m1 | Left front door central locking motor | 9C |
| A85m4 | Left front door additional door lock actuator motor | 9D |
| A85s1 | Left front door rotary tumbler switch | 8E |
| CAN B | Interior CAN | 14K |
| CAN B | Interior CAN | 12G |
| CAN B | Interior CAN | 14H |
| CAN B | Interior CAN | 14H |
| CAN B | Interior CAN | 19H |
| CAN B | Interior CAN | 9F |
| CAN B | Interior CAN | 8K |
| CAN B | Interior CAN | 3J |
| CAN B | Interior CAN | 19H |
| CAN E | Chassis CAN | 2F |
| Code 885 | Increased theft protection | 9C |
| Code 885 | Increased theft protection | 21K |
| Code 885 | Increased theft protection | 23B |
| Code 885 | Increased theft protection | 30G |
| H2 | Left fanfare horn | 1K |
| H2/1 | Right fanfare horn | 1K |
| LIN E1 | Steering LIN | 2C |
| M14/10 | Tank cap central locking motor | 11D |
| M14/7 | Trunk lid central locking motor | 12C |
| N10/1 | Front SAM control unit with fuse and relay module | 5J |
| N10/1kO | Fanfare horn relay | 3L |
| N10/2 | Rear SAM control unit with fuse and relay module | 14F |
| N135 | Steering wheel electronics | 2B |
| N69/1 | Left front door control unit | 6D |
| N69/2 | Right front door control unit | 23D |
| N69/3 | Left rear door control unit | 17J |
| N69/4 | Right rear door control unit | 27E |
| N73 | Electronic ignition switch control unit | 10J |
| N80 | Steering column module control unit | 2D |
| S110 | Left multifunction steering wheel button group | 3A |
| U57 | Valid for model 204.2 | 17B |
| U57 | Valid for model 204.2 | 17F |
| U57 | Valid for model 204.2 | 16J |
| U57 | Valid for model 204.2 | 25E |
| U58 | Valid for model 204.0 | 17A |
| U58 | Valid for model 204.0 | 17F |
| U58 | Valid for model 204.0 | 16J |
| U58 | Valid for model 204.0 | 25E |
| U59 | Valid for model 204.9 | 17B |
| U59 | Valid for model 204.9 | 17G |
| U59 | Valid for model 204.9 | 16J |
| U59 | Valid for model 204.9 | 25F |
| U60 | Valid for model 204.3 | 17A |
