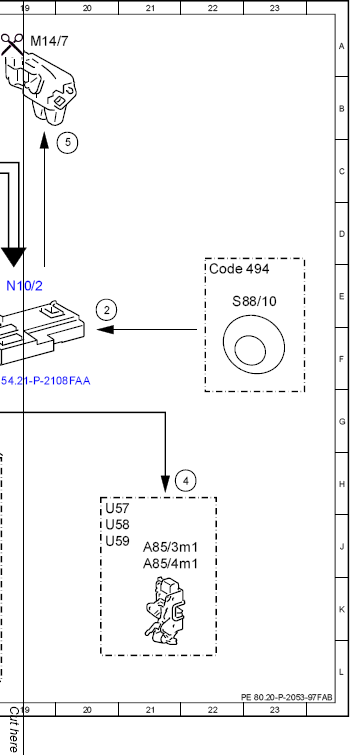

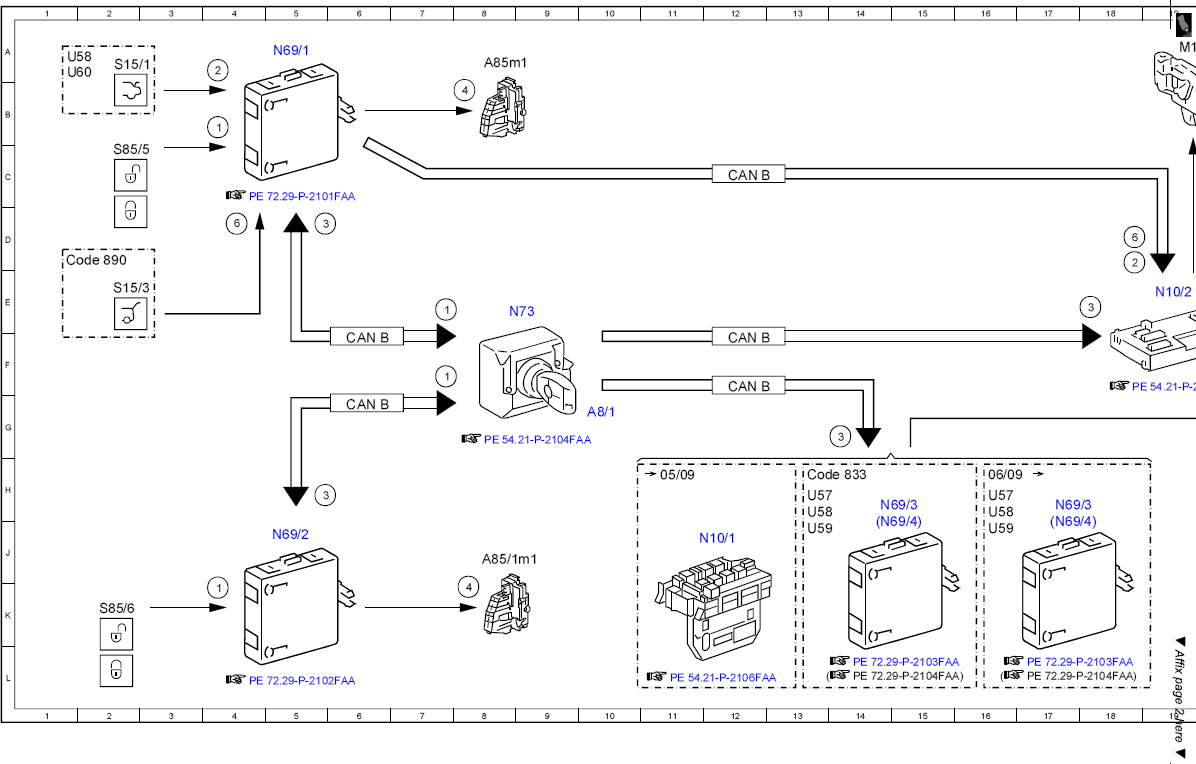

Electrical function schematic for central locking with interior switch, locking and unlocking - PE80.20-P-2053-97FAB
MODEL 204.0 /2 as of model year 2009 /YoM 08 MODEL 204.3 MODEL 204.9
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Lock/unlock central locking, request | 4K |
| 1 | Lock/unlock central locking, request | 7F |
| 1 | Lock/unlock central locking, request | 4B |
| 1 | Lock/unlock central locking, request | 7E |
| 2 | Open trunk lid, request | 4A |
| 2 | Open trunk lid, request | 18D |
| 2 | Open trunk lid, request | 20E |
| 3 | Open/close central locking, request | 5H |
| 3 | Open/close central locking, request | 5D |
| 3 | Open/close central locking, request | 18E |
| 3 | Open/close central locking, request | 14G |
| 4 | Central locking motor, actuation | 8K |
| 4 | Central locking motor, actuation | 8B |
| 4 | Central locking motor, actuation | 22H |
| 5 | Trunk lid central locking motor, actuation | 20C |
| 6 | Open tailgate, request | 18D |
| 6 | Open tailgate, request | 4D |
| A8/1 | Transmitter key | 10G |
| A85/1m1 | Right front door central locking motor | 8J |
| A85/3m1 | Left rear door central locking motor | 21J |
| A85/4m1 | Right rear door central locking motor | 21J |
| A85m1 | Left front door central locking motor | 8A |
| CAN B | Interior CAN | 12F |
| CAN B | Interior CAN | 12C |
| CAN B | Interior CAN | 6G |
| CAN B | Interior CAN | 6F |
| CAN B | Interior CAN | 12F |
| Code 494 | USA version | 22E |
| Code 833 | Great Britain version | 13H |
| Code 890 | Tailgate control | 1D |
| M14/7 | Trunk lid central locking motor | 19A |
| N10/1 | Front SAM control unit with fuse and relay module | 12J |
| N10/2 | Rear SAM control unit with fuse and relay module | 19E |
| N69/1 | Left front door control unit | 5A |
| N69/2 | Right front door control unit | 5J |
| N69/3 | Left rear door control unit | 14H |
| N69/3 | Left rear door control unit | 17H |
| N69/4 | Right rear door control unit | 14J |
| N69/4 | Right rear door control unit | 17J |
| N73 | Electronic ignition switch control unit | 8E |
| S15/1 | Trunk lid release button | 2A |
| S15/3 | Driver trunk lid/liftgate control button | 2E |
| S85/5 | Left front door central locking interior switch | 2C |
| S85/6 | Right front door central locking interior switch | 2K |
| S88/10 | Trunk lid emergency opening switch | 23E |
| U57 | Valid for model 204.2 | 13H |
| U57 | Valid for model 204.2 | 16H |
| U57 | Valid for model 204.2 | 20H |
| U58 | Valid for model 204.0 | 1A |
| U58 | Valid for model 204.0 | 13H |
| U58 | Valid for model 204.0 | 16H |
| U58 | Valid for model 204.0 | 20J |
| U59 | Valid for model 204.9 | 13J |
| U59 | Valid for model 204.9 | 16J |
| U59 | Valid for model 204.9 | 20J |
| U60 | Valid for model 204.3 | 1A |
