Overview of system components for theft protection and locking - GF80.00-P-9999CE

MODEL 204.0/2 as of model year 2009/YoM 08

MODEL 204.3

MODEL 204.9

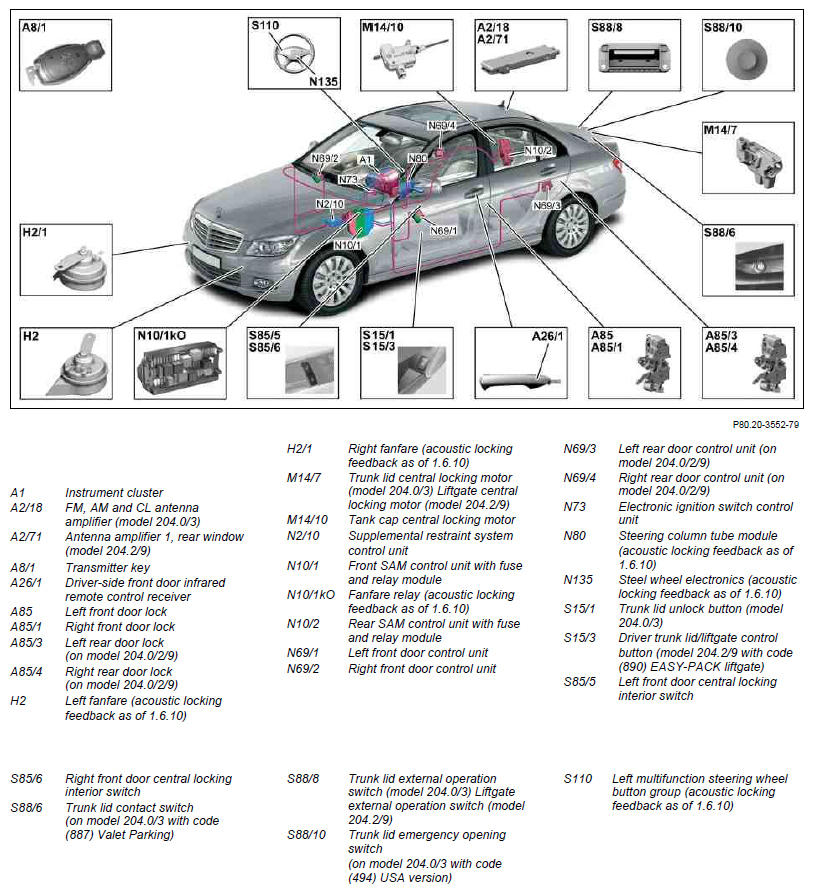

Central locking shown on model 204.0

Fig 1: Identifying Theft Protection And Locking System Components - (Central Locking)

Courtesy of MERCEDES-BENZ USA

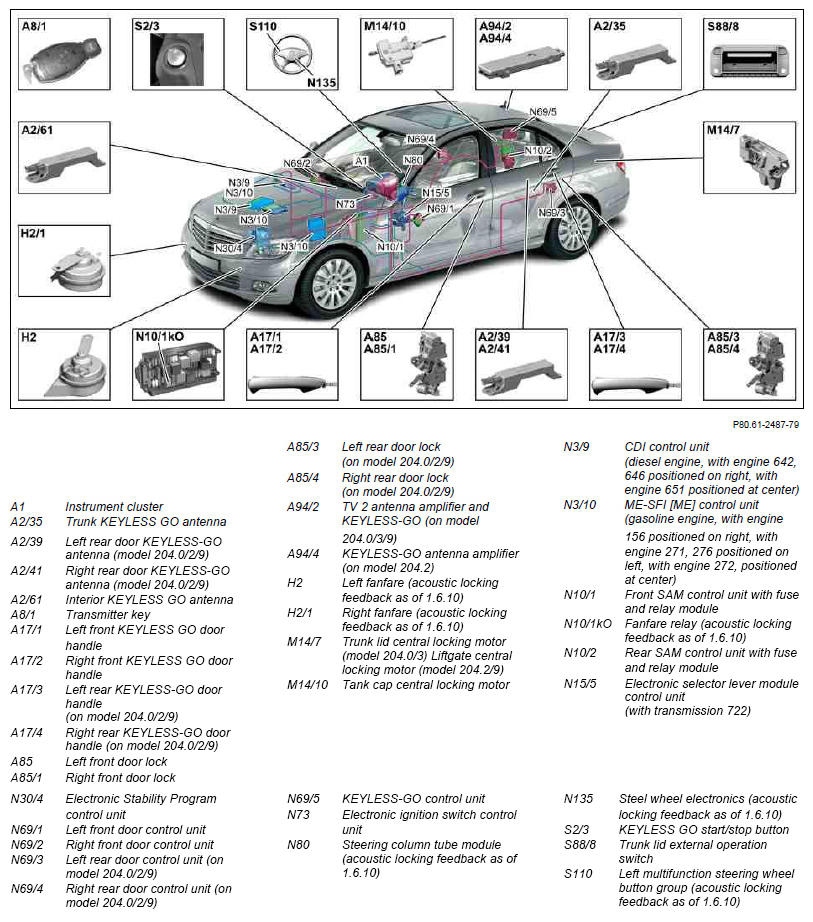

KEYLESS-GO (with code (889) KEYLESS-GO), shown on model 204.0

Fig 2: Identifying KEYLESS-GO System Components

Courtesy of MERCEDES-BENZ USA

On model 204.3 the left door KEYLESS-GO antenna (A2/38) and right door KEYLESS-GO antenna (A2/40) take over the functions of the corresponding KEYLESS-GO antenna, installed in the rear doors on model 204.0/2/9.

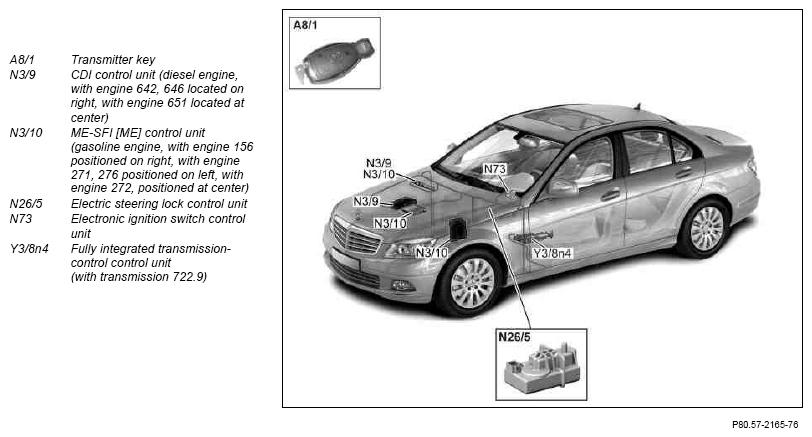

Drive authorization system (DAS [FBS]), Shown on model 204.0

Fig 3: Identifying Drive Authorization System Components

Courtesy of MERCEDES-BENZ USA

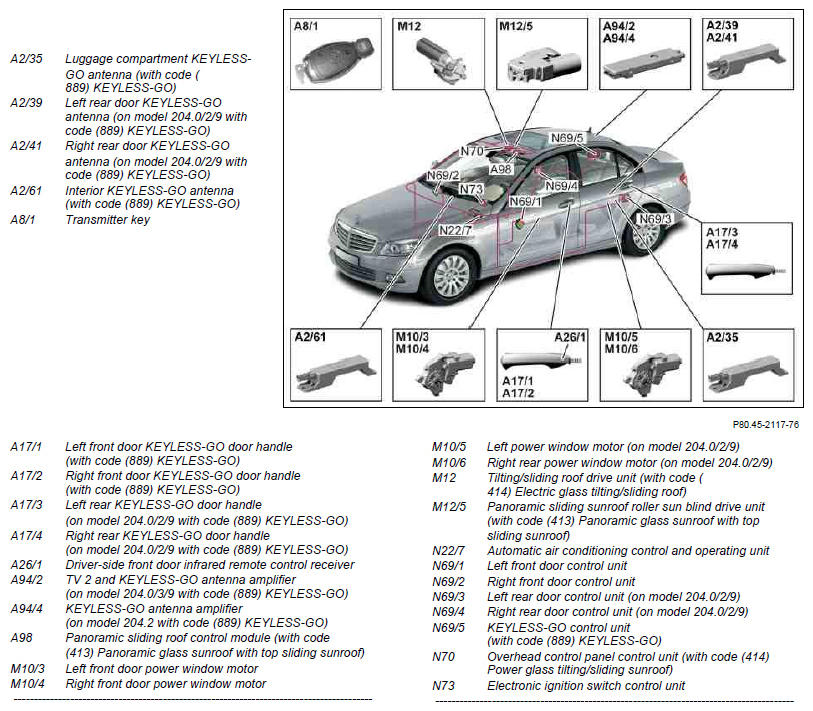

Convenience feature (CF) Shown on model 204.0

Fig 4: Identifying Convenience Feature System Components

Courtesy of MERCEDES-BENZ USA

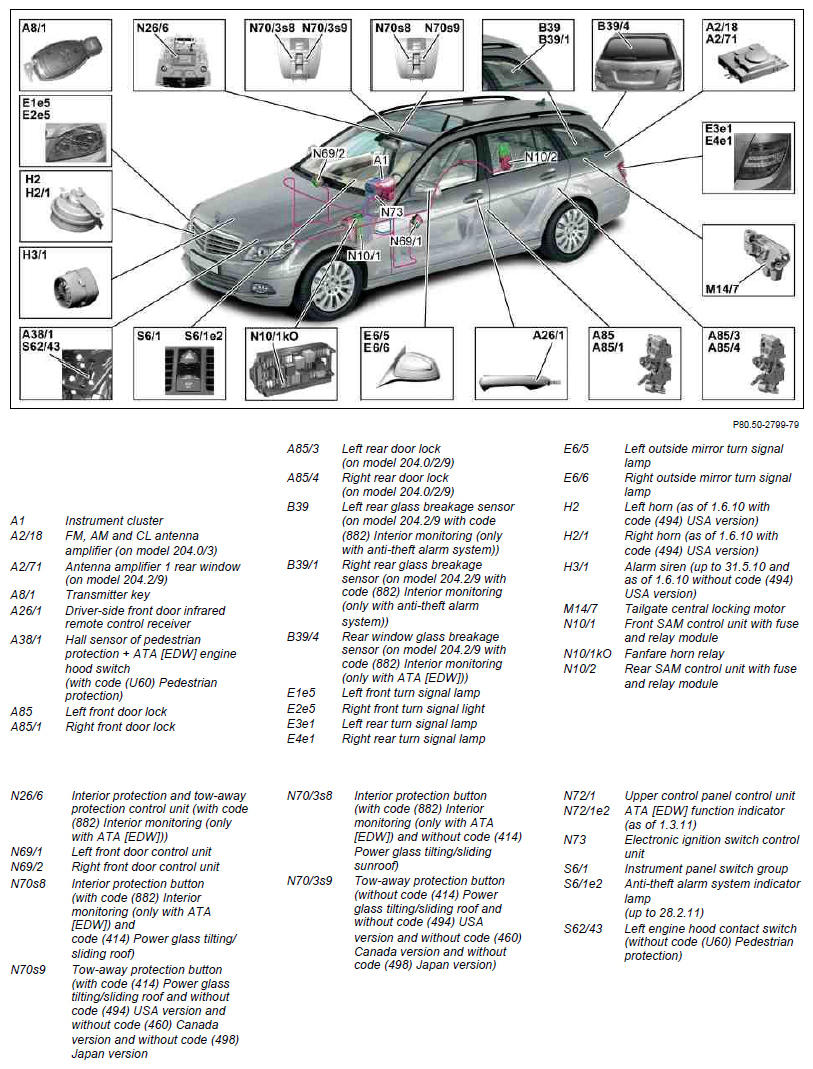

Anti-theft alarm system (ATA [EDW]) (with code (551) Anti-theft alarm system (ATA [EDW])), shown on model 204.2

Fig 5: Identifying Anti-Theft Alarm System Components

Courtesy of MERCEDES-BENZ USA

Component description for instrument cluster	A1	GF54.30-P-6000CE
Component description for panoramic sliding roof control module	A98 with code (413) Panoramic glass sunroof with top sliding sunroof	GF77.20-P-4106CE
Component description for supplemental restraint system control unit	N2/10	GF91.60-P-4068CE
Component description for CDI control unit	N3/9 With engine 642.8 in model 204.0/2/9	GF07.16-P-6000OG
Component description for ME-SFI [ME] control unit	N3/10 With engine 156 in model 204.0/2	GF07.61-P-6000MAW
	With engine 272.9 (except 272.982) in model 204.0/2/9	GF07.61-P-6000MI
Component description for front SAM control unit with fuse and relay module	N10/1	GF54.21-P-6070CE
Component description for rear SAM control unit with fuse and relay module	N10/2	GF54.21-P-6030CE
Component description for electronic selector lever module control unit	N15/5 With transmission 722.9	GF27.60-P-5163AHW
Component description for automatic air conditioning control and operating unit	N22/7 Without code (581) Comfort automatic air conditioning	GF83.40-P-3000CEA
	with code (581) Comfort automatic air conditioning	GF83.40-P-3000CEB
Component description for Electronic Stability Program control unit	N30/4	GF42.45-P-5119CE
Component description for left front door control unit	N69/1	GF72.29-P-6001CE
Component description for right front door control unit	N69/2	GF72.29-P-6009CE
Component description for rear door control unit	N69/3, N69/4 In model 204.0/2/9	GF72.29-P-6021CE
Component description for KEYLESS-GO control unit	N69/5 with code (889) KEYLESS-GO	GF80.61-P-4204CE
Component description for overhead control panel control unit	N70 Model 204.0/2 with code (414) Electric glass tilting/sliding roof	GF82.20-P-5216CE
Component description for electronic overhead control panel	N70/3 With model 204.0/2 without code (414) Power glass tilting/sliding roof Model 204.3/9	GF82.20-P-5217CE
Component description for the electronic ignition lock control unit	N73	GF80.57-P-6001CE
Component description for steering column tube module control unit	N80	GF54.21-P-6051CE
Liftgate control unit, component description	N121/1 With model 204.2/9 with code (890) EASY-PACK liftgate	GF80.20-P-6082CE
Component description for fully integrated transmission control unit	Y3/8n4 With transmission 722.9	GF27.60-P-5165AHW
Table of contents for function description of theft protection and locking		GF80.00-P-0999CE
