Keyless Go, function (MODEL 204.0/2 with CODE (889) Keyless Go up to Model Year 8) - GF80.61-P-0005CW
MODEL 204.0/2 with CODE (889) Keyless Go up to Model Year 8
General information
The Keyless Go system (KG) allows access to the vehicle and starting the vehicle engine without using the transmitter key (A8/1). It is sufficient to just carry the transmitter key
Operation of the central locking (CL) via the transmitter key remains possible parallel to the Keyless Go functions.
The KG system allows the follow partial functions:
- Transmitter key position finding
- Locking/unlocking CL
- Starting and stopping engine
The anti-theft alarm system (ATA) (with code (551) Anti-theft alarm system (ATA)) functions in the same manner as when locking/unlocking the CL with the transmitter key.

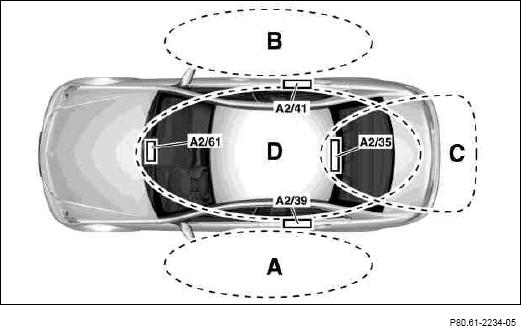

Position determination of transmitter key (shown on model 204.0)
A position determination of the transmitter key is required for the individual functions. When the
- left rear door KEYLESS GO antenna (A2/39),
- right rear door KEYLESS GO antenna (A2/41),
- trunk KEYLESS GO antenna (A2/35) and
- interior Keyless Go antenna (A2/61) are activated by the Keyless Go system, the transmitter key can determine the area (A, B, C or D) in which it is located.
The determined position is transmitted by the transmitter key via radio signal. The TV 2 and KEYLESS GO antenna amplifier (A94/2) edits the signal and relays it to the KEYLESS GO control unit (N69/5).
| Keyless Go, location of components | GF80.61-P-0005-01CW |
| Keyless Go, block diagram | GF80.61-P-0005-02CW |
| Locking/unlocking, function | GF80.61-P-2008CW |
| Engine start/stop, function | GF80.61-P-3012CW |
